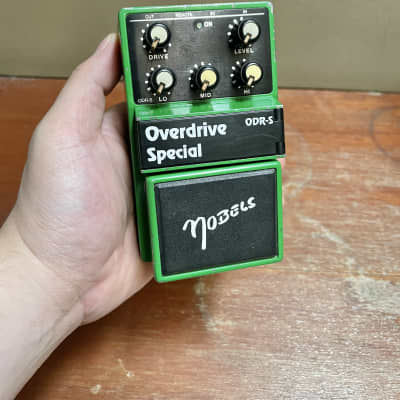

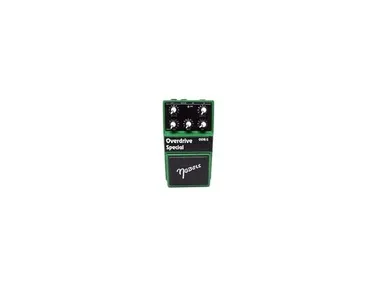

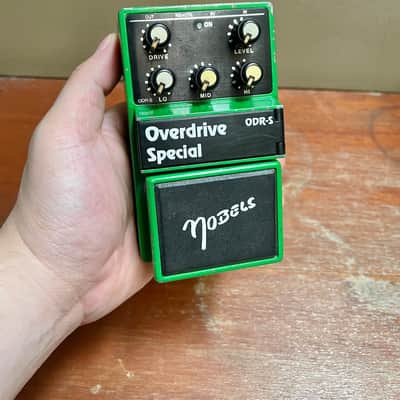

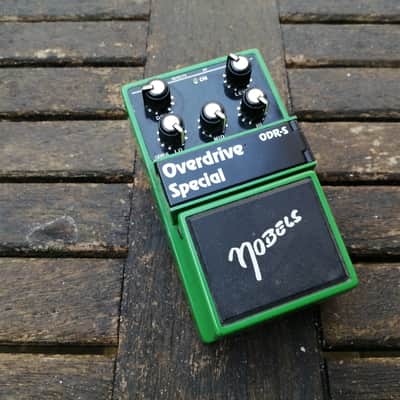

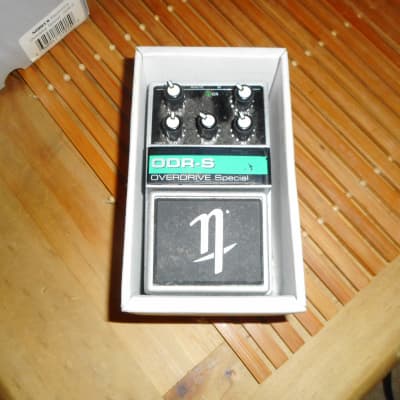

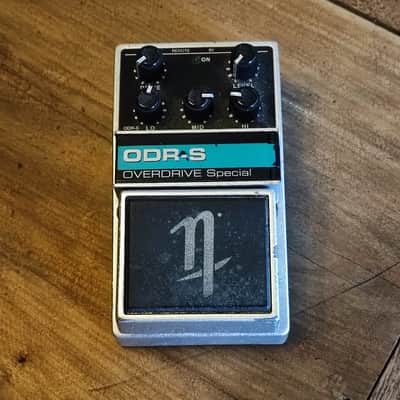

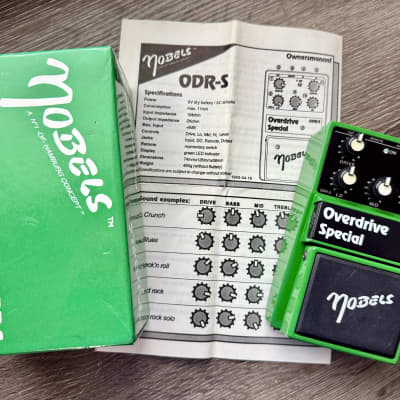

ODR-S Overdrive Special

The Nobels ODR-S Overdrive Special is a versatile overdrive pedal with specific technical specifications and features. Here are the details:

- Model: ODR-S Overdrive Special

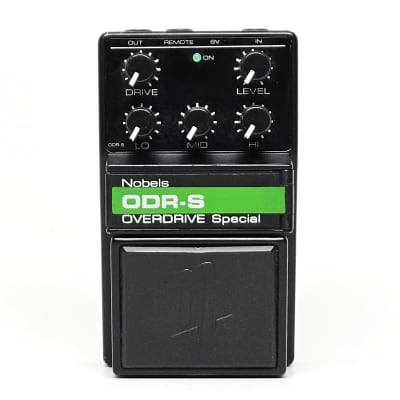

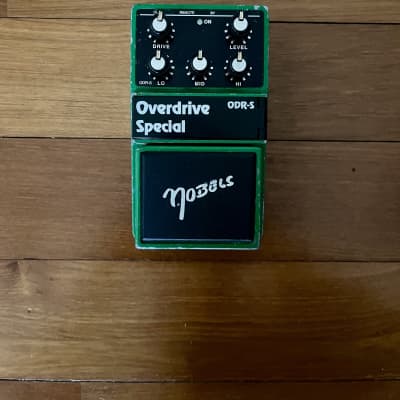

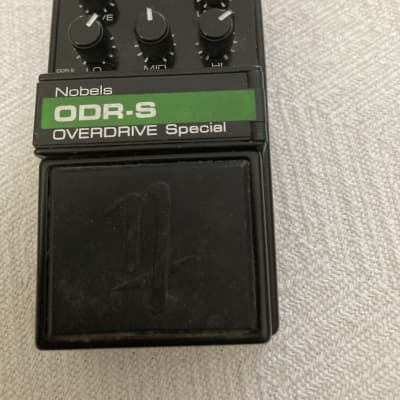

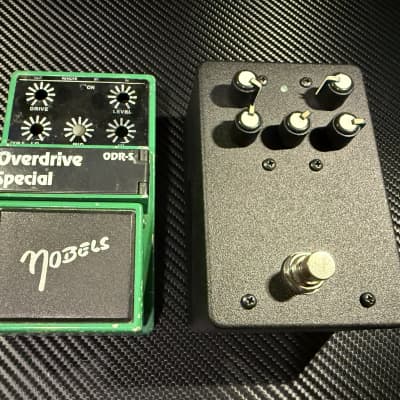

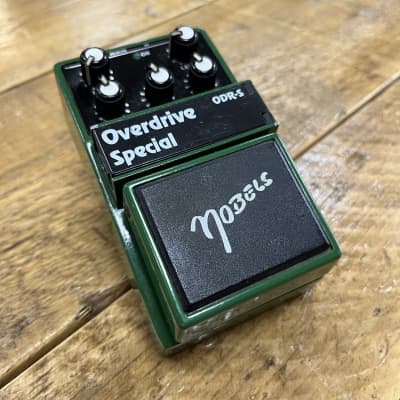

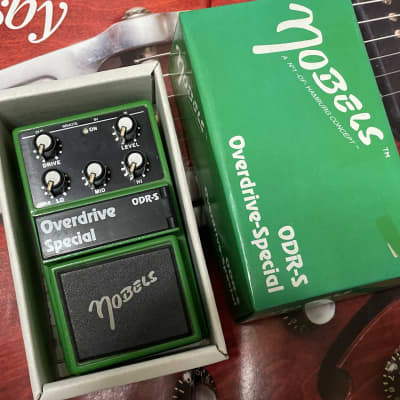

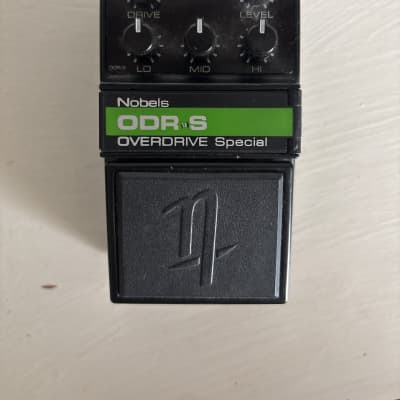

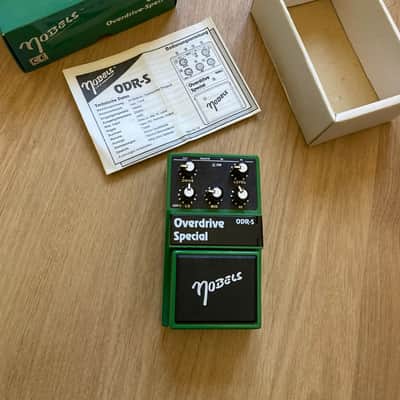

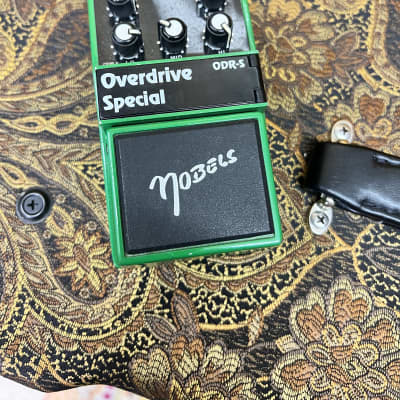

- Finish: Available in green (1990s) and black (2010s)
- Made In: Germany
- Power: Operates on a 9V battery or electrically stabilized power supply 9V-12V DC, minimum 100 mA, 2.1mm plug, tip negative
- Controls: Features Drive, Tone, and Level controls
- Effect-Type: Overdrive
- Bypass Mode: True Bypass
- Input: Standard 1/4" input
- Output: Standard 1/4" output
- Design: The ODR-S is based on the circuit of the ODR-1, with modifications and enhancements to the overdrive section, including the use of silicon and germanium diodes for soft-clipping and hard-clipping, respectively
- EQ Section: Equipped with a 3-band EQ (Low, Mid, High) with a standard Baxandall circuit for bass and treble control, and a mid control in the form of a gyrator
- Output Filter: Adapted output filter to adjust frequencies and provide sufficient output signal
- Functionality: Offers a more driven sound compared to the ODR-1, with a rounded and versatile tone that can be adjusted to achieve a range of overdrive effects
