one control sonic blue twanger

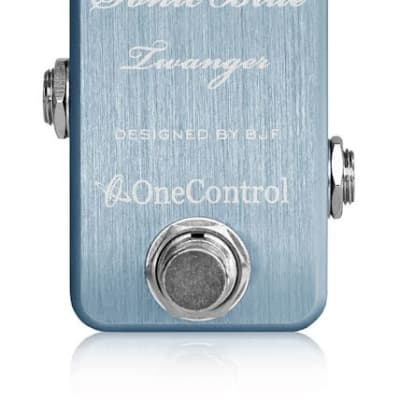

The One Control Sonic Blue Twanger (OC-SBTn) is a versatile distortion pedal designed to provide rhythm guitarists with an edge and lead guitarists with a limiting distortion effect similar to the iconic 'blackface' amps. Here are the technical specifications and features:

- Input impedance: 500K
- Output impedance: 6K
- Drive voltage: 9V
- Current consumption: 2.5mA @ 9V
- S/N ratio: -80db rhythm / -74 db lead
- Size: 39Wx100Dx31H mm (excluding protruding parts), 47Wx100Dx46H mm (including protruding parts)
- Weight: Approx. 160 grams
- True-Bypass Switching
- High-Quality Aluminum Enclosure
- Power: 9V Battery or Standard DC Power Supply

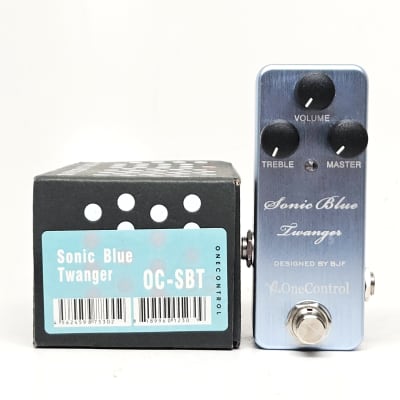

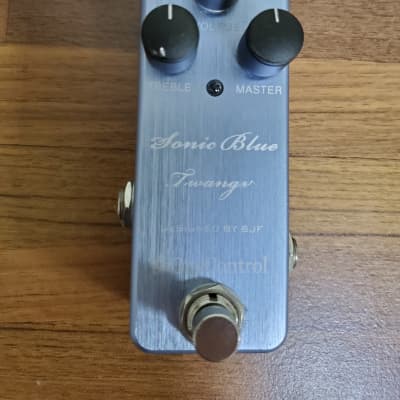

The pedal features four simple controls designed by BJF. The Treble control functions as a tone balance, similar to the original amplifiers, allowing users to adjust a 'shelved' EQ setting. The Volume and Master controls act as pre and post volumes, enabling variation in the amount of clean headroom and distortion in the signal. Additionally, a Rhythm/Lead switch provides about 18dB of gain (-80dB noise level) in Rhythm mode and about 40dB of gain (-74 dB noise level) in Lead mode.

The Sonic Blue Twanger can be used as a preamp with other BJF overdrive or distortion pedals or as a stand-alone effect to achieve a classic American sound reminiscent of the 'blackface' era.

The pedal's compact design and versatile controls make it suitable for various use-cases, including live performances and studio recordings, offering a recognizable and mesmerizing tone for guitarists.
