ABY pedal

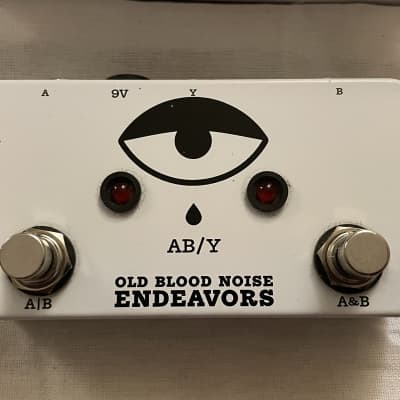

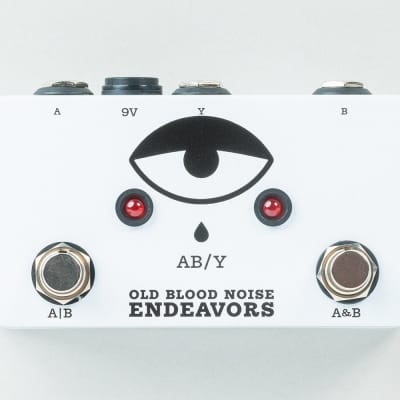

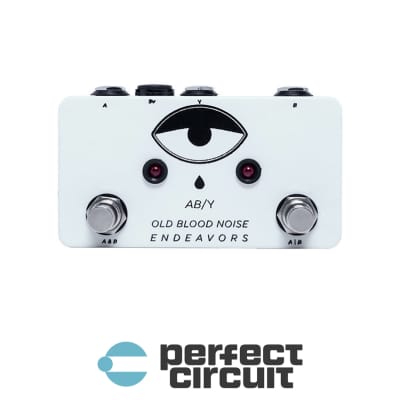

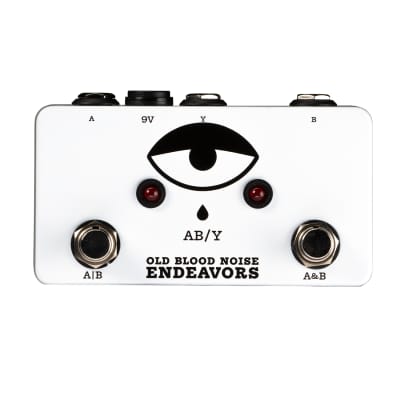

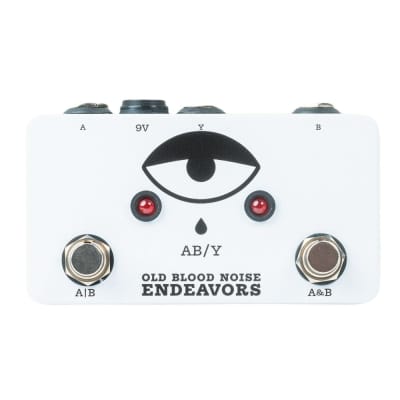

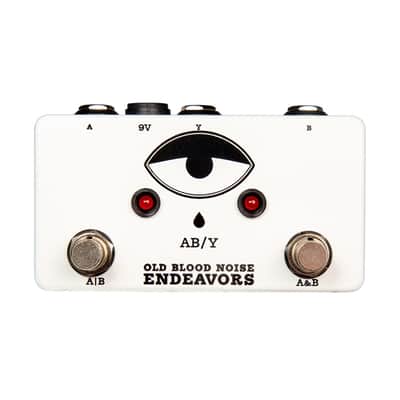

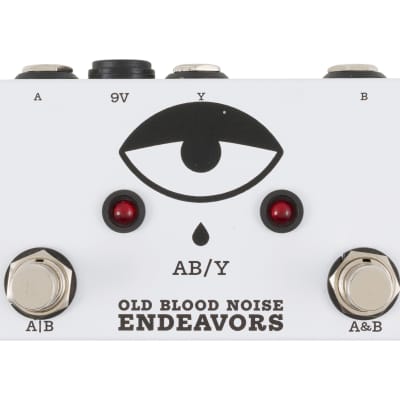

The Old Blood Noise Endeavors AB/Y Switcher is a passive pedal designed for signal routing and splitting. It allows for independent connection of two sources (A and B) to a single output (Y), or simultaneous connection of both A and B to Y. The pedal features footswitches for A and B, as well as status LEDs for visual indication. The AB/Y can function passively without power, but the LED indication requires a 9V DC center negative 2.1mm jack power supply capable of 10mA (not included).

Technical Specifications:
- Type: A/B/Y switcher
- LED Display: Yes
- Power Supply: 9V DC power supply unit (2.1 mm x 5.5 mm barrel connector, negative polarity (-) inside, not included)
- Dimensions: 68 x 112 x 45 mm
- Weight: 280 g
- Made in the USA
- Battery operation is not possible

Use Cases:
- Switching between instruments at the start of a signal chain
- Routing and splitting signals for different outputs
- Suitable for guitarists and musicians requiring flexible signal routing options

The AB/Y Switcher is a compact and versatile tool for managing signal flow and is suitable for a range of musical applications.
