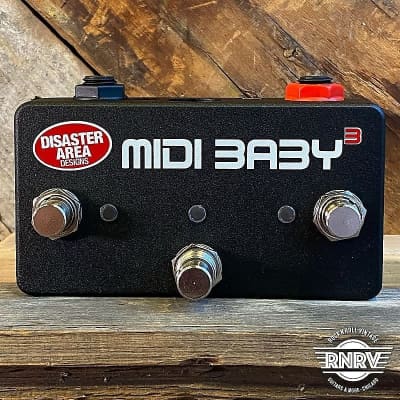

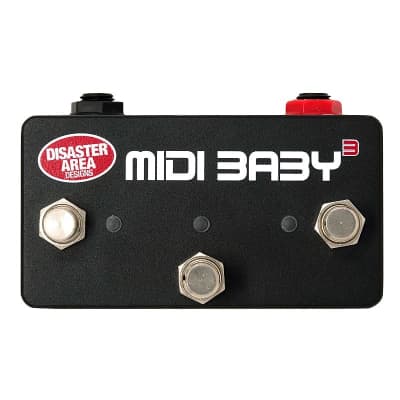

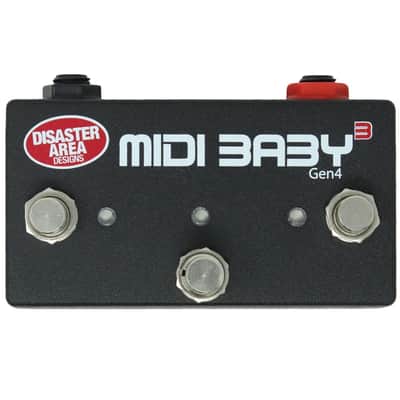

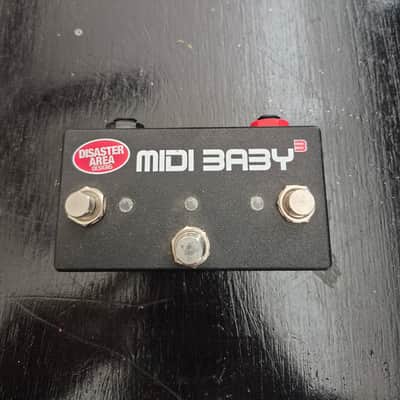

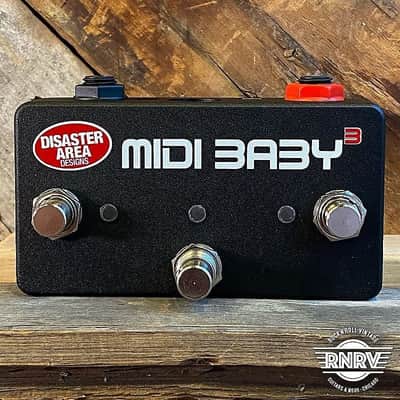

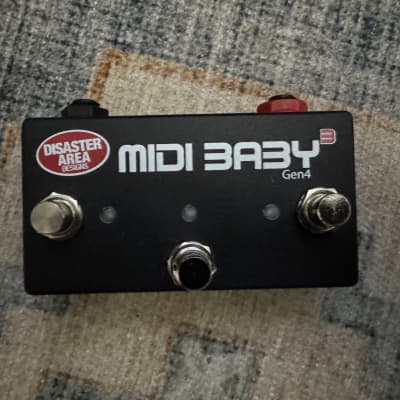

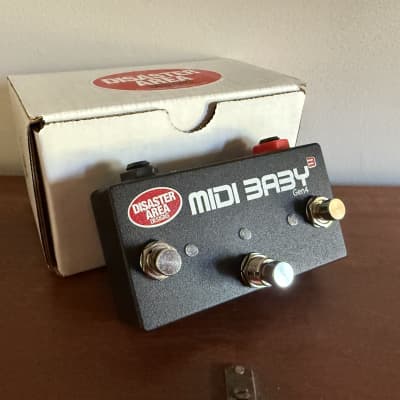

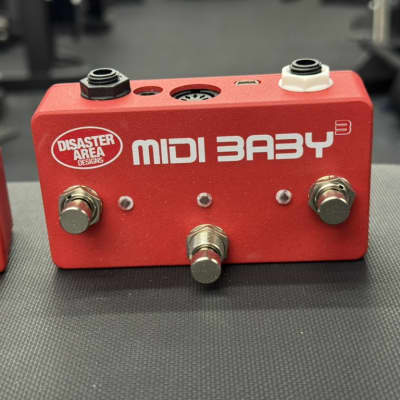

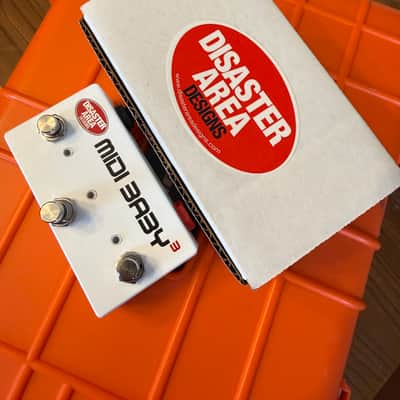

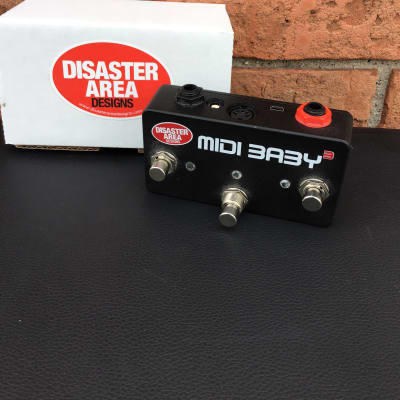

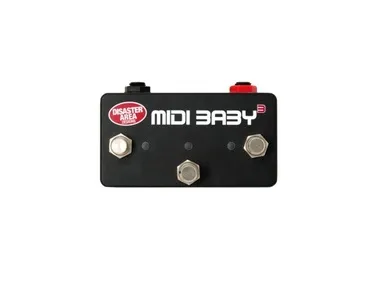

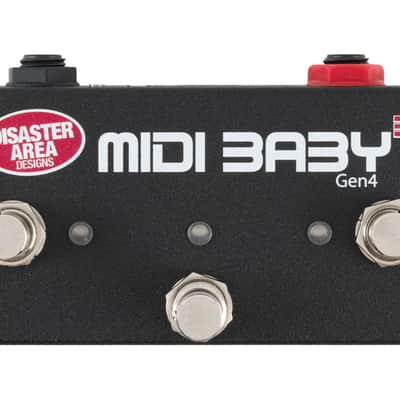

Disaster Area MIDI Baby 3

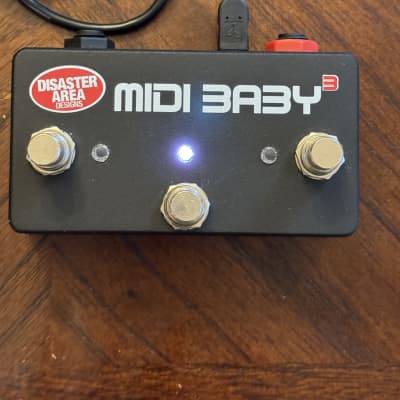

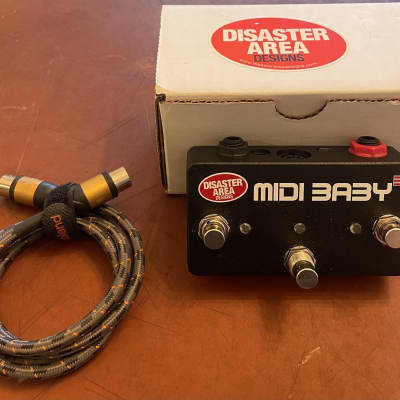

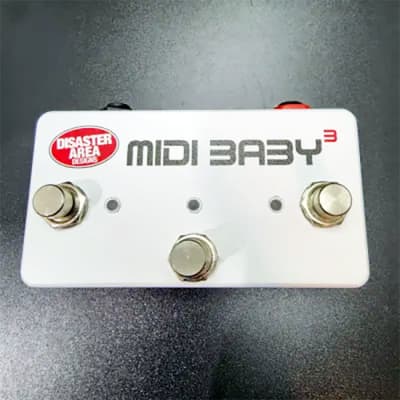

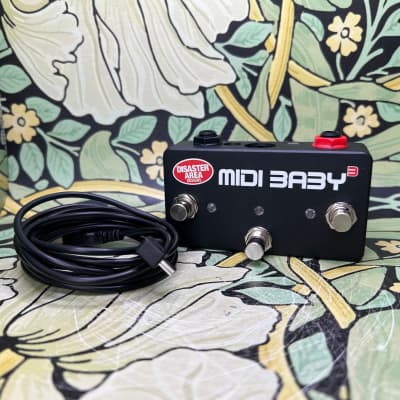

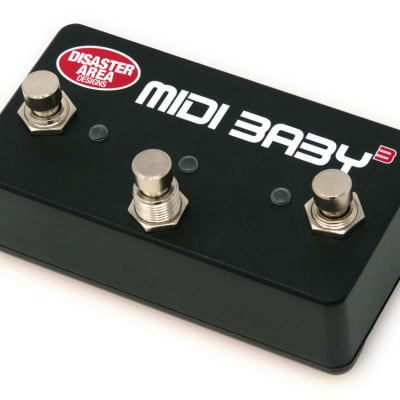

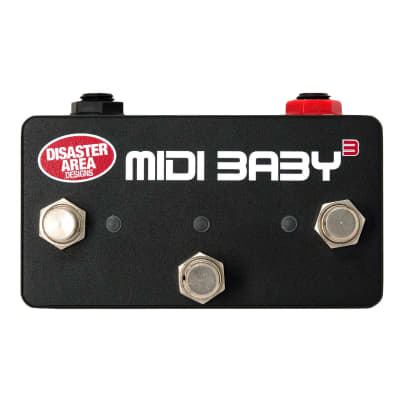

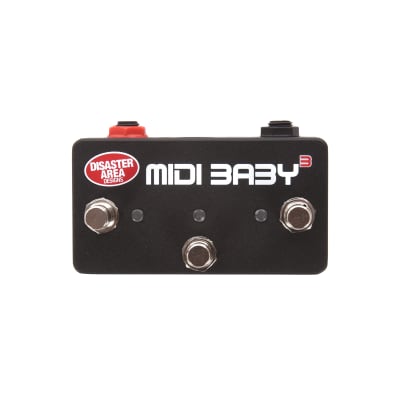

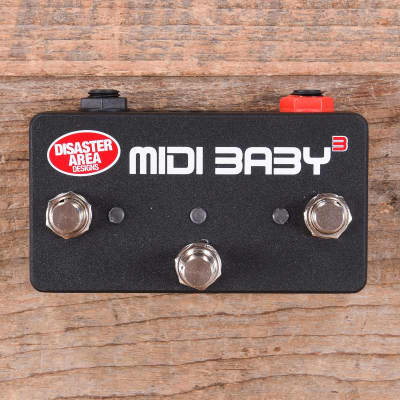

The Disaster Area MIDI Baby 3 is a compact and highly configurable MIDI foot controller pedal with three footswitches. It works like three MIDI Babies in a single enclosure, featuring three footswitches and three LEDs, offering triple the programmability. The device can be connected to a computer using the supplied USB cable, allowing users to configure it to send a wide variety of useful MIDI messages, configure its inputs and outputs, and even change the LED colors for each function.

Specifications:
- MIDI output: Sends standard MIDI over 5-pin port.
- MIDI input: Using Disaster Area MIDI Y-cable, passes through any incoming data. It also allows sending MIDI Baby 3 commands from a MIDI controller to trigger its functions.
- 9V DC power: Compatible with most pedalboard power supplies, with a minimum requirement of 30mA.
- MultiJacks A and B: Support MIDI output (on tip, ring, or both), MIDI input & output (input on ring, output on tip), expression pedal, or dual footswitch.
- USB: Functions as a USB MIDI controller to a DAW or mobile device, or as a USB host to a compatible USB MIDI device.
- Compact size: 4.4 in x 2.38 in x 1.06 in (112 mm x 60 mm x 27 mm).
- Compatibility: Compatible with practically every MIDI device ever made, programmable to meet specific needs, expandable, and connectable.

The MIDI Baby 3 can be used for various purposes, such as sending tap tempo or MIDI clock to several MIDI devices, scrolling through presets or banks on MIDI pedals using MIDI Program Change messages, toggling special functions on MIDI devices using MIDI CC messages, controlling a DAW or other audio apps using MIDI Note messages, converting a standard volume or expression pedal to a MIDI expression pedal, interfacing directly with 1/4″ MIDI devices, and sending MIDI messages to USB MIDI devices.
