Granith Grey Booster

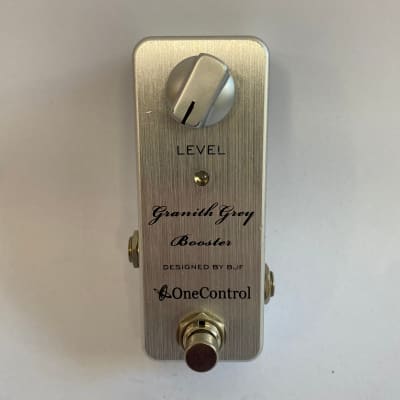

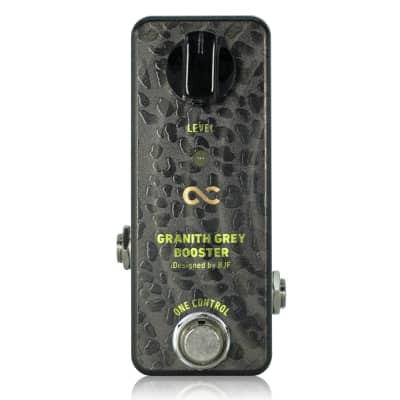

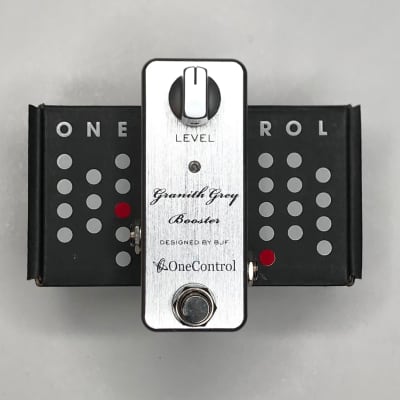

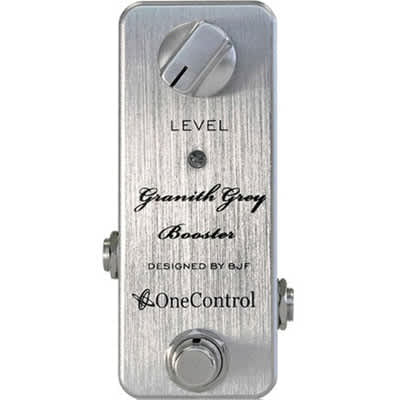

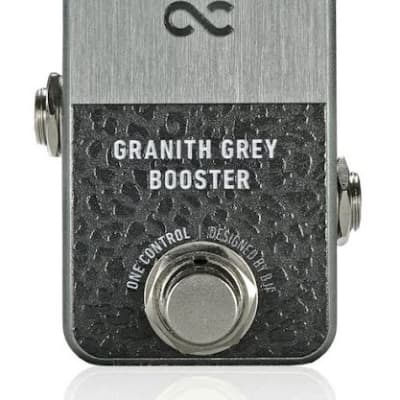

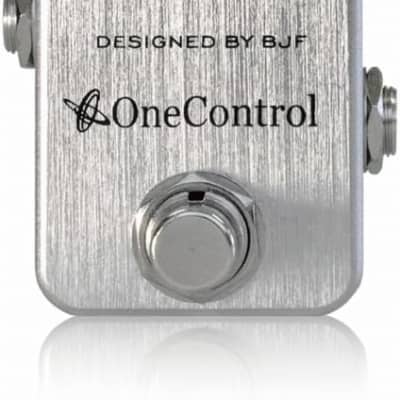

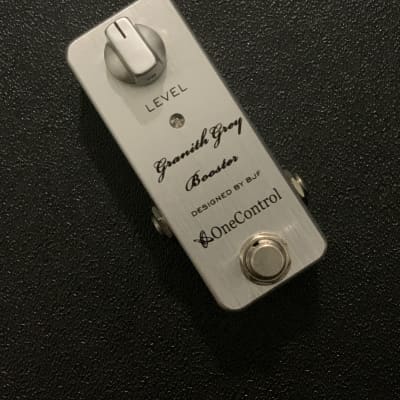

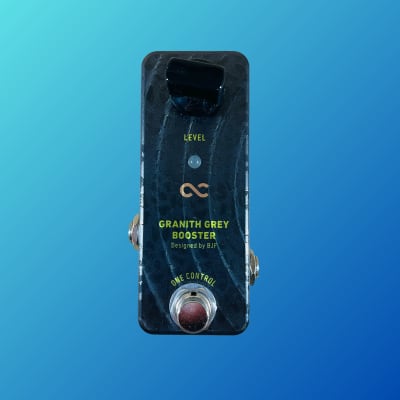

The Granith Grey Booster by One Control is a high-quality clean boost effects pedal designed to provide a significant boost of up to +15dB with minimized switching noise. The pedal features a unique BJF engineered circuitry that allows it to achieve an equivalent S/N ratio of a high-end amplifier. Here are the technical specifications and details for the Granith Grey Booster:

- Input Impedance: 500K
- Output Impedance: 2K
- Maximum Gain: +15dB
- Drive Voltage: 8.8V to 9.6V
- Current Consumption: 1mA
- S/N Ratio: 115dB
- Total Harmonic Distortion Rate: 0.006% (1 kHz)
- Size: 39W x 100D x 31H mm (excluding protruding parts), 47W x 100D x 48H mm (including protruding parts)
- Weight: Approximately 140 grams
- True-Bypass Switching
- High-Quality Aluminum Enclosure
- Power: 9V Battery or Standard DC Power Supply

The frequency characteristic of the Granith Grey Booster is specifically designed for guitars and basses, ensuring a pure and high-quality boost sound without compressing the sound or narrowing the dynamic range. It supports various types of pickups and electronics, including single coils, humbuckers, and active or passive systems.

The pedal is suitable for a wide range of use-cases, including boosting gain before or after other effects, serving as a master volume control at the end of a signal chain, adjusting gain and volume for tube amps, and maximizing the potential of any guitar amp.

The compact and pedalboard-friendly design, along with the ability to be powered by a 9V battery or standard DC power supply, makes the Granith Grey Booster a versatile and essential tool for guitarists and bassists.
