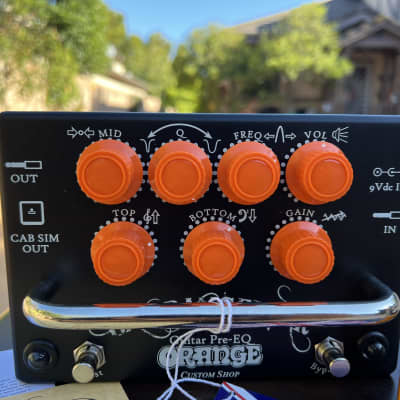

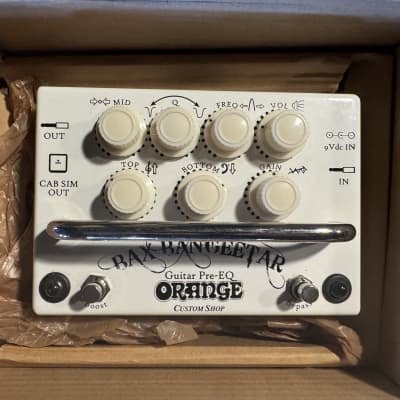

Bax Bangeetar

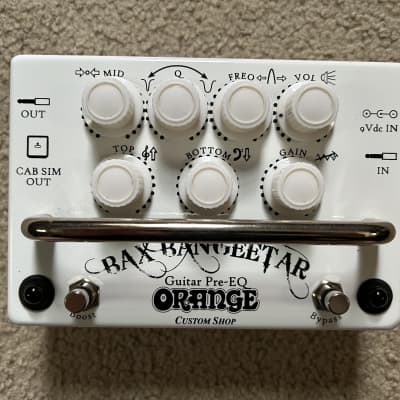

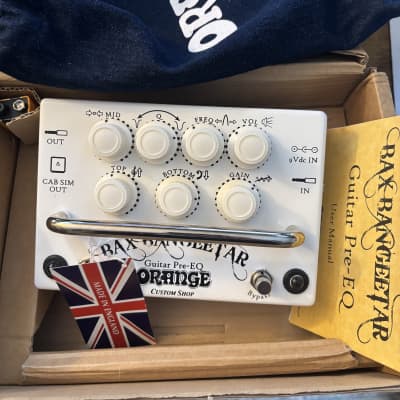

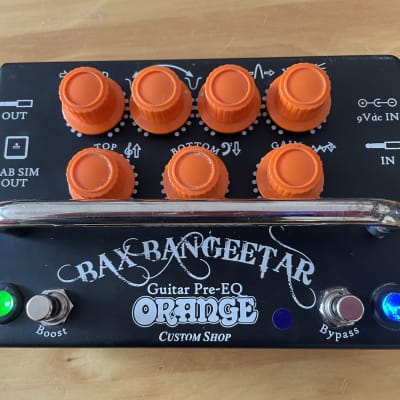

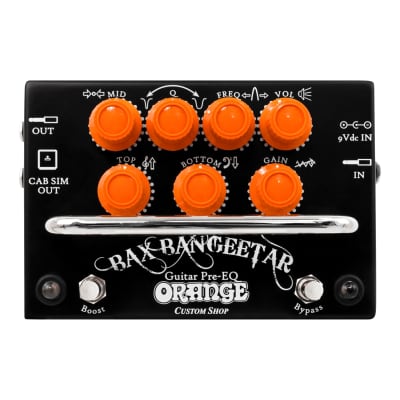

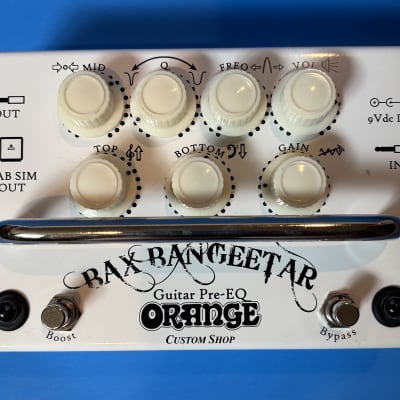

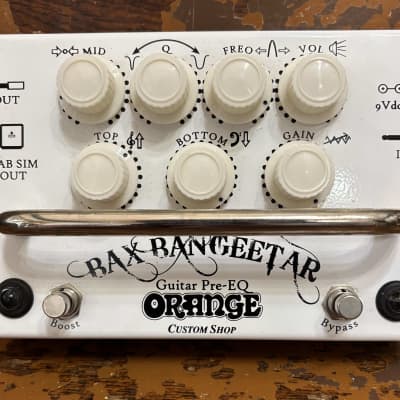

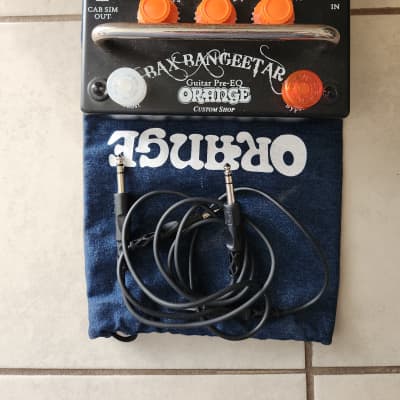

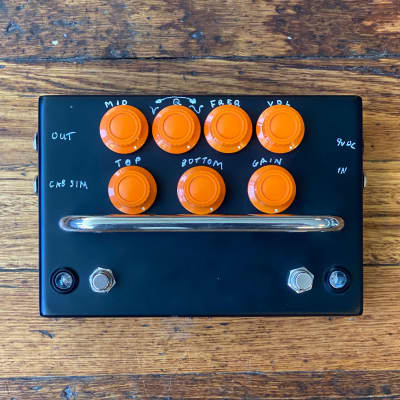

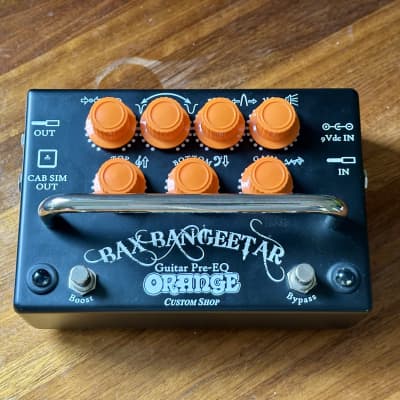

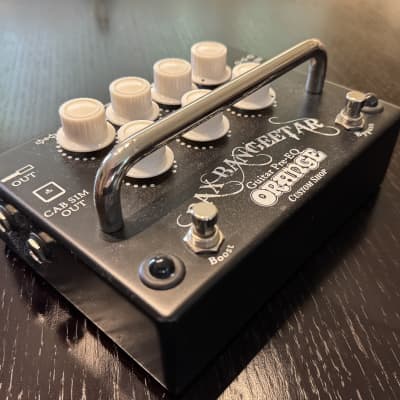

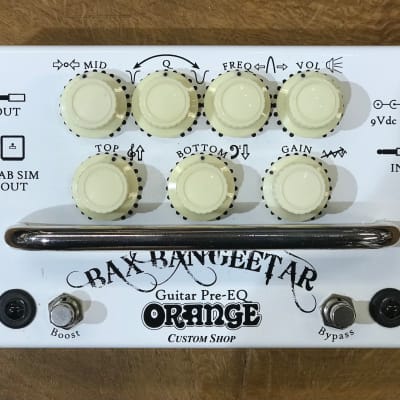

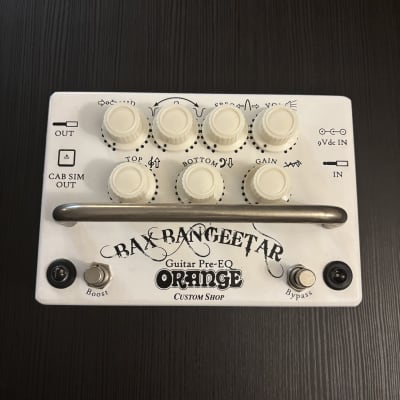

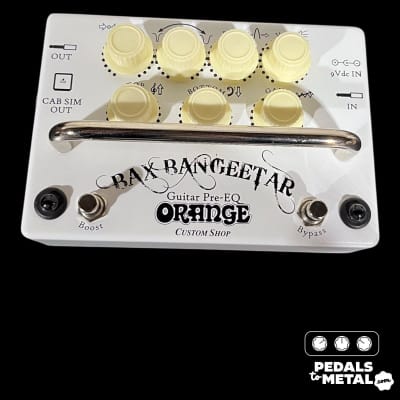

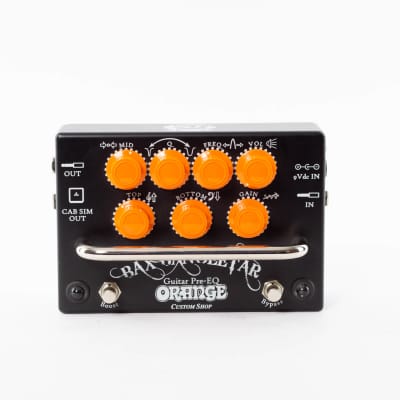

The Orange Bax Bangeetar is a guitar preamp and EQ pedal designed to provide a wide range of overdriven and distorted tones with extensive EQ controls. Here are the technical specifications and features:

- Dimensions: 128x184x75mm
- Weight: 1.6 kg (3.52 lbs. )
- Power: Can run on a single standard 9V battery or an external regulated AC- DC adapter
- Gain Structure: Offers a wide gain range, covering clean boost, low gain drive, classic Orange crunch, vintage rhythm tones, soaring leads, and high levels of distortion
- EQ Controls: Features a Baxandall EQ with full parametric mid controls, allowing precise command over the tone
- Bypass: Utilizes an ultra-transparent buffered bypass for no degradation or loss of clarity or high end
- Internal Charge Pump: Doubles the internal voltage to 18V from a 9V source, providing a wider dynamic range and more output with greater definition and headroom
- CabSim Output: Passes the preamp sound through a CabSim circuit, emulating the frequency response of a mic'd Orange 4x12” cab, suitable for direct recording or connecting to a PA
- Additional Features: Boost switch for a clean boost after the gain stage, studio-style equalizer, and switchable 5dB boost

The Bax Bangeetar's design is based on the gain structure of the Rockerverb amp, featuring op-amp technology without diode clipping. It offers a unique and hugely versatile gain structure, extensive EQ controls, and a studio-style Baxandall active EQ in a stompbox enclosure. The pedal is designed to be an invaluable tool for tailoring tone to any setup with absolute precision, making it suitable for various use-cases in both live and studio environments.
