OD808X Overdrive Extreme

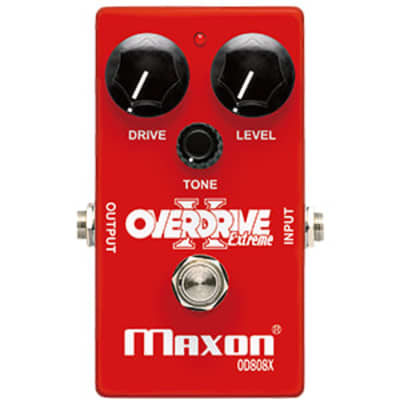

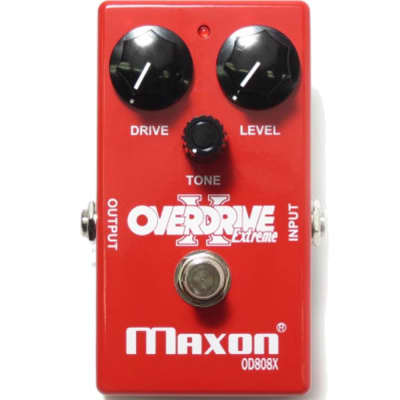

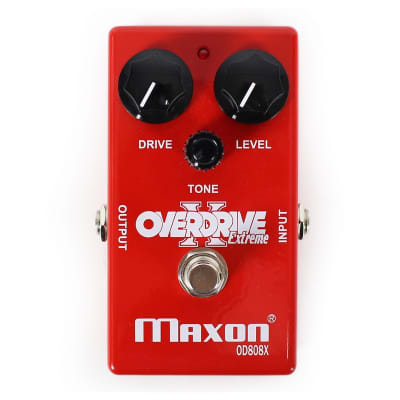

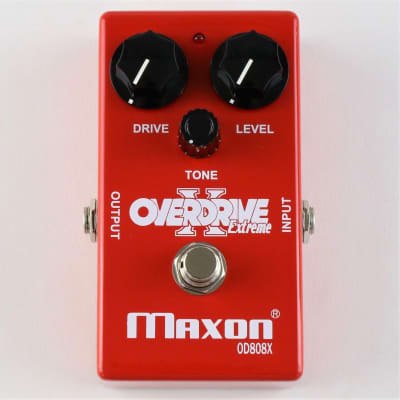

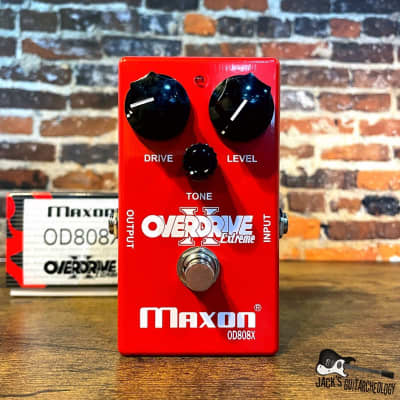

The Maxon OD808X Overdrive Extreme is a modified version of the classic OD808 Overdrive pedal. It offers an extended frequency response for improved note definition and clarity, as well as increased output (+5 dB over OD808) for extra volume boost. The pedal features a harder clipping pattern than the standard model, creating a searing, full-bodied drive tone that helps chords ring and notes sing.

Technical Specifications:
- Input Impedance: 500K Ohms
- Output Impedance: 10K Ohms
- Maximum Gain: 40dB (2 kHz)
- Input Noise: -110dB or less (Input shorted, IHF-A weighted)
- Controls: DRIVE, TONE, LEVEL
- Switch: BYPASS/EFFECT (Buffered Electronic Bypass)
- Indicator: BYPASS/EFFECT LED
- Power Supply: 6F22/6LF22 9V battery x 1 or Maxon AC adaptor
- Power Consumption: 7.2mA max. / 9VDC
- Battery Life:
- 9VDC manganese battery: 78 hours at 25°C (FUJITSU 6F22)
- 9VDC alkaline battery: 114 hours at 25°C (TOSHIBA 6LF22)
- Dimensions: 70(W) x 113(D) x 56(H) mm
- Weight: Approx. 300g (including battery)

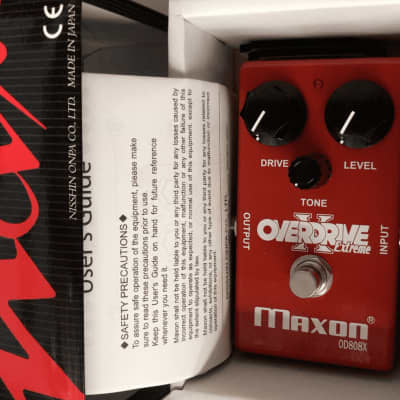

- Accessory: 6F22 9V battery x 1, operating manual

The OD808X features a low-impedance buffered bypass, allowing it to drive long cable lengths or other effect units without loss of signal. It is designed to provide a versatile, amp-like overdrive with excellent note clarity that won’t get lost in a mix.
