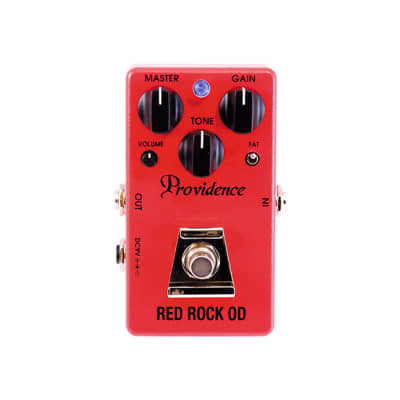

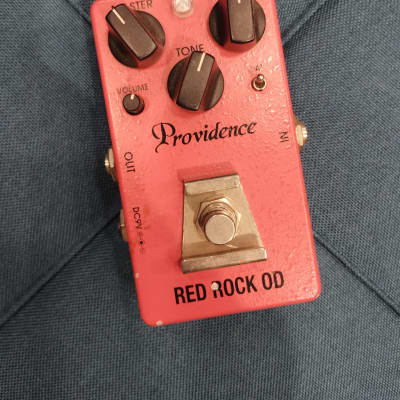

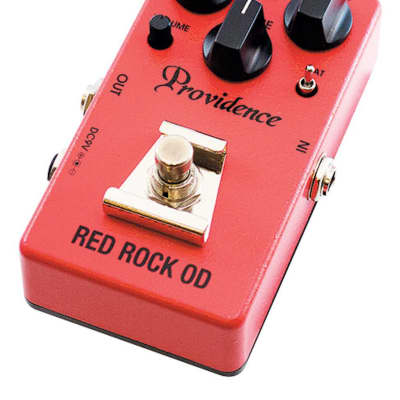

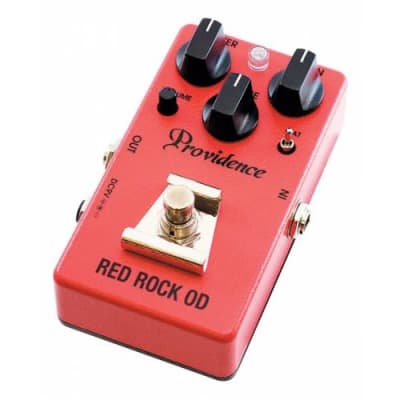

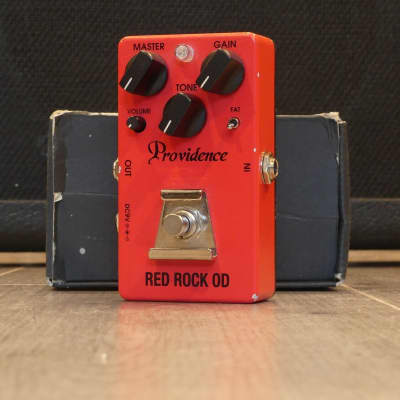

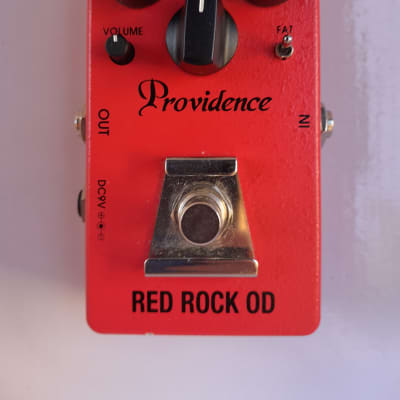

Red Rock OD ROD-1

The Providence Red Rock OD ROD-1 is a warm overdrive pedal designed to provide plenty of sustain, giving guitarists a wide-ranging expressive voice. The tone is specifically tailored for guitars with single-coil pickups. The pedal features the following technical specifications:

- Controls: VOLUME, MASTER, TONE, GAIN, FAT
- Connectors: 1/4-inch phone jack x 2 (INPUT and OUTPUT), DC 9V input jack (AC adaptor jack)
- Power Supply: 9V battery or AC adaptor
- Power Consumption: DC 9V, 20mA approx.
- Dimensions: 115(D)×73(W)×50(H)mm
- Weight: 250 g approx. (Not including battery)

Additionally, the pedal incorporates a FAT switch that boosts the low frequencies to deliver a fatter, more powerful sound. It also features a wide dynamic range achieved through internal circuitry that doubles the 9-volt supply voltage to 18 volts, surpassing conventional overdrive effects. The ROD-1 utilizes the Single Contact True Bypass configuration to ensure unmatched signal quality and reliability. Furthermore, the adoption of the new double-contact grounding circuit (D.C.G. Circuit) enhances sound quality and minimizes the risk of loose connections.

The pedal's multi-function LED not only indicates the on/off status but also provides effective visual battery power monitoring. When the battery voltage drops below 7 volts, the LED dims and begins to go out, signaling the need for a battery replacement to ensure optimum performance.
