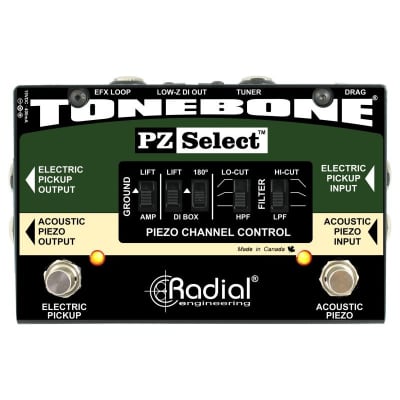

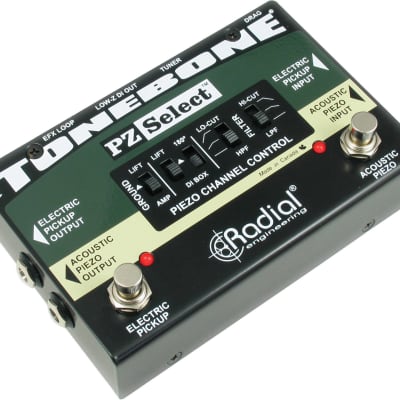

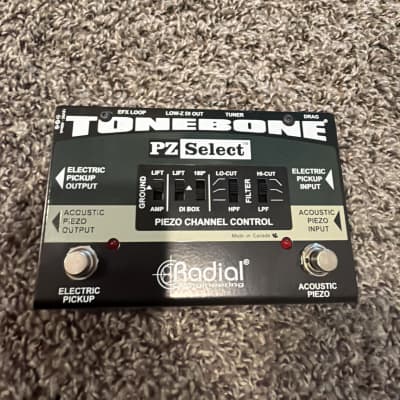

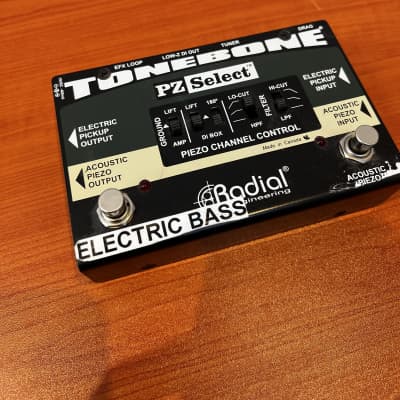

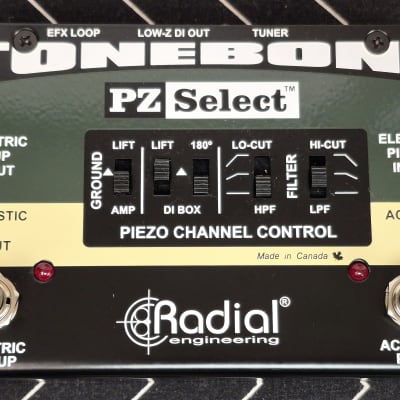

Tonebone PZ-Select

The Tonebone PZ-Select by Radial is a feature-packed signal switcher designed for hybrid electric guitars and basses that utilize both magnetic and piezo pickups. It allows users to seamlessly switch between pickups for a smooth performance on stage. The pedal features two separate channels: one dedicated to electric guitar and the other optimized for acoustic instruments. The magnetic-electric pickup channel incorporates Radial's award-winning class-A buffer for pristine signal integrity, along with Drag Control load correction to maintain a natural tone. The piezo-acoustic channel boasts an ultra-high 10meg-Ohm impedance to broaden the frequency response and smooth out peaks and edginess often associated with piezo transducers.

Key Specifications:
- Acoustic Piezo Input: ¼" Phone unbalanced, 10 Meg Ohm input impedance
- Effects Loop (Acoustic Piezo): ¼" TRS Phone unbalanced insert type (Tip= effects send, Ring= effects return)
- Acoustic Output: ¼" Phone unbalanced, 10k ohm output impedance
- Electric Pickup Input Drag Control: ¼" Phone unbalanced, Variable 10k - 1 MegOhm input impedance
- Electric Pickup Output: ¼" Phone unbalanced, 10k Ohm output impedance
- Tuner output: ¼" Phone unbalanced, 10k ohm output impedance
- XLR Output: XLR balanced 600 ohm mic-level, pin-out (AES standard): pin 1 ground, pin 2 hot (+), pin 3 cold (-)
- Power supply: 15VDC, 400mA (included), center pin positive
- Size (W x D x H): 5.75" x 3.75" x 1.99" (146 x 95 x 50mm)
- Weight: 1.75 lbs. (0.8 kg)
- Warranty: 3 Years, transferable

The PZ-Select also includes a built-in Radial DI box for the piezo-acoustic channel, allowing direct delivery of the acoustic tone to the PA system via a low-Z balanced XLR out. Additionally, it features a dedicated effects loop on the piezo channel for connecting a series of pedals to feed both outputs. The pedal's bright full-sized LEDs provide visual clarity under stage lights to indicate the selected channel.
