Spliff

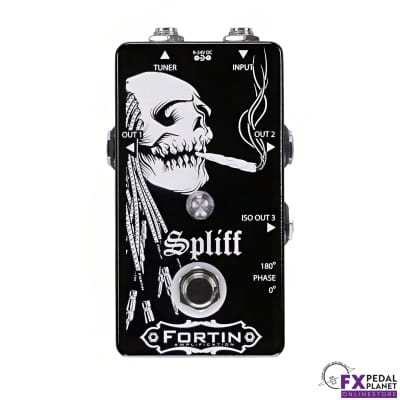

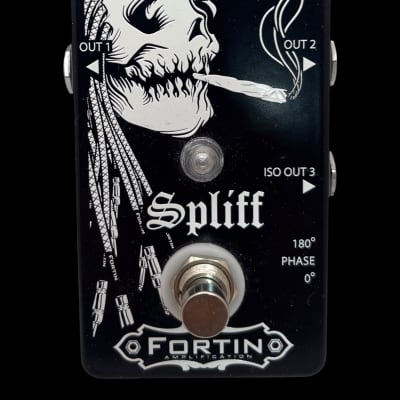

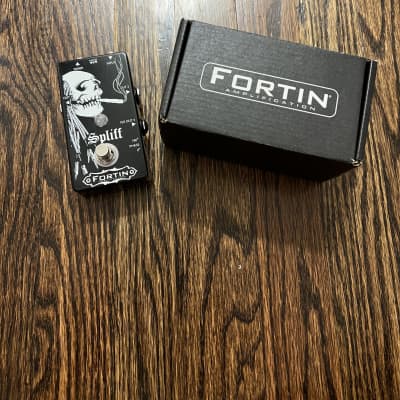

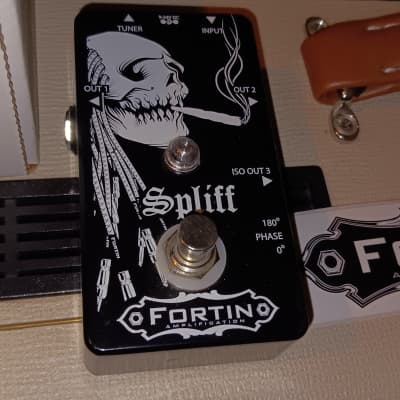

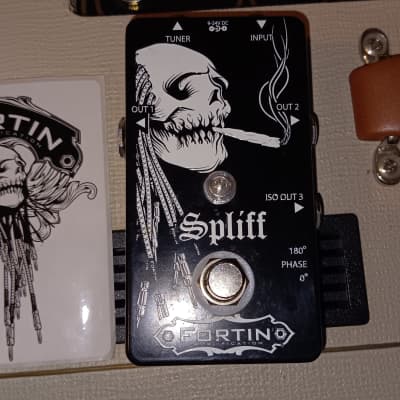

The Spliff by Fortin is a 3-way splitter with discrete Class-A buffers and one output transformer isolated with a phase side switch. It offers multiple signal management options, including splitter, buffer, isolation, and mute. The pedal features indicator LEDs for active and mute states, with the tuner out always active. It operates on low current and can run on a 9VDC battery or a 9-24VDC DC inlet. The pedal dimensions are 4.40 in x 2.38 in x 1.06 in (112 mm x 60 mm x 27 mm), and it has a shipping weight of 360g. The internal battery requirement is 9VDC@4mA, and the DC adapter requirement is 9-24VDC, Center Pin Negative (Regulated). The input impedance is approximately 1M and the output impedance is approximately 10k min load. The frequency response ranges from 20Hz to 20kHz, and the maximum output is +9dBm (9VDC) or +18dBm (24VDC). The pedal is proudly made in North America.
