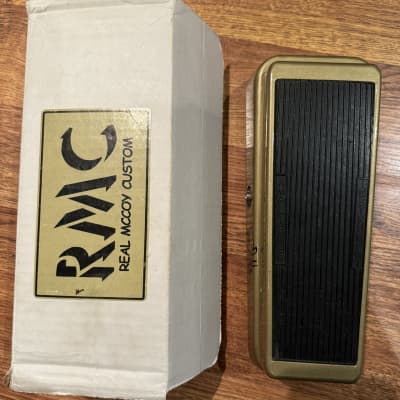

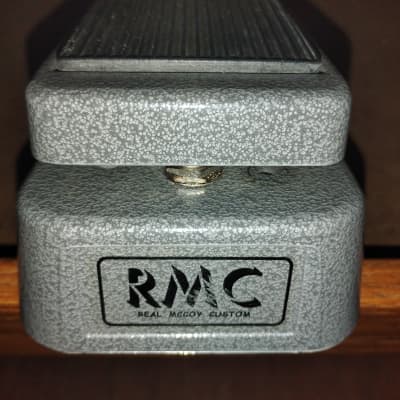

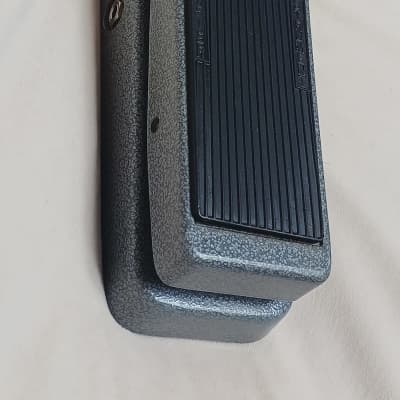

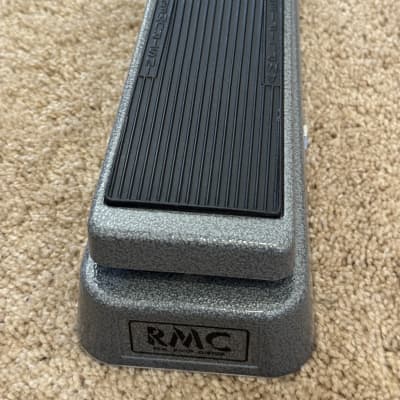

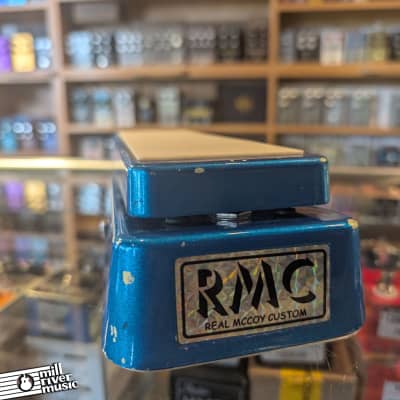

RMC3 Wah Pedal

The Real McCoy Custom RMC3 Wah Pedal is the world's first fully tunable self- contained wah, initially created in 1994. Its interior Vari-Tune circuit controls include:

- LOW: Controls the amount of low frequencies present in the wah's sweep.
- MID: Controls the mid-range depth of the sweep, affecting the vocal-like quality of the wah.
- Q Harmonic: Controls the position of the sweet spot within the sweep range, replacing the 33K or 100K resistor in old Italian wahs.
- VOLUME: Allows adjustment of the output strength of the wah.
- SWEEP: A bank of 9 DIP switches that allow selection of the desired sweep within a 9 octave range, creating familiar wah sweeps as well as some never- before-available voicing parameters.
- FINE TUNE: Two trimmers that work in conjunction with the SWEEP DIP switches to allow access to values "in-between" switch settings.

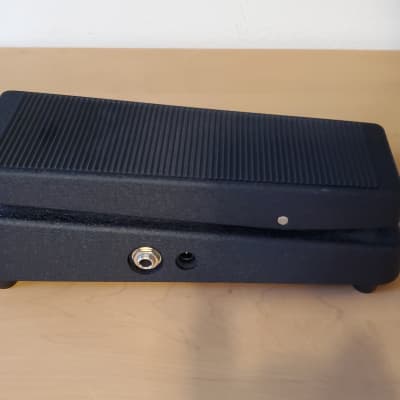

The RMC3 features fuzz-friendly technology, an EMI resistant inductor, heavy- duty true-bypass on/off switch, exclusive 100K RMC-ICAR potentiometer, Switchcraft jacks, easily adjustable rocker tension, and an AC adapter jack. It is housed in a standard-sized black case topped with a black footpad.

Technical Specifications:
- Model number: RMC3
- Inductor: Low noise
- RFI Filtering: Yes
- EMI Filtering: Yes
- Current draw: <10 mA
- AC adapter requirements: 5.5/2.1mm coax plug with a negative center post, 9VDC AC regulated Class II, 20mA to 200mA max current output.

The US MSRP for the RMC3 is $255, and it is covered by a limited one-year warranty.
