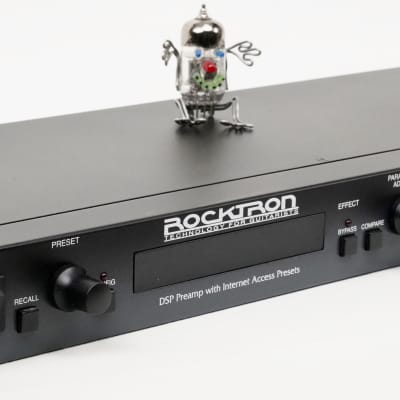

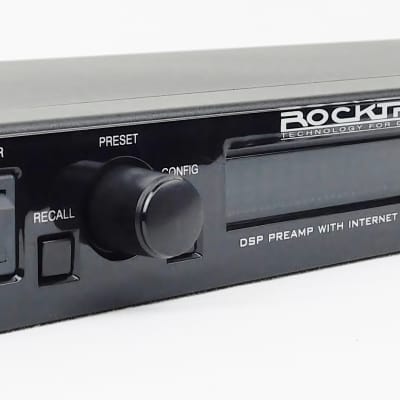

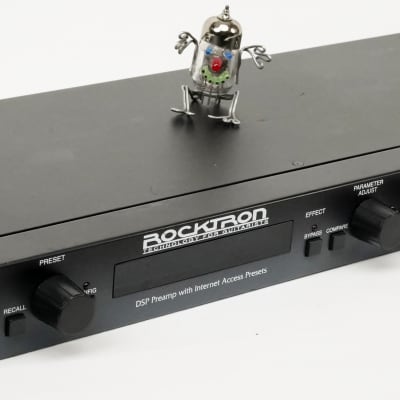

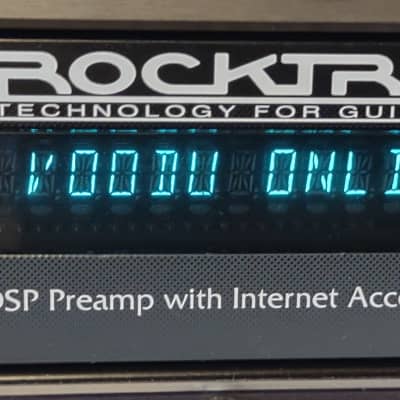

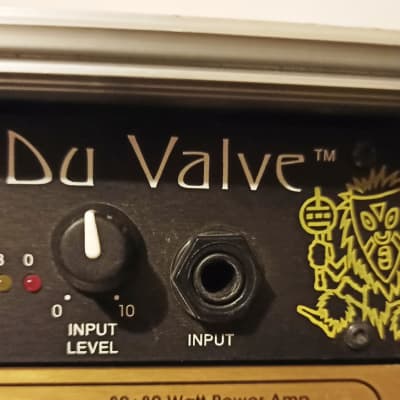

Voodu Valve

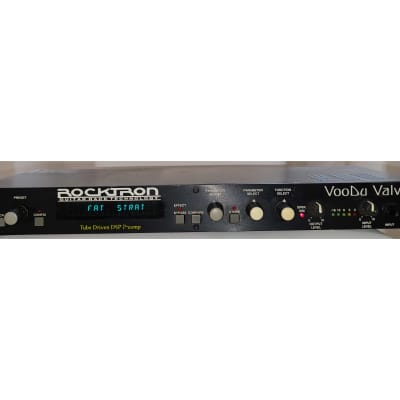

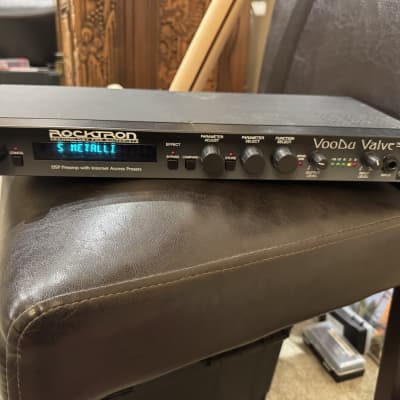

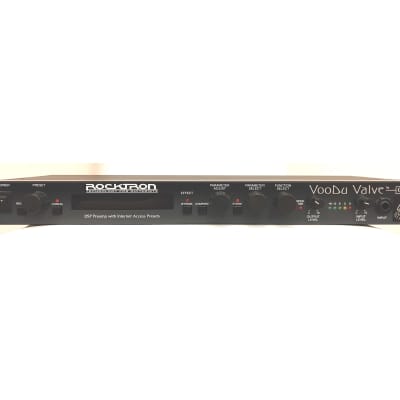

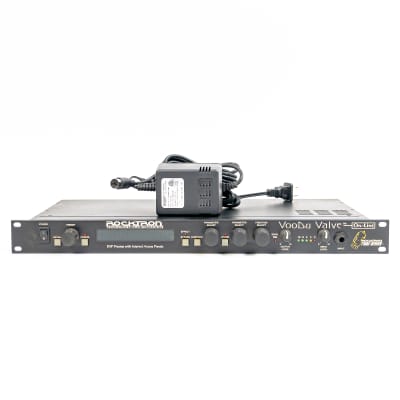

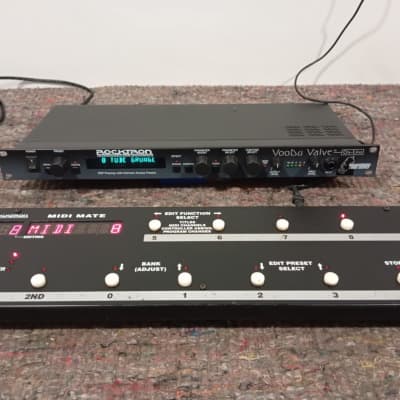

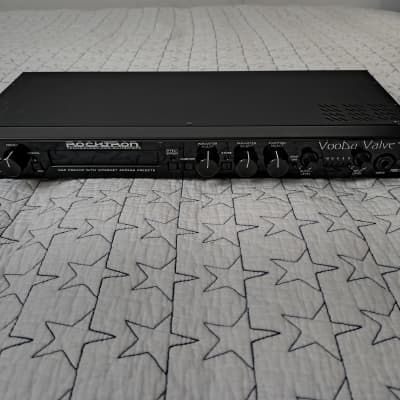

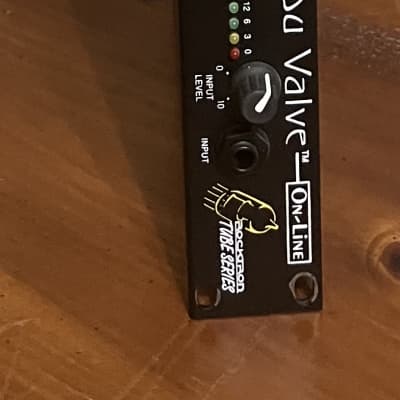

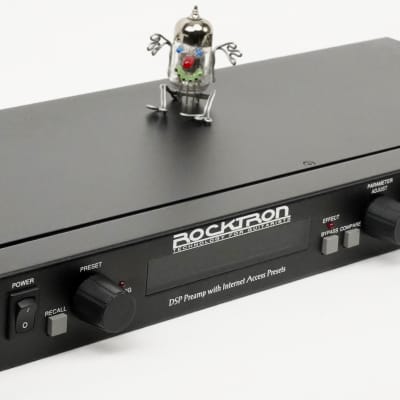

The VooDu Valve by Rocktron is a 24-bit DSP professional tube guitar preamp that offers 12 unparalleled effect algorithms and superb sound quality. It features advanced speaker simulation for a realistic approximation of a miked speaker cabinet at line-level for direct mixer input or headphone listening. The preamp also includes full parametric pre and post EQ for complete EQ control over each preset, as well as HUSH noise reduction for noise reduction while playing and complete silence when not in use.

The VooDu Valve also offers a "Variac" simulation to adjust the level at which the preamp begins to distort, providing more gain in high-gain applications and allowing for full-bodied cleaner presets. Additionally, it includes internal wah-wah functionality, high-quality digital effects such as reverb, pitch shifting, phasing, compression, tremolo, chorus, flanging, and delay, and XLR outputs for direct mixer input.

Technical Specifications:
- Input Impedance: 470K Ohms
- Output Impedance: <150 Ohms
- Input: 1/4" mono unbalanced
- Output: 1/4" mono unbalanced (left and right). Left jack can drive stereo headphones of 600 Ohm or more (e.g., AKG studio phones). XLR balanced (left and right)
- Tube Type: 12AX7EH
- MIDI In: 7-pin DIN
- MIDI Thru/Out: 5-pin DIN
- Power Requirements: 9VAC/3.4A
- Dimensions: 19" x 7" x 1.75" / 482.6mm x 177.8mm x 44.5mm
- Weight: 5.5lbs / 2.5kg
