A3

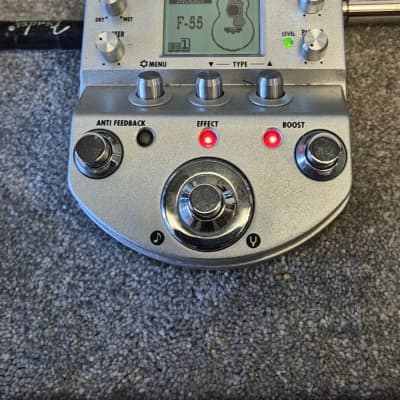

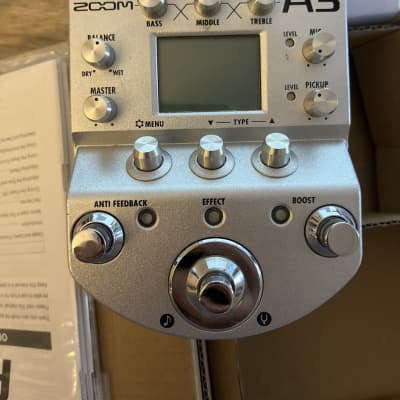

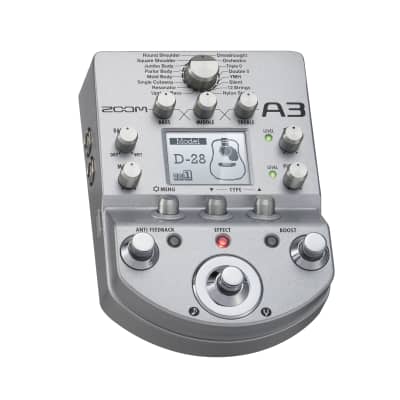

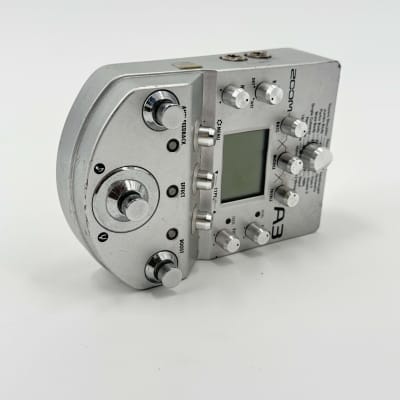

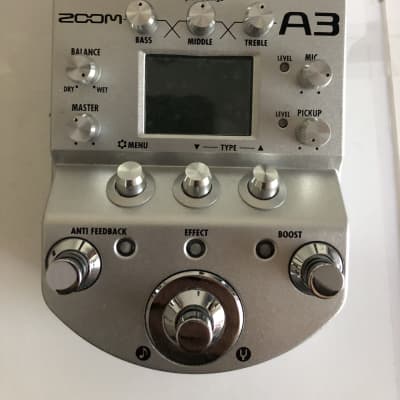

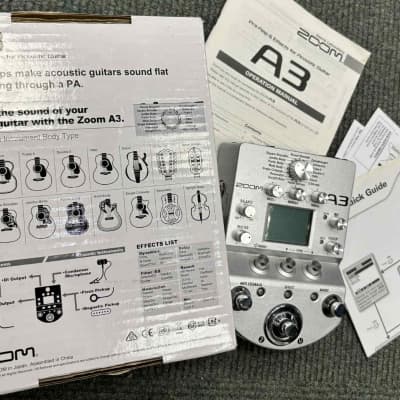

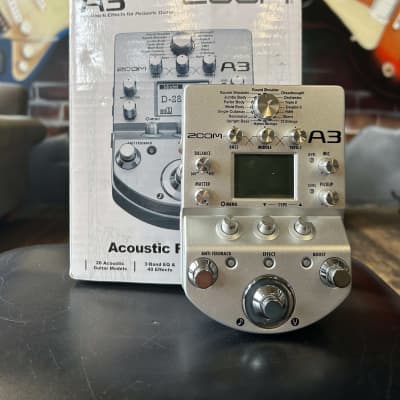

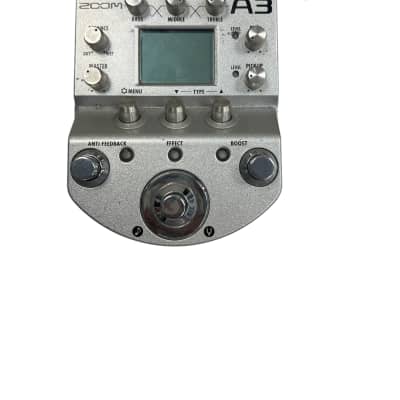

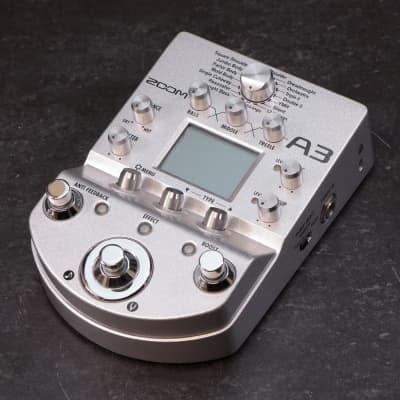

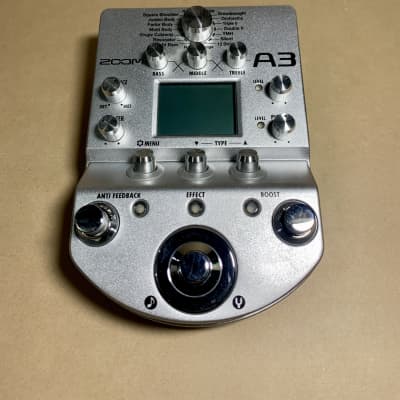

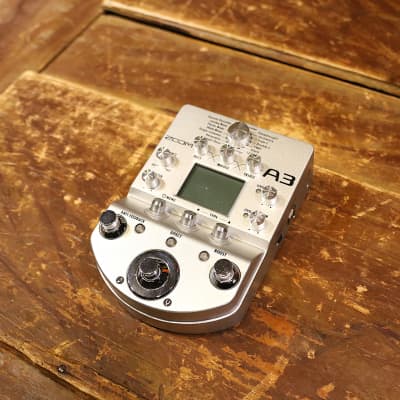

The Zoom A3 is a compact pre-amp and effects pedal designed specifically for acoustic guitarists. It offers a comprehensive set of features and controls, making it a versatile tool for enhancing the natural tone of acoustic instruments. Here are the technical specifications and key features of the Zoom A3:

Design:
- Compact floor preamp with effects and modeling
- Dimensions: 160.3 (D) x 108 (W) x 54.9 (H) mm
- Weight: 630g (without batteries)
- 1/4-inch guitar and XLR mic inputs
- XLR DI and stereo unbalanced outputs

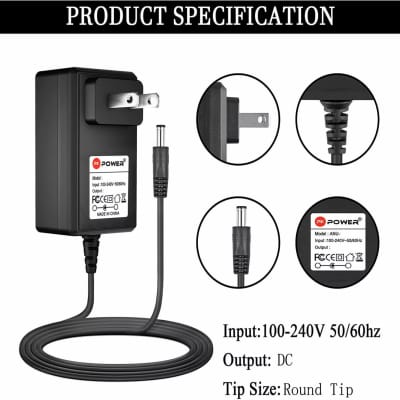

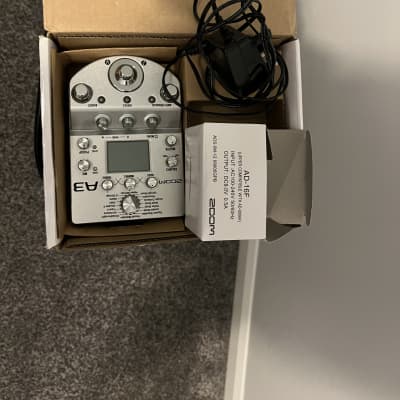

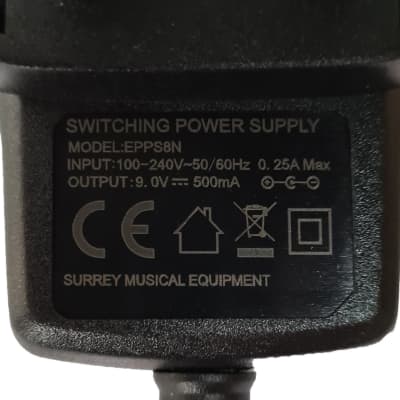

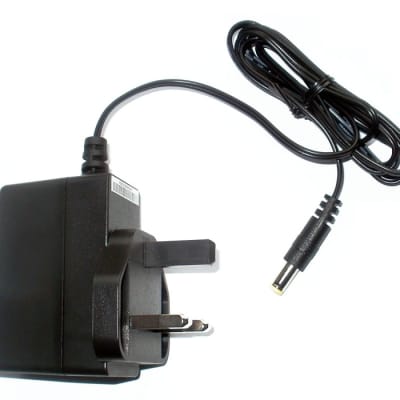

- Powered by 4 AA batteries (alkaline or rechargeable NiMH) or supplied AC adapter
- Battery life: up to 8 hours with alkaline batteries

Features:
- 16 x Acoustic Body Types for modeling
- 28 x Guitar Models for tonal versatility
- 40 x DSP Effects including reverb, chorus, phaser, compression, EQ, and more
- 3-band EQ controls for Bass, Midrange, and Treble
- Separate level adjustments for Mic and Pickup inputs
- Master volume control
- Footswitches for mute/tuner, boost, and auto-feedback control
- Feedback suppression feature
- Clean Boost footswitch for volume boost
- Extensive modeling capabilities for emulating different guitar types and pickup configurations
- 12 reverb algorithms and a wide range of effects for sonic versatility
- USB connectivity for firmware updates

Functionality:
- The A3 provides a virtual pedal board with three slots for effects and modeling
- Patches can be saved to memory for easy recall of different settings
- Software-based effects and controls accessed via the LED screen and combination push-button/knobs
- 24 or 48 volts of phantom power selectable via software for the XLR mic input
- Ground-Lift switch for eliminating ground loop hum
- Ability to power the unit via USB in addition to the supplied AC adapter

The Zoom A3 is a self-contained powerhouse that offers a wide range of effects, modeling options, and EQ controls, making it a versatile tool for acoustic guitarists seeking to enhance and shape their sound. With its compact design and extensive features, the A3 is a comprehensive solution for acoustic guitar tone shaping and effects processing.
