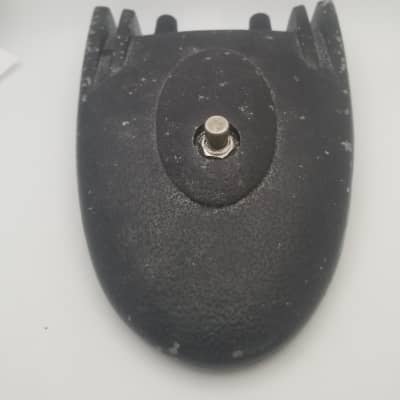

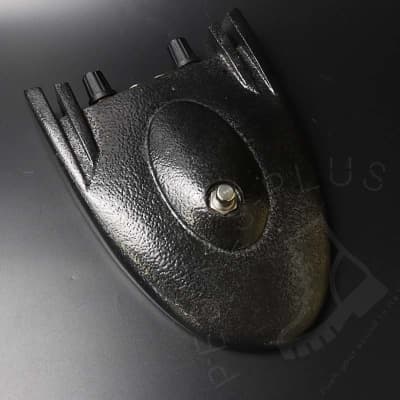

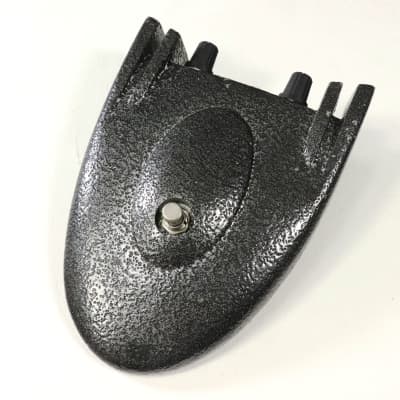

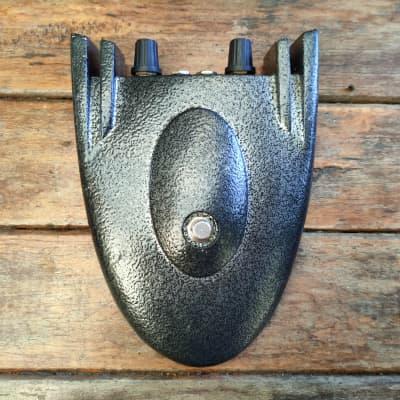

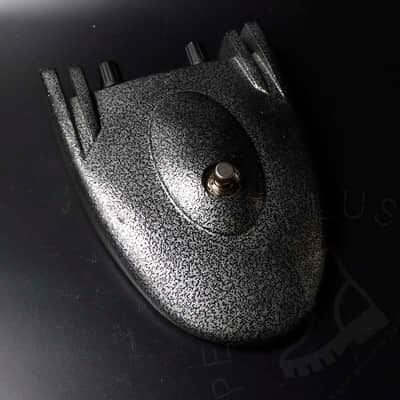

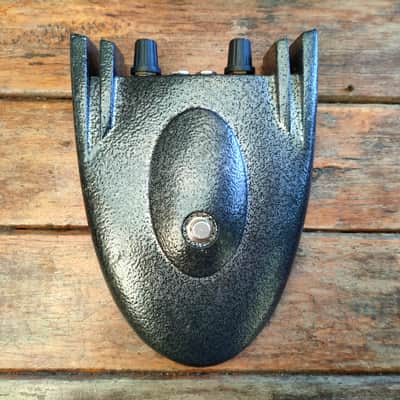

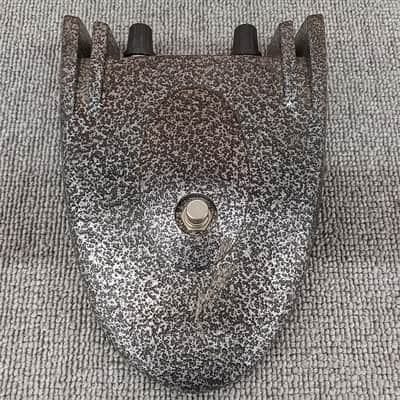

Stone Fuzz by Roger Mayer

The Stone Fuzz by Roger Mayer is a modern evolution from the fuzz pedals modified for Jimi Hendrix. It maintains the original tone characteristics with an open sound and sonic heritage that is the trademark of Jimi's recordings. The Stone Fuzz is a low-noise, high-gain design, stable, and free from radio and other electronic interference. It has a greatly increased output level that enables it to overdrive the front end of any amp, producing deep and tight low-end fuzz while maintaining a sweet top end.

Key Features:
1. Front End Buffering: Allows the fuzz circuitry to interface better with standard wah pedals and maintains the full tone capabilities of the pickups without loss of detail.
2. Fatness Control: Allows tweaking without destroying the unit's overall tone character.
3. Hard Wire (True Bypass) or Two Buffered Outputs: Essential for trouble- free interfacing in all situations.
4. Easy Battery Access: Slide the cover back to reveal the battery for quick replacement.
5. Standard DC Powering Jack: Allows the use of commercial powering units with extra internal filtering for low noise performance.
6. Multi-Mode Outputs with Hard Wire Bypass or Two Buffered Outputs: Provides options for performance or equipment situations.
7. LED Indicator: Shows the status of the effect and indicates a low battery condition.
8. Rapid Battery Change: No screws required for battery replacement, with a long battery life of over 150 hours.
9. External Power Adapter/Supply: Can be used with an external AC adapter, with internal onboard filtering for low noise performance.
10. Ergonomic Design/Pedal Board Friendly: Jack sockets and DC power jack are positioned on the same side of the enclosure for optimal pedal board setups.

Specifications:
- Power: 9 volt DC, regulated output recommended
- Current Rating: 50mA or more
- Dimensions: Width 170 x Depth 112 x Height 57mm
- Weight: 618g with battery

The Stone Fuzz is designed to maintain the original guitar tone and is recommended to be used as the first in the signal processing chain to take full advantage of its internal feedforward feature. It responds well to each individual player's touch, style, and playing technique.

The Stone Fuzz is a versatile and innovative pedal suitable for modern sound with strong roots in the past, offering a wide range of well-rounded musical tone colors and easy interfacing in modern digital recording situations.
