SY-300

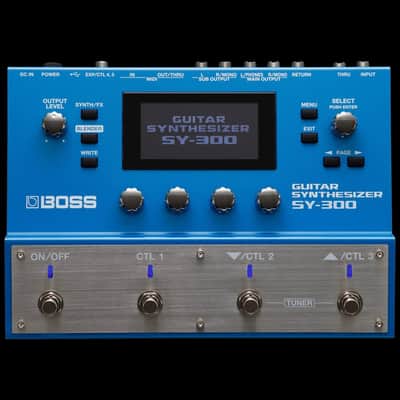

The Boss SY-300 is an advanced guitar synthesizer pedal designed to provide a wide range of features and functionalities. Here are the technical specifications and details for the SY-300:

1. Input: Standard 1/4-inch jack for use with any guitar, eliminating the need for a special pickup
2. Synthesis Engine: Powerful polyphonic synthesis engine with three separate sections
3. Wave Shapes: Offers a selection of wave shapes including SIN, SAW, TRI, SQR, PWM, and DETUNE
4. Controls: Allows complete creative freedom to build sounds with a full palette of synthesis parameters, including filter, amp, and pitch controls
5. Step Sequencer: Includes a step sequencer with tap tempo control for creating dynamic melodies and arpeggios by playing a single note on the guitar
6. Effects Processors: Four simultaneous effects engines with various effects types such as overdrives, distortions, Slow Gear, Isolator, Slicer, and more
7. Control Options: Equipped with a graphic LCD display, three assignable footswitches, and a dedicated on/off footswitch for easy control
8. Preset Patches: Comes with 70 ready-to-play preset patches and 99 user patches for storing custom sounds
9. Connectivity: Features Thru output, dual output pairs (Main and Sub), MIDI In and Out/Thru jacks, and a USB audio interface for direct integration with music production software on a computer
10. Compatibility: Works with bass and other electronic instruments as well
11. Software: Supports the BOSS Tone Studio editor/librarian for creating and archiving sounds, and allows for downloading new sounds from BOSS Tone Central
12. Dimensions: Approximately 10.1 x 7.6 x 2.8 inches (25.5 x 19.1 x 7 cm)
13. Weight: Approximately 3.9 lb (1.8 kg)

The SY-300 offers a latency-free playing experience, allowing guitarists to explore fat, analog-style polyphonic synth sounds with seamless expressiveness and familiar feel. It provides a versatile platform for sound creation, processing normal guitar sounds, and integrating high-impact effects, making it a valuable tool for musicians seeking innovative sonic possibilities.
