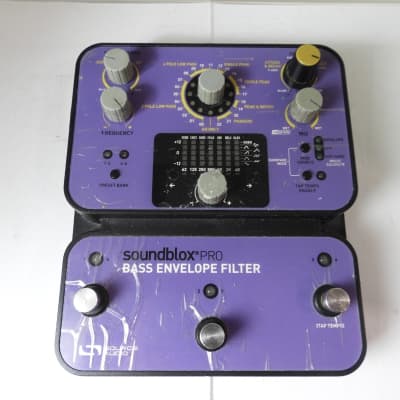

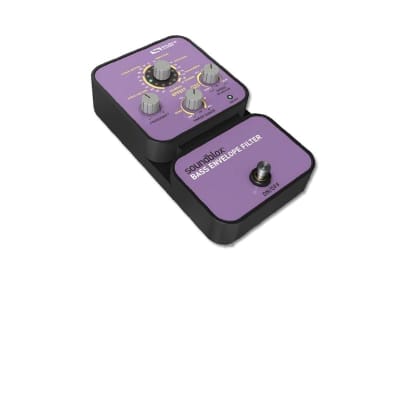

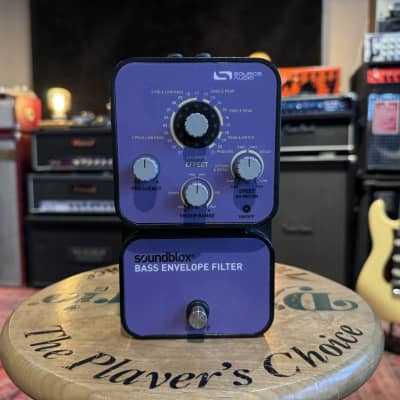

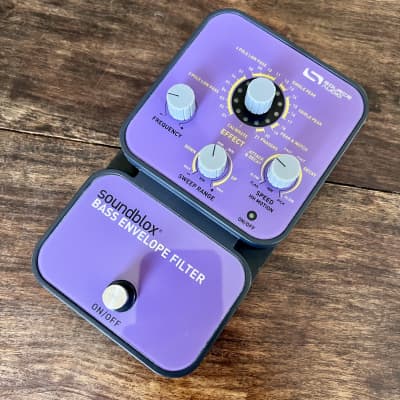

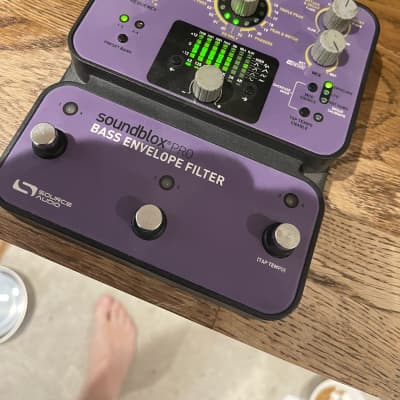

Soundblox Bass Envelope Filter

The Soundblox Bass Envelope Filter by Source Audio is a versatile effects pedal optimized specifically for bass guitar. It offers 21 different envelope filter effects, including 2 Pole and 4 Pole Low Pass variations, Single Peak, Triple Peak, Peak/Notch variations, and Phaser settings. Users can further modify these settings with control options such as positive/negative filter sweeps, sweep range, attack and decay speed settings, or frequency range selection.

Key Features and Specifications:
- 21 Filter Sounds: Including 2 Pole Low Pass, 4 Pole Low Pass, Single Peak, Triple Peak, Peak and Notch, and Phasers.
- Positive and Negative Filter Sweep: Variable range and sensitivity for versatile sound manipulation.
- Dual Range Speed Control: Allows equal adjustment of Attack and Decay speeds, or a fixed, fast attack and adjustable Decay.
- Modern Design: Rugged construction and sleek looks for durability and aesthetics.
- State-of-the-art DSP: Utilizes a proprietary 56-bit Digital Signal Processor (SA601) and crystal clear 24-bit converters for high-quality sound processing.
- Motion Control: Compatible with Hot Hand motion sensor for extended capabilities.
- Active Analog Bypass: Ensures zero signal degradation during bypass.
- Dimensions: 7 in/17.8cm (length not including I/O jacks) x 4 in/10.2 cm (width) x 2 in/5cm (height, including knobs).
- Power supply not included.

The pedal also features 4 modulation sources, including envelope, LFO, expression pedal, and Hot Hand, as well as tap tempo speed control for LFO. It offers 6 user presets, an ultra-precise 7-band equalizer for in-depth tone control, an expression input for control of various pedal parameters, and MIDI input for external access to presets and parameters.

The Soundblox Bass Envelope Filter is designed to deliver a wide variety of original sounding effects in a sleekly designed, rugged package that is easy to use and highly flexible, making it a valuable addition to a bass guitarist's effects arsenal.
