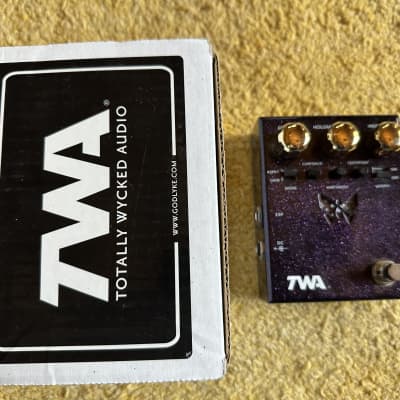

DM-02 Dynamorph by TWA

The TWA DM-02 Dynamorph is a versatile envelope-controlled harmonic generator designed to create multi-layered, complex waveforms that morph the harmonic structure of instruments in unique and musical ways. Here are the technical specifications and features:

- Distortion Circuit: The amount and type of saturation are intricately linked to the input signal level, allowing for a wide range of distortion effects from mild drive to extreme fuzz to massive synth filter sweeps.
- Envelope-Detection Circuit: Controls distortion events via playing dynamics, providing a powerful tool for musical expression.
- Dual Cascading Preamps: Each with independent level control, offering precise manipulation of the input signal.
- Ovid/Kafka Mode Switch: Offers two different EQ curves for diverse tonal shaping options.
- Morph Function: Allows envelope control of the distortion effect, providing further dynamic expression.
- Dedicated Dry Level Control: Enables blending in of dry signal to taste.
- S3™ “Shortest Send” Relay-Based True-Bypass Switching: Provides transparent operation in bypass mode and automatically reverts the pedal to bypass mode if power is lost.
- Optional Expression Pedal Control: Allows for additional effects by controlling the gain level.
- Butterfly LED Array: Reacts to playing dynamics, adding visual feedback.

Technical Details:
- Circuit: Features a string of full-wave rectifiers, two high-gain preamps set in series, and an op-amp for waveform processing.
- Morph Circuit: Utilizes a high-gain VCA to activate the drive and a smooth gate for harmonic sweep.

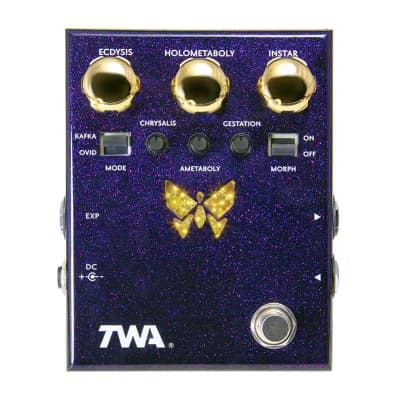

- Control Descriptions: Ecdysis (Drive), Holometaboly (Effect Level), Instar (Threshold), Chrysalis (Gain), Ametaboly (Dry Level), Gestation (Rate), Mode (Ovid/Kafka), Morph (ON/OFF), and EXP (Expression Pedal).

The DM-02 Dynamorph is designed to offer a unique and personalized experience for musicians seeking innovative distortion and filtering effects. It is made in the USA and comes with a 3-year warranty.
