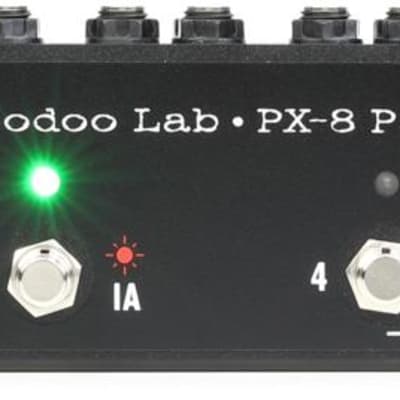

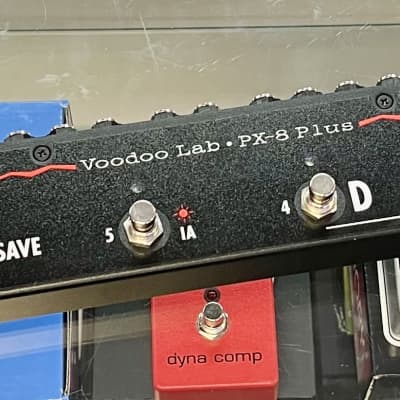

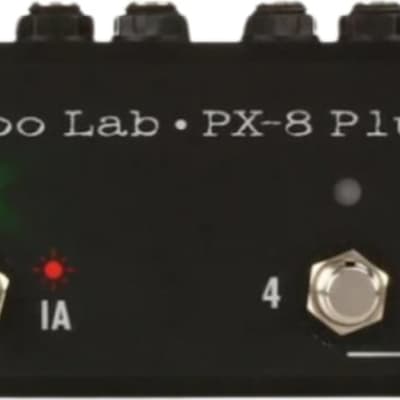

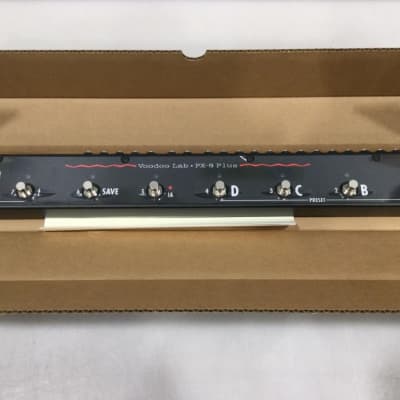

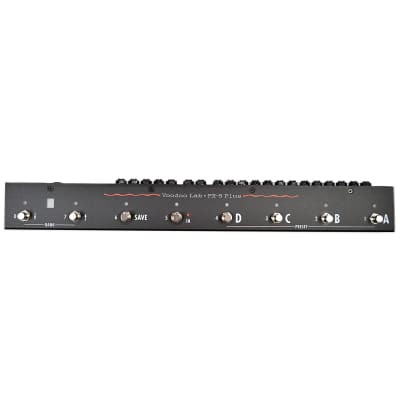

PX-8 Plus 8-loop Pedal Switcher

The Voodoo Lab PX-8 Plus 8-loop Pedal Switcher is a programmable 8-loop audio switcher designed to provide total control over guitar pedalboards. It features independent true bypass audio loops using gold contact relays, allowing access to 36 user-created preset effect combinations. The PX-8 Plus also offers a Stand Alone Instant Access Mode for simple on/off pedal switching function and includes an insert point between loops 6 and 7 for volume pedals and other audio devices.

The pedal switcher is equipped with 8 true-bypass audio loops and 8 premium quality silent-operation footswitches, enabling instant access to effects without touching the pedals. It also includes MIDI in and out for exchanging program change messages with other MIDI-capable devices.

The PX-8 Plus is built with Voodoo Lab Quiet Switching technology and nitrogen-sealed gold-contact relays to provide the most silent operation possible while selecting individual effects or switching between presets. Its audiophile-quality output buffer preserves tone even with long cable runs to the amplifier.

The physical specifications of the PX-8 Plus are as follows:

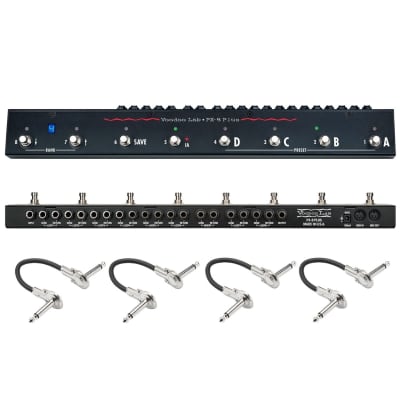

- Inputs: 1/4” mono main audio input, 1/4” mono switchable audio loops (8 send/returns), 1/4” mono non-switchable audio loop (1 send/return)
- Outputs: 1/4” mono main audio output
- MIDI: MIDI In and Out
- Controls/Switches: Silent switching buttons (8) for setting and accessing programs and individual loops
- Power Requirements: 9-12VDC at 100mA, 5.5mm x 2.1mm barrel connector, center negative polarity
- Dimensions: 21.5" x 3" x 2" (546 x 76 x 51 mm)
- Weight: 2.25 lbs. (1 kg)
- Warranty: 5-year warranty in North America. Other regions contact your country's distributor for warranty details.

The PX-8 Plus is hand-built in the USA and housed in a rugged aluminum chassis using the highest quality components. It is designed to meet the demands of professional musicians who depend upon trouble-free operation under rigorous touring conditions.

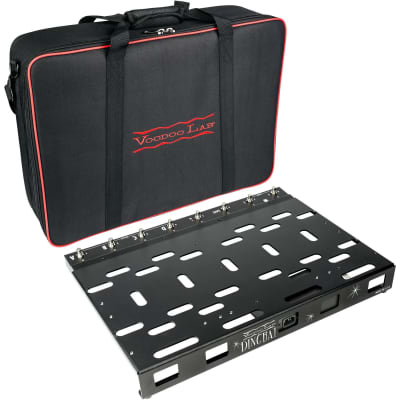

Additionally, the PX-8 Plus is available as part of Voodoo Lab’s Dingbat PX Pedalboard, which features an innovative patented design to mount the switcher beneath the foot of the board, keeping all cabling neatly out of view and preserving maximum space for pedals.
