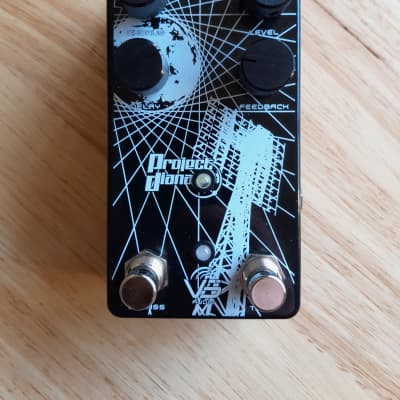

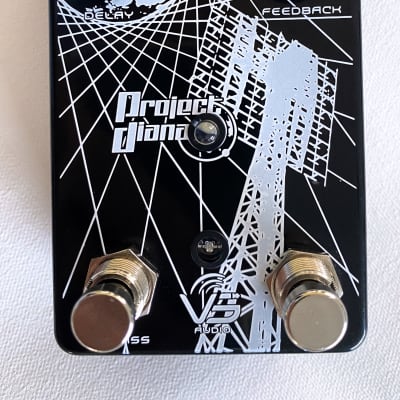

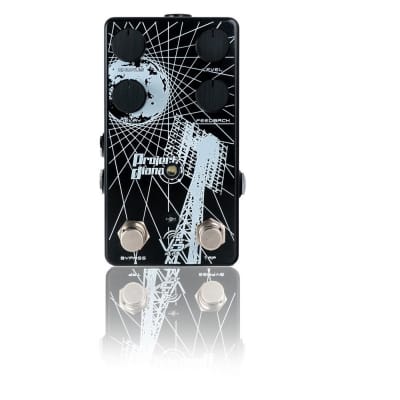

Project Diana by VS Audio

Project Diana by VS Audio

Overview:
Project Diana is a stereo BBD (Bucket-brigade device) analog audio path delay, featuring tap tempo, five different subdivisions, and a maximum delay time of 600ms. It is designed with custom analog anti-aliasing and reconstruction filters, utilizing four original Panasonic MN3008 BBD chips to produce warm tight slap-back echoes and long deep end delay tones.

Controls:
- MIX knob: Controls the blend of wet and dry signals
- FEEDBACK knob: Controls the amount of delay
- DELAY knob: Controls the time of delay
- TAP switch: Sets the delay period between each press of the switch
- FOOTSWITCH: Toggles the effect on/bypass (LED indicates on). When the effect is off and the button is pressed and held for more than 2 seconds, the effect turns on for as long as the button is pressed. With the release of the button, the effect turns off (Parallel Mode).

Division Settings:
There are 5 settings available, including four divisions (3/4, 2/3, 1/2, 1/3) and the home position (4/4). Switching between divisions is achieved by pressing and holding the tap switch and then flipping the delay knob to the desired division. After the desired division is stored, both tap switch and delay knob react to the current division setting.

Features:
- 550ms Analog Delay
- Four Original MN3008 BBD
- Tap Tempo
- Four Tap Divisions
- Parallel Mode Relay Switching
- True Bypass
- Aluminium Knobs
- Silkscreen Layout
- Powder Coated Aluminum Enclosure

Specifications:
- Input impedance: > 1MΩ
- Output impedance: < 10kΩ
- Current Draw: 15mA
- Power Supply: 9V DC
- Dimensions: 95mm (W) x 145mm (D) x 49.10 mm (H)
