Pork & Pickle

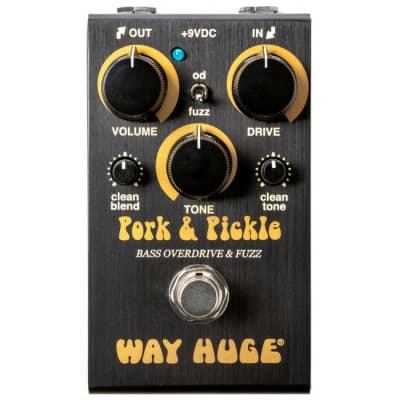

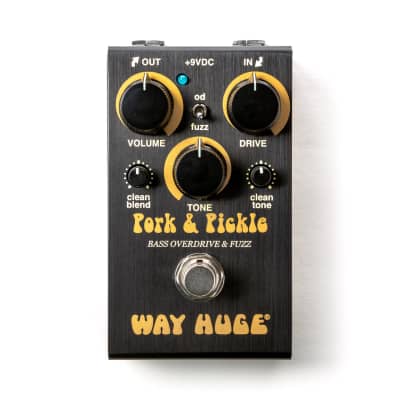

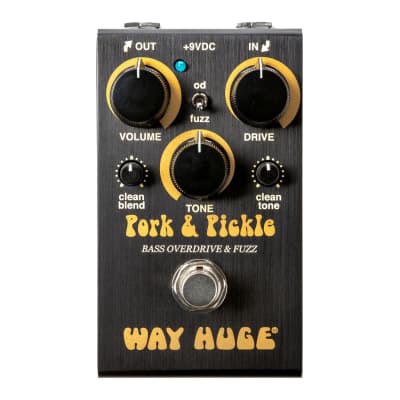

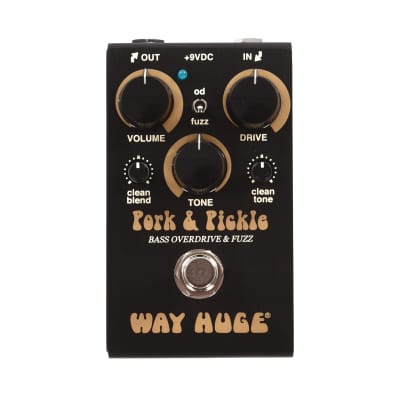

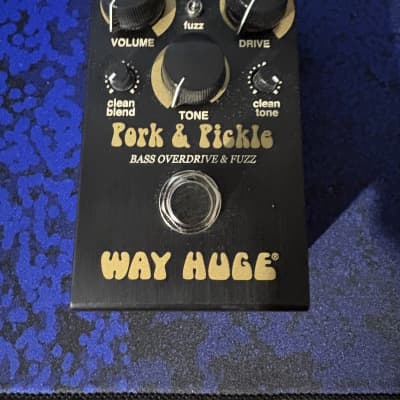

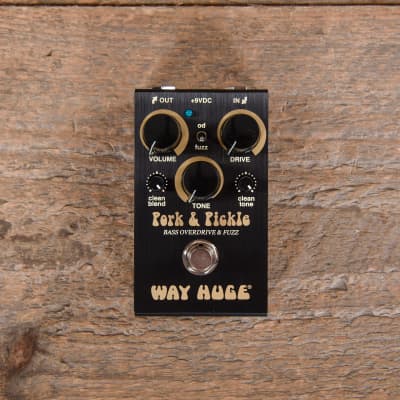

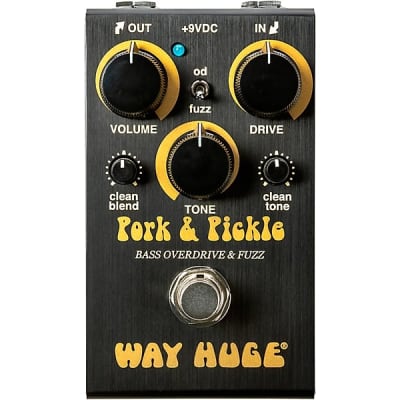

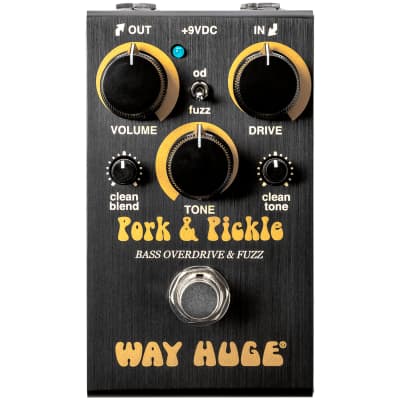

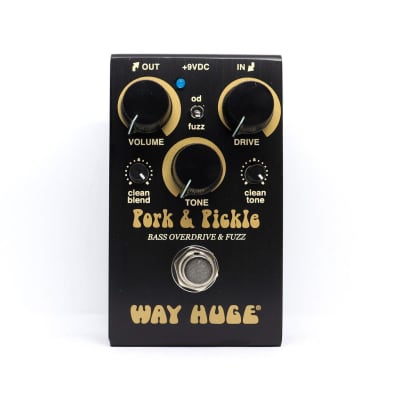

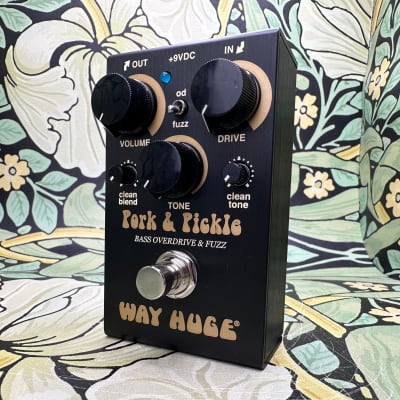

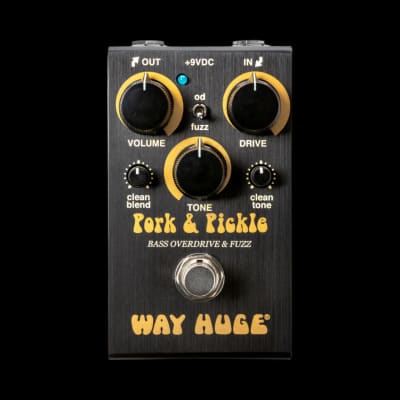

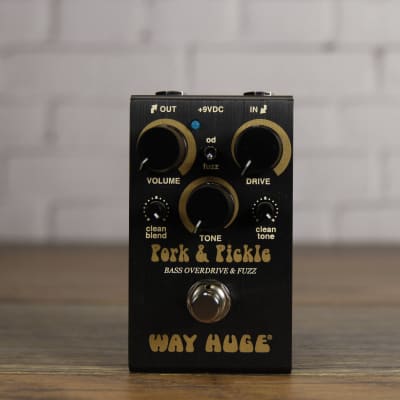

The Way Huge Pork & Pickle Bass Overdrive & Fuzz pedal, now available in the Smalls housing, combines the warm, soft-clipping tones of the Pork Loin Overdrive and the rich, fatty tones of the Russian-Pickle Fuzz in a single pedalboard-friendly package. The pedal features the following technical specifications:

External Controls:
1. CLEAN BLEND knob: Mixes clean signal with OD or fuzz
2. VOLUME knob: Sets output level
3. OD/FUZZ switch: Toggles OD & fuzz circuits
4. DRIVE knob: Sets overdrive or fuzz intensity
5. CLEAN TONE knob: Adjusts clean signal from mellow to bright
6. TONE knob: Cuts highs of OD signal or shapes EQ of fuzz signal
7. FOOTSWITCH: Toggles the effect on/bypass (blue LED indicates effect is on)

Internal Controls:
1. FUZZ OUTPUT trimpot: Adjusts mix of fuzz signal
2. CURVE trimpot: Fine-tunes corner frequencies of OD signal
3. PRESENCE trimpot: Tweaks high end of OD signal
4. OVERDRIVE OUTPUT trimpot: Adjusts mix of OD signal

Specifications:
- Input Impedance: > 1MΩ
- Output Impedance: < 25 kΩ
- Signal to Noise Ratio (all controls @ MID position): 90 dBV ‘A’ Weighted
- Noise Floor*: -96 dBV
- Bypass: True Bypass
- Current Draw: 18.5 mA @ 9VDC
- Power Supply: 9 Volts DC
- Power Options: 9-volt battery, Dunlop ECB003 9-volt adapter, or DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included)

Dimensions:
- 4.78” x 3.75” x 2.5”

Power:
- Can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

The Pork & Pickle Bass Overdrive & Fuzz pedal is designed to provide bass players with a versatile range of overdrive and fuzz tones, making it suitable for a variety of musical styles and applications.
