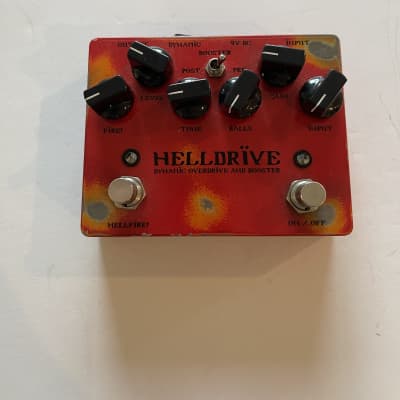

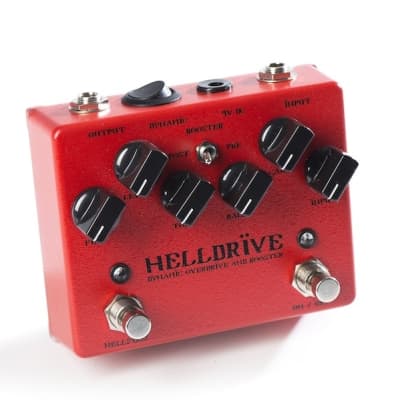

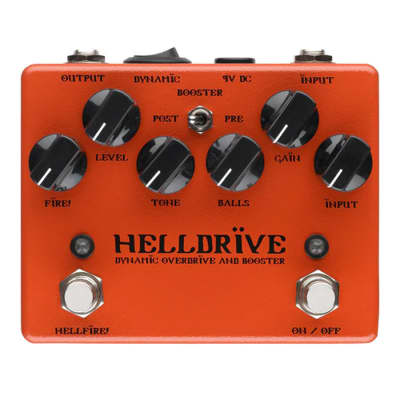

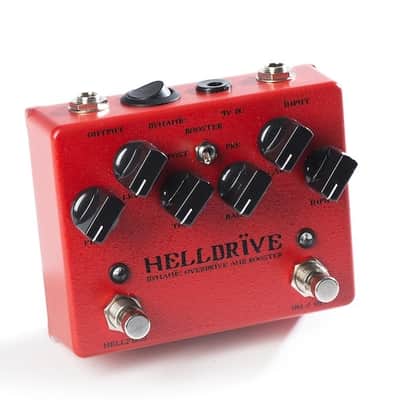

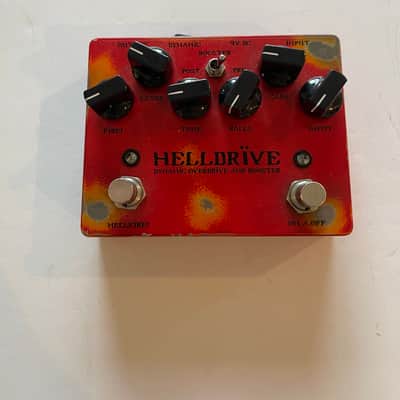

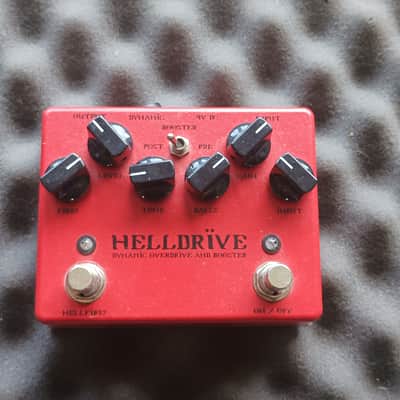

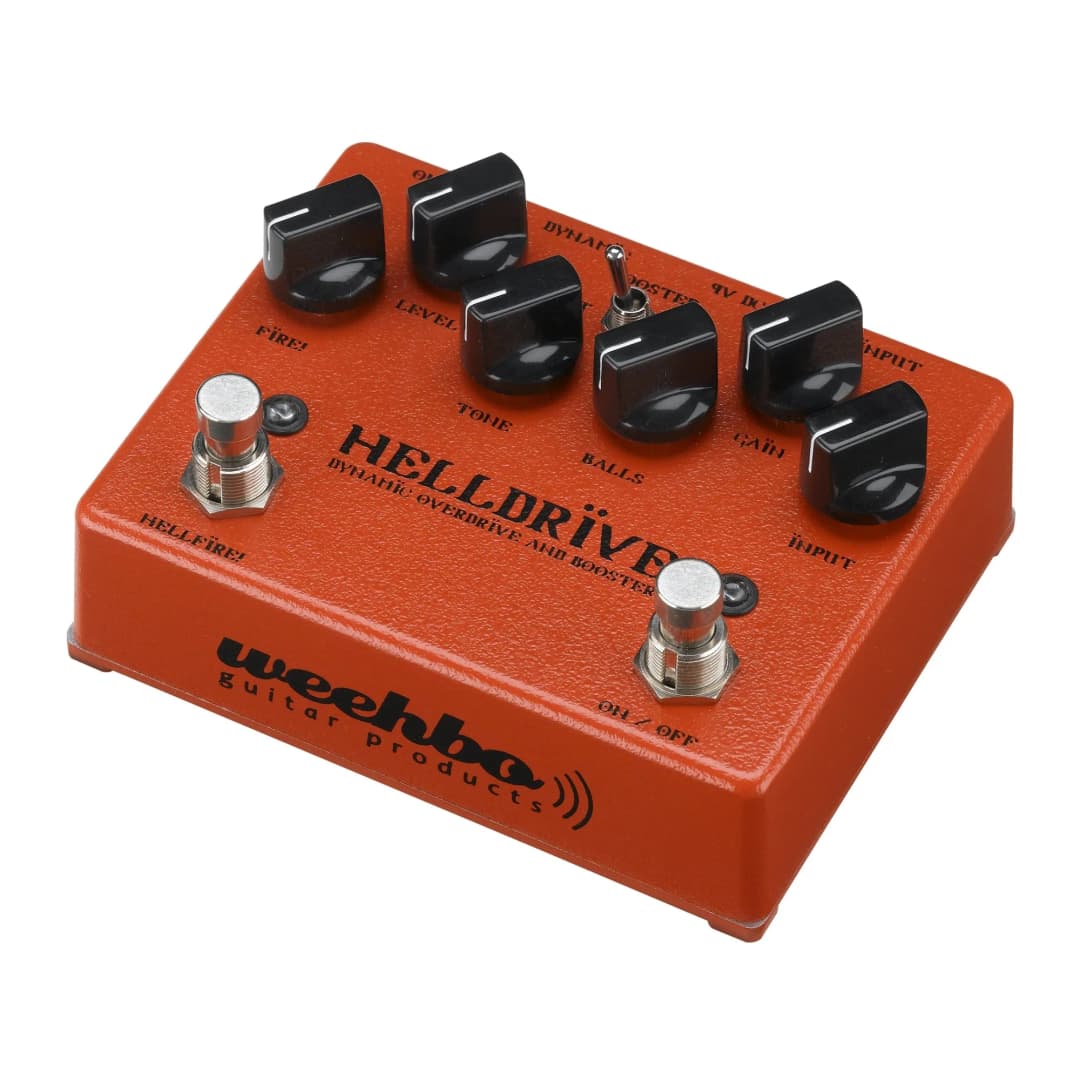

Helldrive

The Helldrive by Weehbo is a versatile and dynamic low to medium gain overdrive pedal designed to offer a wide range of different sounds based on the player's technique while preserving the character of the instrument. The gain structure is inherently dirty with a characteristic midrange reminiscent of typical British-sounding amplifiers.

Technical Specifications:
- Supply Voltage: 9V DC
- Current Draw: 68mA (73mA @ 18V)
- Controls: Input, Gain, Balls, Tone, Level, Fire! (Trimmer Presence, Bass, Gain!, Bass!, Tone! )
- Switches: On/Off (True Bypass), Hellfire! (True Bypass), Booster, Dynamic
- Jacks: Input, Output, 9V DC
- Indicator: LEDs 5mm rot, ultrabright
- Dimensions: Approximately 120 x 95 x 55 mm
- Weight: Approximately 360 g

Features:
- INPUT: Controls the input impedance and amount of bass
- GAIN: Controls the amount of distortion, offering low to medium gain
- BALLS, TONE: Affects mids and compression, with high cut
- LEVEL: Determines the overall volume
- FIRE! : Controls the booster's volume
- BOOSTER: Booster-overdrive (pre), overdrive-booster (post)
- DYNAMIC: Internal supply voltage: 9V (left), 18V (right)

The Helldrive also features trimmer resistors inside to allow players to achieve their desired sound. The booster can be activated to provide either more gain (pre) or volume (post), with trimmer resistors available for adjustment.
