IMP 2

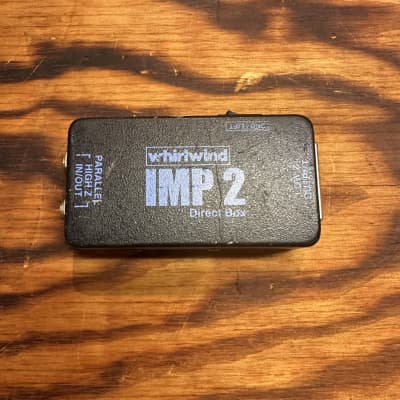

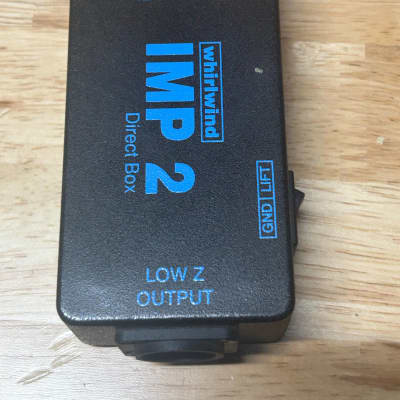

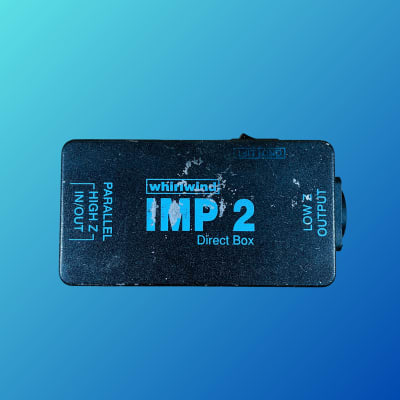

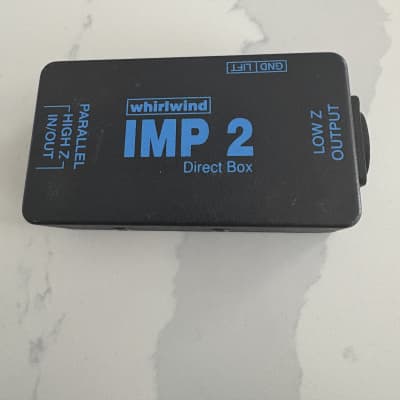

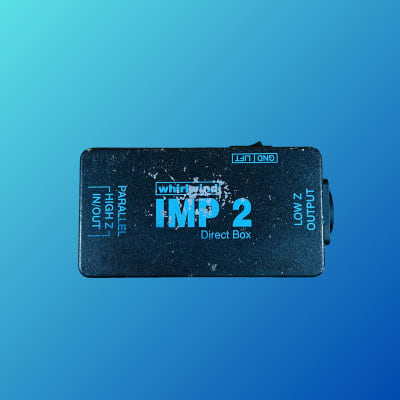

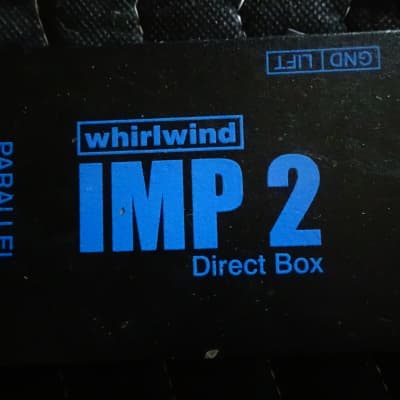

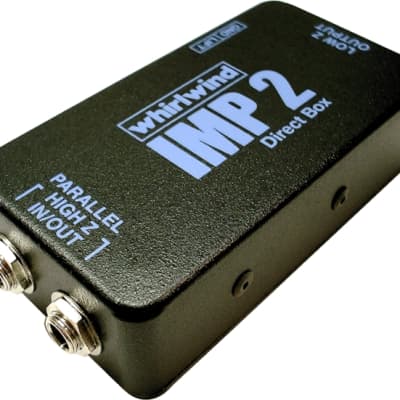

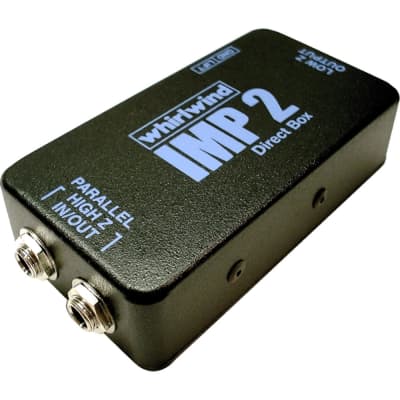

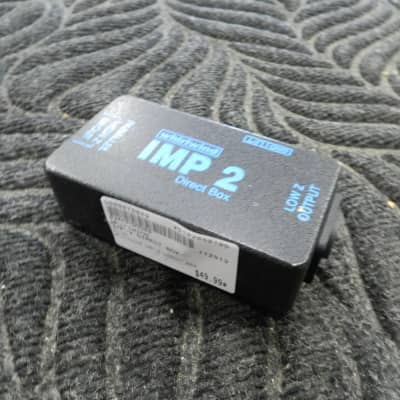

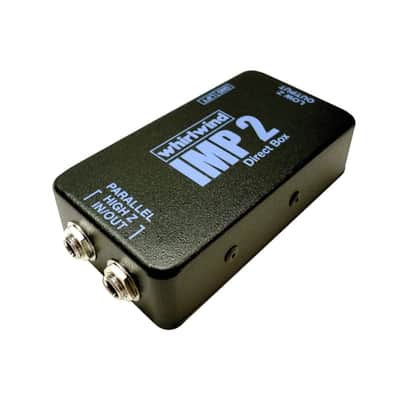

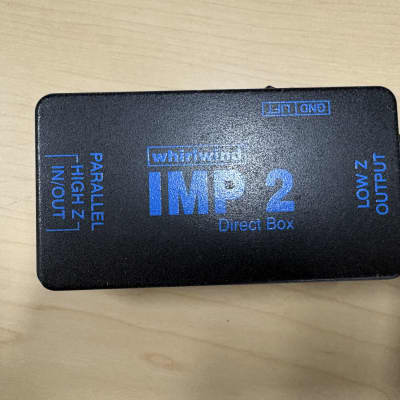

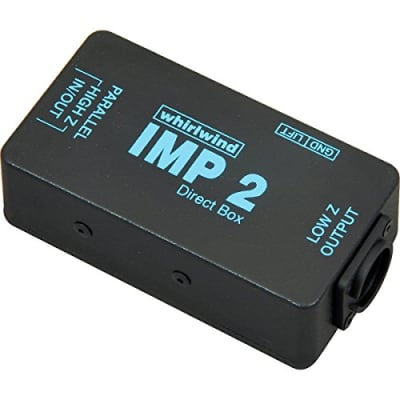

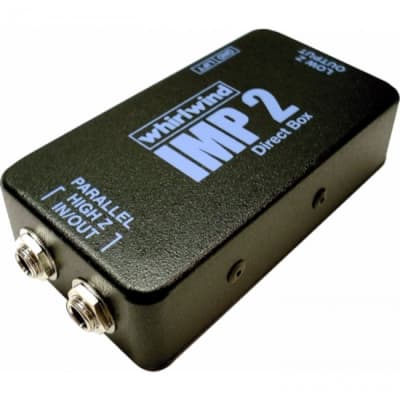

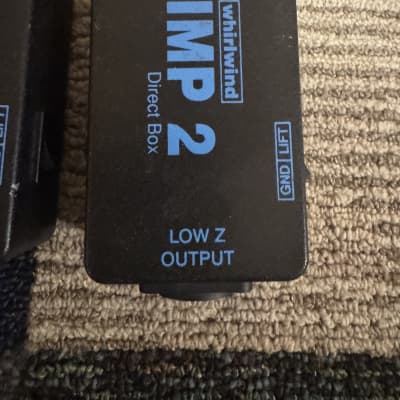

The Whirlwind IMP 2 is a rugged, single-channel, passive direct box designed to convert a line- or instrument-level unbalanced signal to a low impedance mic level balanced signal. It features 1/4" parallel wired in/out jacks and a ground lift switch to help isolate hum and buzz. The IMP 2 utilizes Whirlwind's TRHL transformer and has an impedance ratio (input to output) of 133:1, a frequency response of 20Hz-20kHz ±1dB, and a level change (input to output) of -20dB. The unit is built for professional quality and durability in an economical package.

Specifications:
- Type: Passive DI
- Channels: 1
- Ground Lift: Yes
- Inputs: 1 x 1/4"
- Outputs: 1 x XLR, 1 x 1/4" thru
- Impedance Ratio (input to output): 133:1
- Frequency Response: 20Hz-20kHz ±1dB
- Level Change (input to output): -20dB

Dimensions and Weight:
- Weight: 2.39 ounces
- Product Dimensions: 7.35 x 6.85 x 2 inches

The IMP 2 is widely recognized for its reliability and is commonly used in professional audio systems for various applications, including live sound, studio recording, and broadcast environments.
