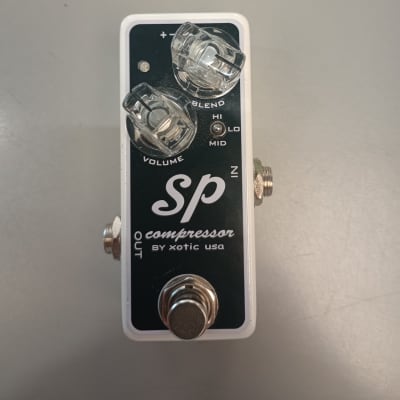

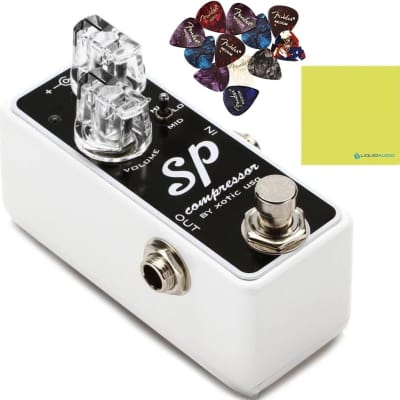

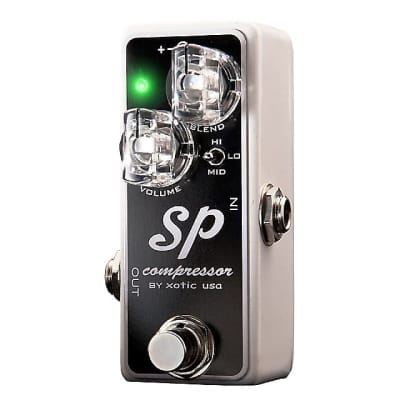

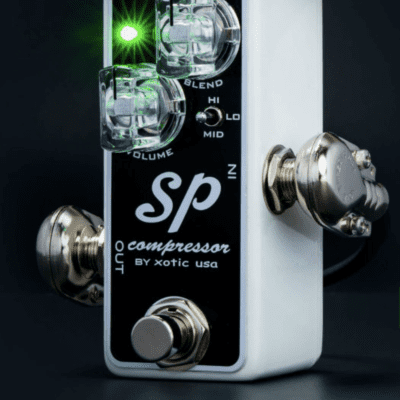

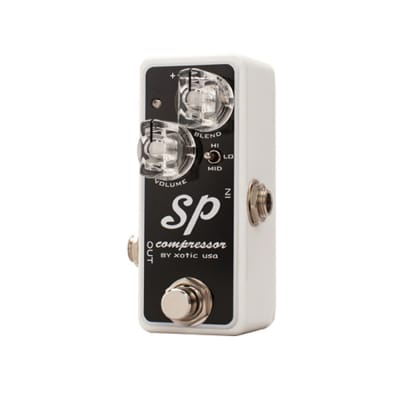

SP Compressor Pedal

The SP Compressor Pedal by Xotic Effects is a versatile and compact compressor pedal designed for guitar players. It incorporates OTA (operational transconductance amplifier) technology, similar to the renowned Ross Compressor, to deliver a wide variety of compressor tones, ranging from vintage to subtle to modern.

Technical Specifications:
- Dimensions (W/D/H): 3.5" x 1.5" x 1.5" (89mm x 38mm x 38mm)
- Weight: 0.57 lbs. (260g)
- True Bypass Switching
- Power Consumption: 9VDC/5mA
- Battery Type: 9VDC (006P) x 1
- AC Adapter (Optional): 9VDC, Negative Tips (Regulated)
- Input Impedance: 1M ohm
- Output Impedance: 10k ohm
- Nominal Input signal level: -20dB (100mVrms)

Features:
- Dry blend knob for flexibility
- Up to +15dB of boost
- Internal dip switch for attack control
- True bypass for eliminating signal interference when switched off
- Can be used with AC adaptor (optional) or 9V Battery

The compact design and powerful features make the SP Compressor Pedal a valuable tool for working musicians, offering high-quality tone and flexibility in a small footprint.
