G5n

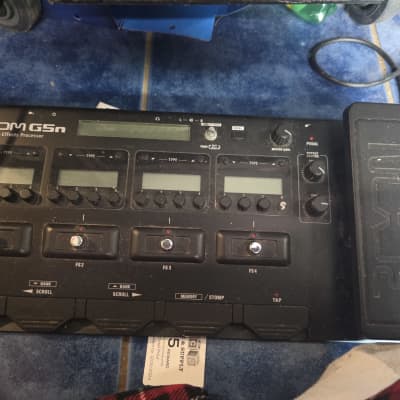

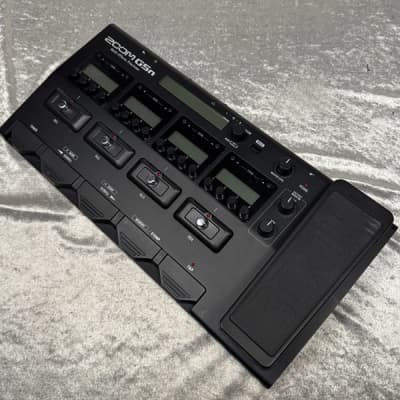

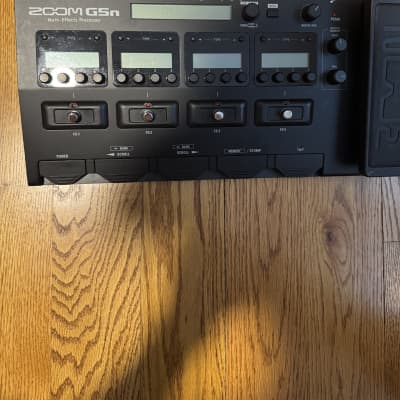

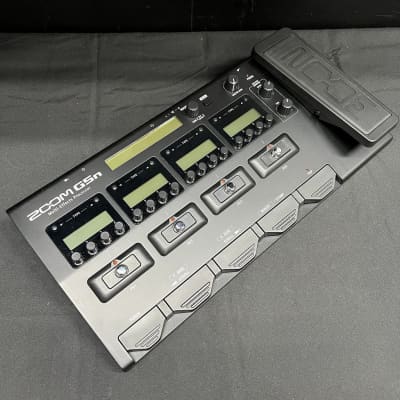

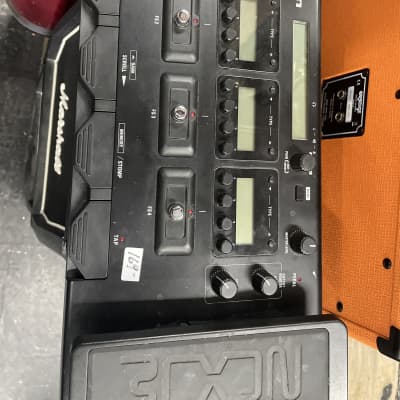

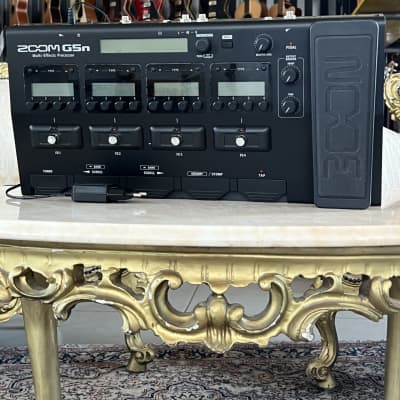

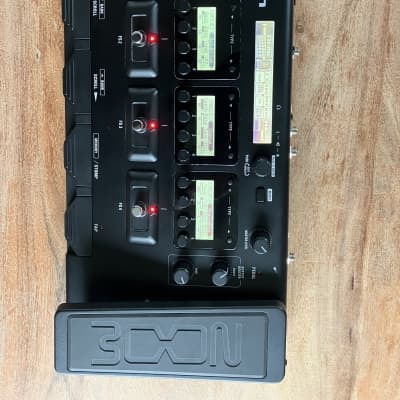

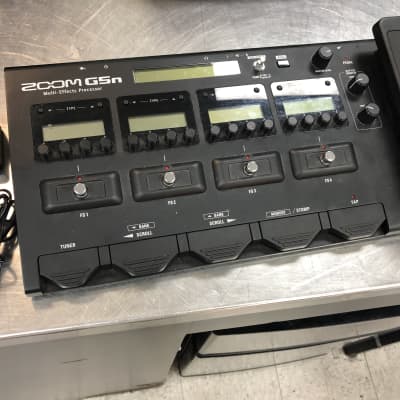

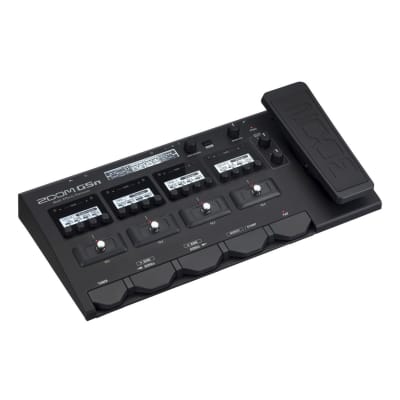

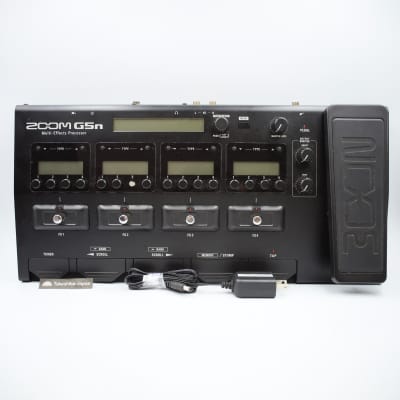

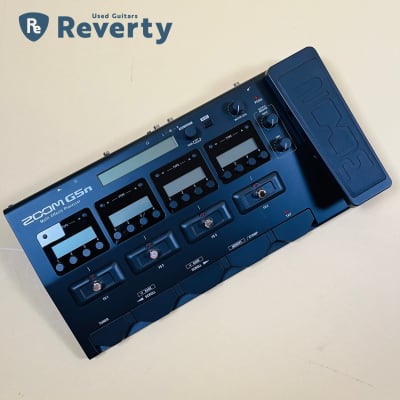

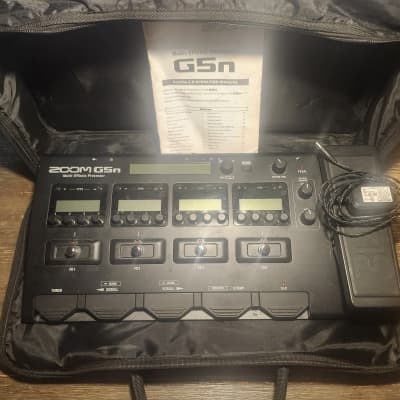

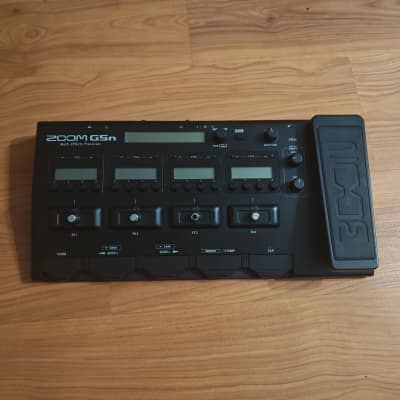

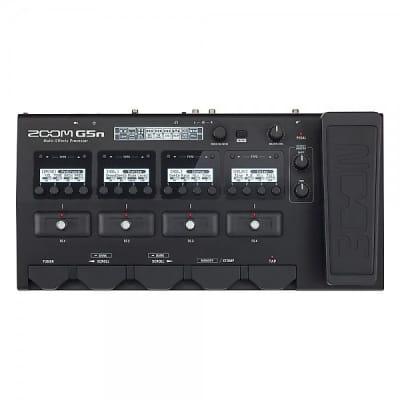

The Zoom G5n is a multi-effects processor designed to offer a wide array of features and capabilities for guitarists. Here are the technical specifications and details:

- The G5n comes equipped with 100 newly assembled DSP effects and 26 realistic amp/cabinet emulators.
- It offers 68 onboard high-quality digital effects, including distortion, overdrive, EQ, compression, delay, reverb, flanging, phasing, vibrato, and chorusing.
- The pedal features 5 new amp emulators and 5 cabinet emulators, allowing for a diverse range of tonal possibilities.
- Users can utilize up to 9 effects simultaneously, chained together in any order, providing the flexibility of multiple pedalboards in one compact device.
- The G5n includes 100 custom-designed factory patches, with the ability to store up to 200 custom effects-chains as patches in memory.

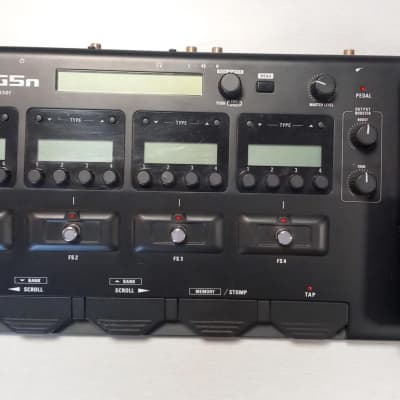

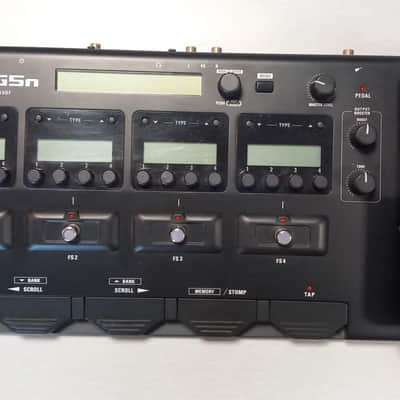

- It features a large overview display for easy editing, along with four independent editing displays for precise sound adjustments.

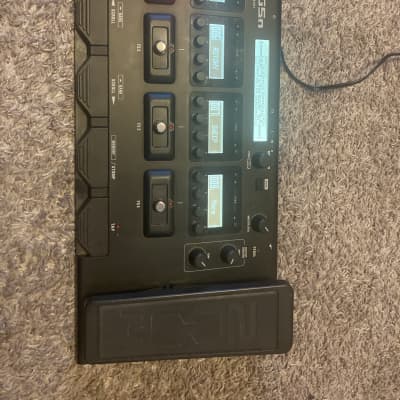

- The expression pedal provides real-time control over volume, tone, or selected effects parameters, and there are four stompbox-style footswitches for effect manipulation.
- The pedal also offers a built-in chromatic tuner, a two-unit looper function, and 68 built-in rhythm patterns for practice and performance versatility.
- It can be easily integrated into live performances or studio rigs, with standard guitar input, auxiliary stereo input, headphone jack, and dual outputs for mono or stereo L/R connection to various audio systems.
- The G5n is equipped with a USB port for firmware updating and patch/effects downloading, and it can also function as a USB audio interface for Mac/Windows computers.

Technical Specifications:
- Effect types: 78 (68 DSP effects, 5 amp emulators, 5 cabinet simulators)
- Number of simultaneous effects: 9
- Number of user banks/patches: 200
- Sampling frequency: 44.1kHz
- A/D conversion: 24-bit with 128x oversampling
- D/A conversion: 24-bit with 128x oversampling
- Signal processing: 32-bit
- Frequency characteristics: 20–20kHz +1dB, -3dB (10 kohm load)
- Inputs: Standard monaural phone jack, AUX IN stereo mini jack
- Outputs: L/R standard monaural phone jack x 2, Phone stereo mini jack
- Control input: Zoom FP01/FP02
- Power: AC adapter DC9V (center minus plug), 500 mA
- USB: USB Audio
- Dimensions (DxWxH): 225 mm x 454 mm x 75 mm
- Weight: 3.4 kg

The G5n also comes with the Zoom Guitar Lab software, allowing users to download new patches, effects, and amp/cabinet simulators, and providing a user-friendly interface for effects management and customization.
