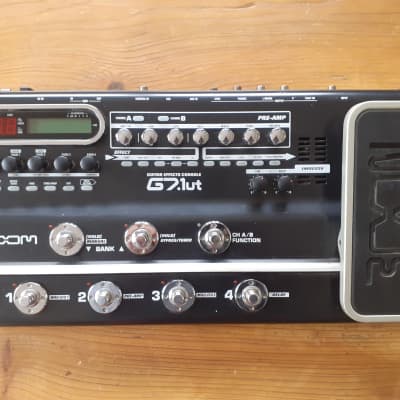

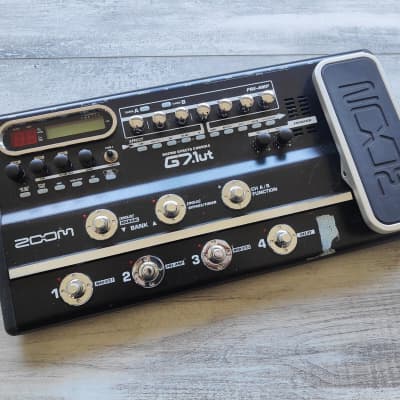

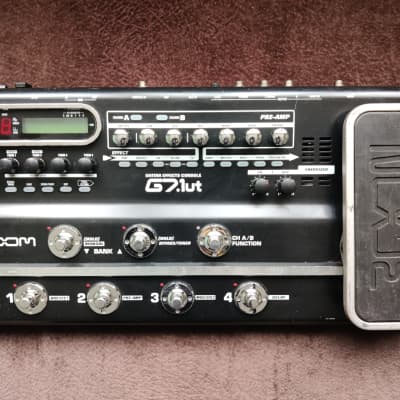

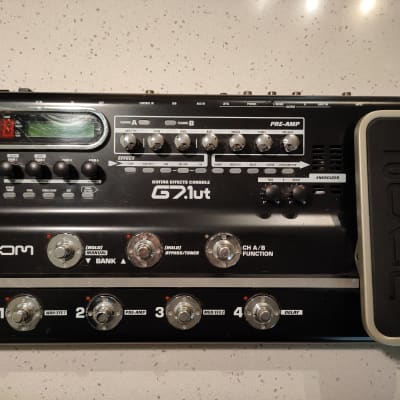

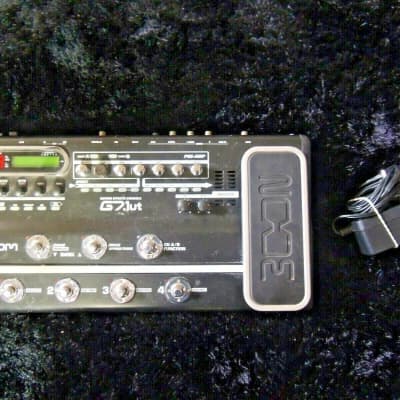

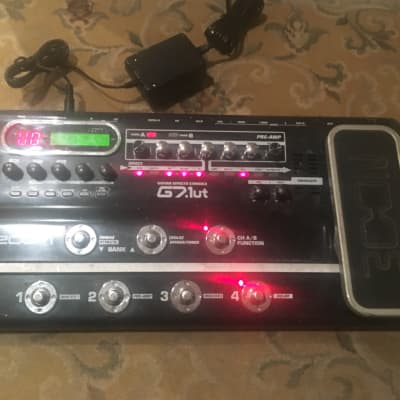

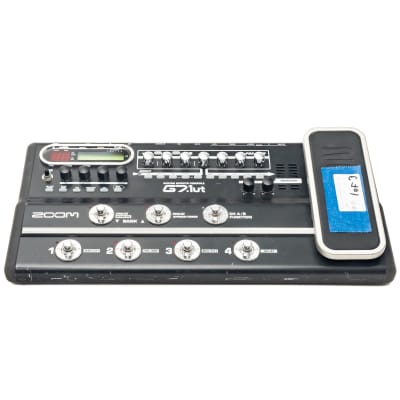

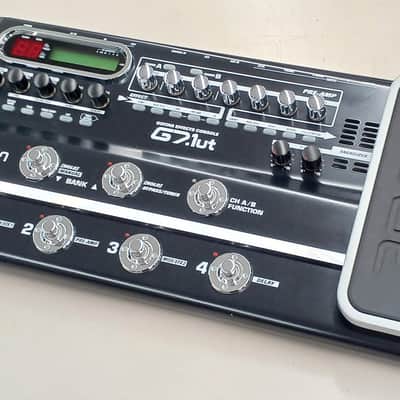

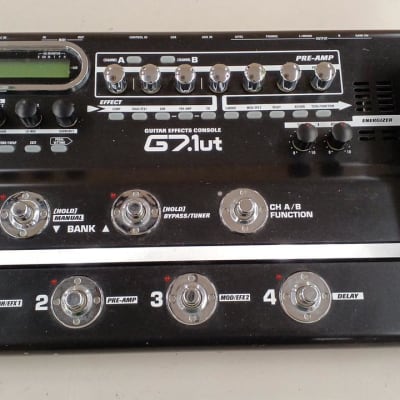

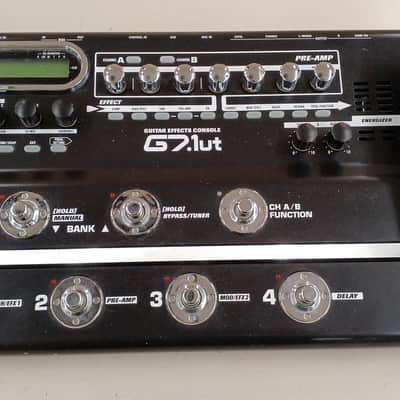

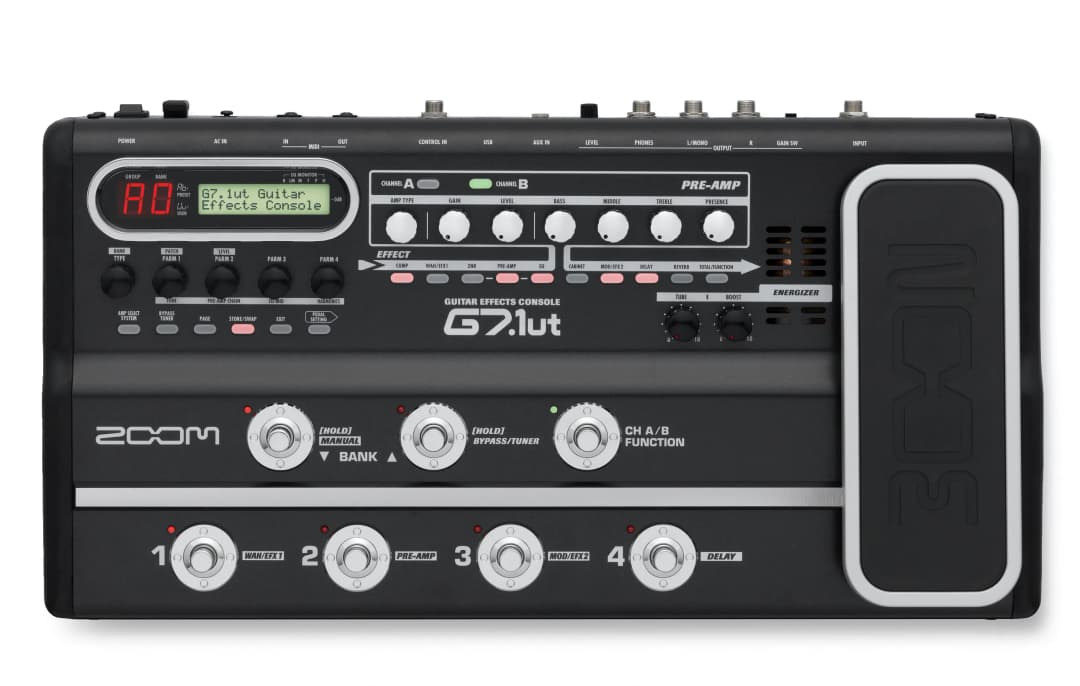

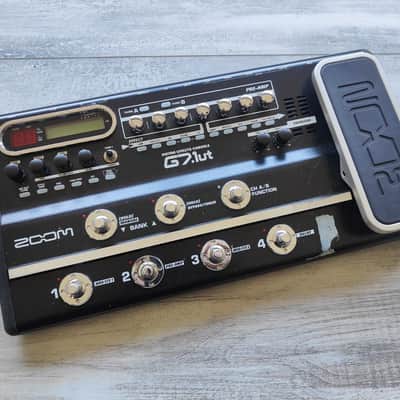

G7.1ut

The Zoom G7.1ut is a versatile tube guitar multi-effects pedal with a range of features and functionalities. Here are the technical specifications and detailed information:

- Effect Types: 92
- Effect Modules: 9
- Maximum Simultaneous Effects: 9
- Patch Memory: User 80 + Preset 80, Total 160
- Sampling Frequency: 96kHz
- A/D Conversion: 24-bit, 64 times over-sampling
- D/A Conversion: 24-bit, 128 times over-sampling
- Signal Processing: 32-bit
- Frequency Response: 20Hz-40kHz +1.0dB/-3.0dB (10kohm load)
- Guitar Input: 1/4" phone jack (Rated input level: -10dBm, Input impedance: 1Mohm)
- AUX Input: 1/8" stereo phone jack (Rated input level: -10dBm, Input impedance: 10kohm)
- Line Output (L/MONO, R): 2 x 1/4" phone jack (Rated output level: -10dBm/+4dBm, Maximum output level: +19dBm, Output load impedance: 10kohm or more, Output Impedance: 1kohm)
- Headphone Output: 1/8" stereo phone jack (Rated output: 60mW / 32ohm load, 20mW / 300ohm, Output impedance: 47kohm)
- Tube Circuitry: 12AX7
- Control Input: FP02
- MIDI: IN / OUT
- USB Interface: 16-bit, 32kHz/44.1kHz/48kHz
- Display: 2-digit 7-segment LED display, backlit LCD
- Power Requirements: 15V AC, 1.5A
- Dimensions: 460(W) x 235(D) x 81(H)mm
- Weight: 4.0kg

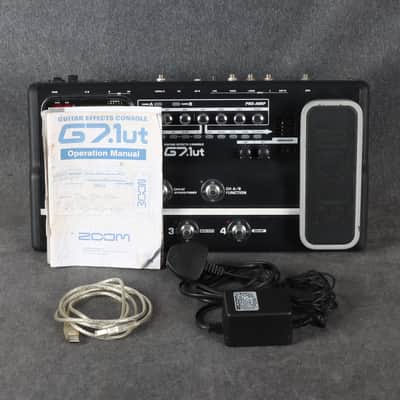

- Supplied Accessory: AC adaptor (AD-0012)

The G7.1ut features a tube energizer using a 12AX7 tube, providing warm crunch with rich harmonics. It also includes ZFX-3, a 32-bit DSP designed by Zoom, ensuring outstanding performance and detailed signal processing. The pedal offers DSP sound modeling combined with tube circuitry to create the ultimate in distortion, with 96kHz sampling and 24-bit A/D/A conversion for super high- resolution sound.

The preamp section includes two channels per patch, allowing easy selection between a Fender clean sound for rhythm and a Marshall drive sound for lead. The built-in EQ module features six frequency bands optimized for electric guitar, ensuring the shortest possible route from inspiration to actual sound.

The G7.1ut is also equipped with a wide choice of high-quality guitar sound effects, including 92 effects in 9 modules, and preset patches ready to use for recording or live performance. It features an intuitive interface great for stage use, real-time modulation for 4 simultaneous parameters, and the world's fastest patch change speed of 7ms.

Additionally, the pedal functions as a USB audio interface, allowing it to be used in a computer-based recording system. It also supports MIDI IN/OUT jacks for linking to other equipment and AUX IN jacks for accommodating external sources.

The G7.1ut is housed in a sturdy metal chassis with rubber damping for superior toughness and durability. It also includes a built-in tuner, ZNR noise reduction, and ultra-low noise design with a 120dB S/N ratio and -100dB noise floor.

Overall, the Zoom G7.1ut offers a comprehensive set of features and technical specifications, making it a versatile and powerful tool for guitarists.
