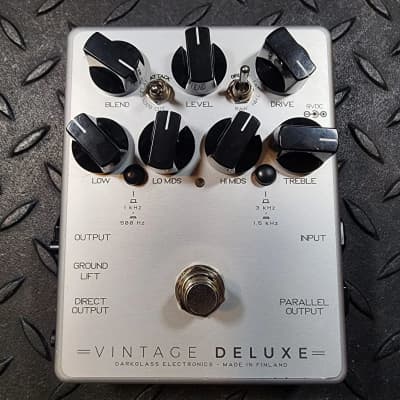

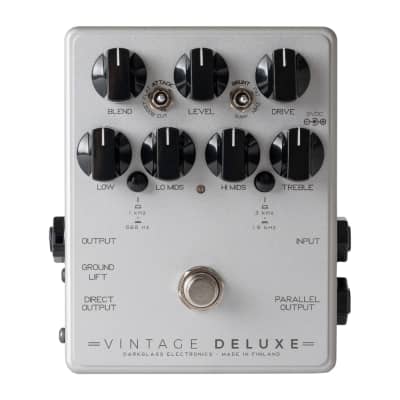

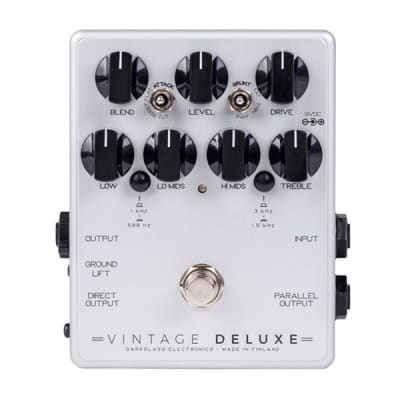

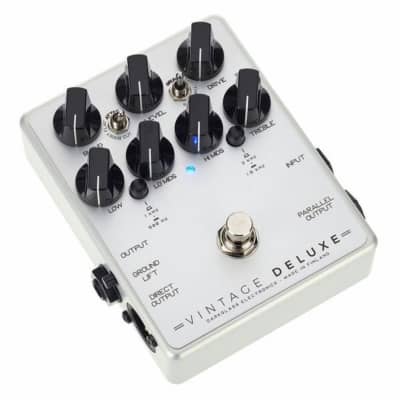

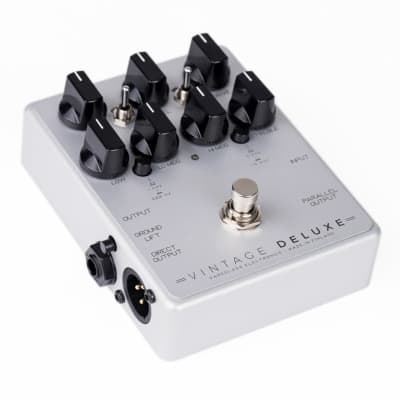

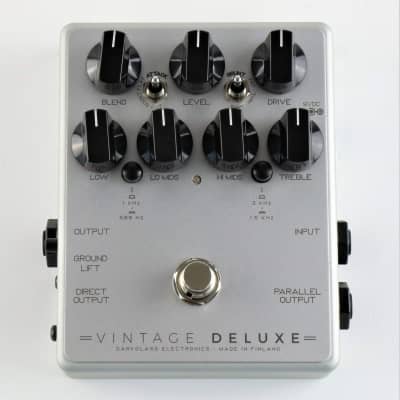

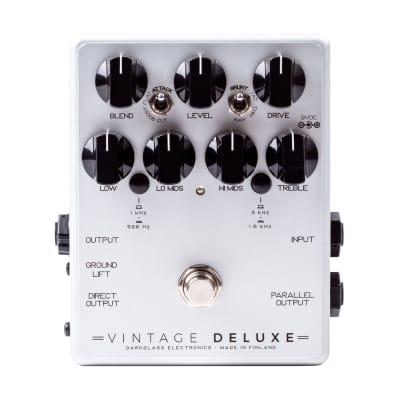

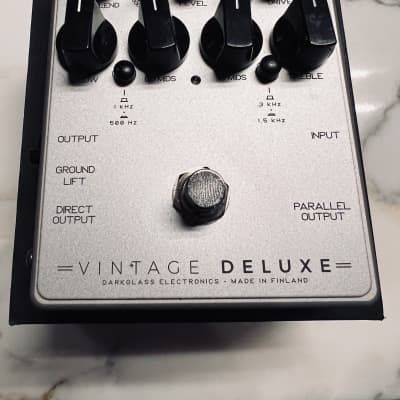

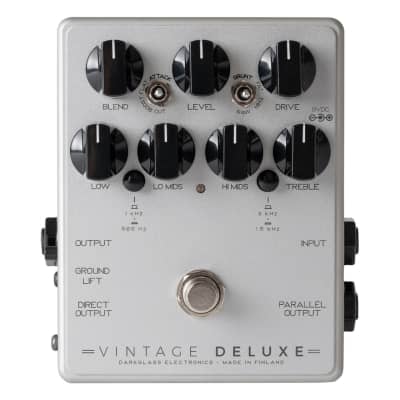

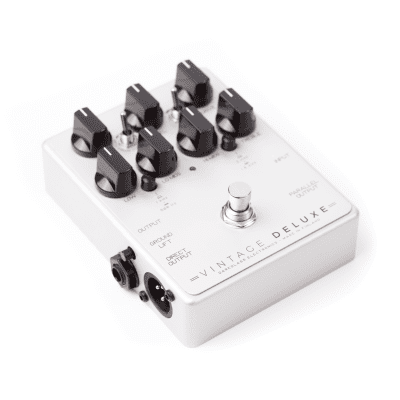

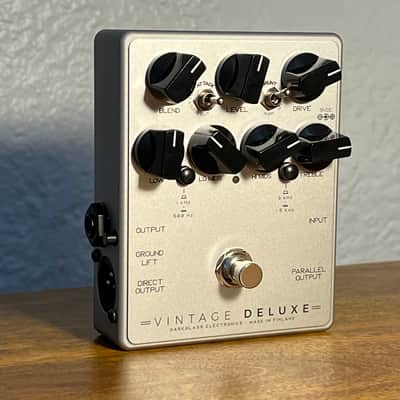

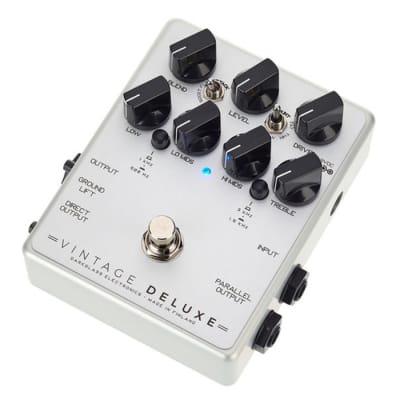

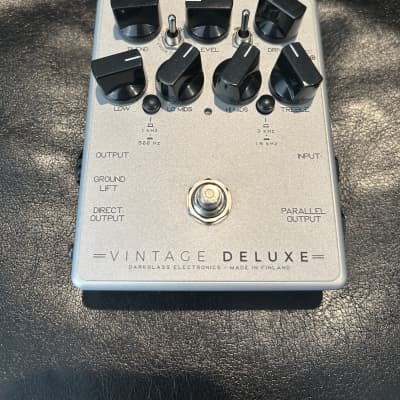

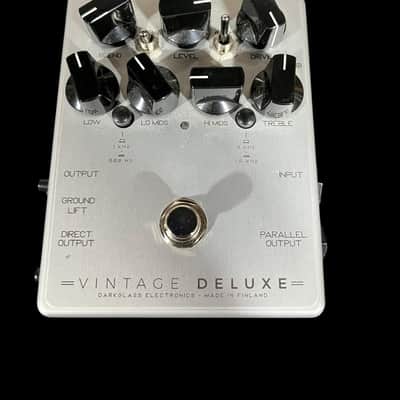

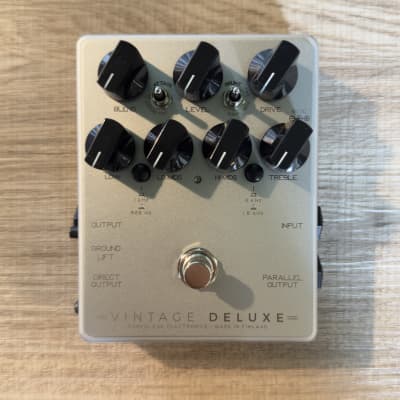

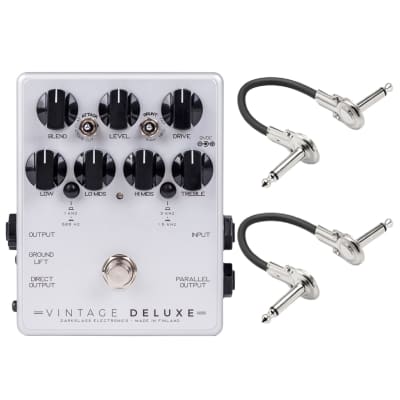

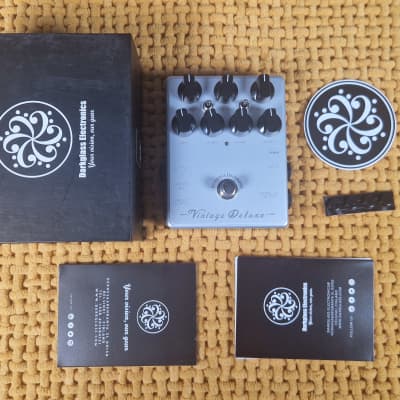

Vintage Deluxe V3

The Vintage Deluxe V3 by Darkglass Electronics is a bass preamp pedal designed to provide uncompromised precision and premium tone. Here are the technical specifications and features:

- Input Impedance: 500kΩ
- Output Impedance: 1kΩ
- Current Consumption: ~20mA
- Voltage: 9V DC (Center Negative)
- Dimensions: Width 94 mm / 3.7″, Length 120 mm / 4.72″, Height 46 mm / 1.81″
- Weight: 320 g / 0.7 lb

Controls:
- Blend: Mixes the clean input signal with the overdriven signal
- Level: Sets the volume of the overdriven signal
- Drive: Sets the amount of saturation in the overdriven signal
- Grunt Switch: Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage
- Attack Switch: Sets the amount of treble content to saturate

Equalization:
- Low: ±12dB @ 100Hz
- Low Mids: ±12dB @ 1kHz
- Hi Mids: ±12dB @ 3 kHz
- Treble: ±12dB @ 5kHz
- Low Mids Switch: Changes the center frequency of the Low Mids from 1kHz to 500Hz
- Hi Mids Switch: Changes the center frequency of the Hi Mids from 3kHz to 1.5kHz

The Vintage Deluxe V3 is designed with a warning that it has a current draw of 30mA and should only use a regulated 9V DC adapter with a center-negative plug to avoid suboptimal noise performance and potential damage to the unit.

For warranty activation, users are encouraged to register the product on the manufacturer's website and enter the serial number on the back of the pedal.
