Simplifier Guitar Pedal By DSM & Humboldt Electronics

Simplifier

Pedal Manufacturer

DSM & Humboldt Electronics

Description

The Simplifier by DSM & Humboldt Electronics has the following technical specifications and features:

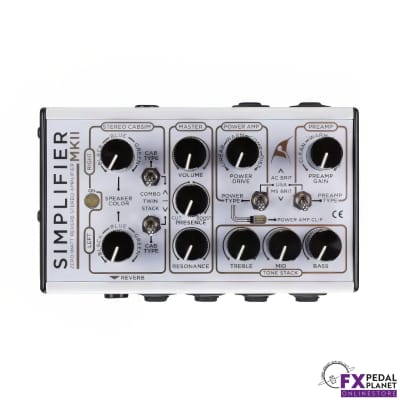

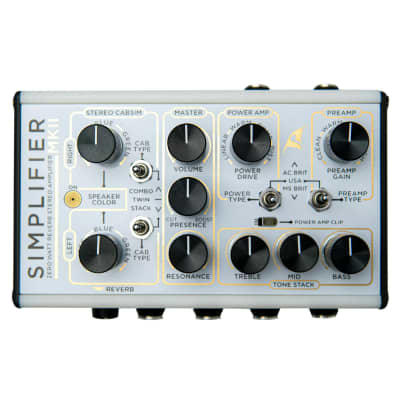

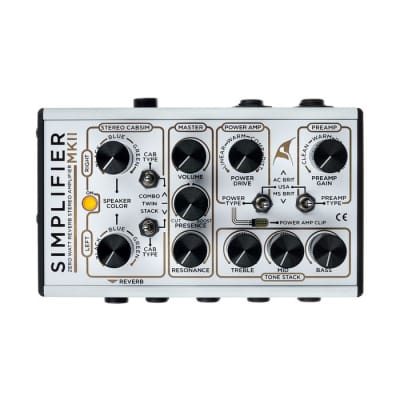

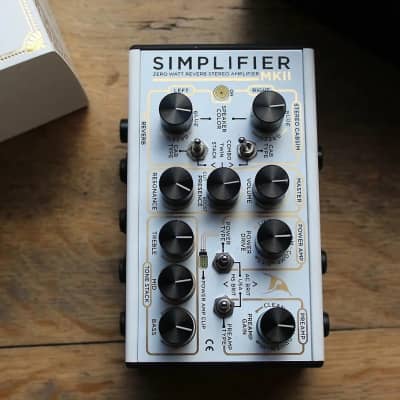

Simplifier MK-II:
- Weight: 360 grams (0.8 lb)
- Dimensions: 120 x 70 x 45 mm (4.7 x 2.7 x 1.8 inches)
- Power supply requirements:
- Voltage: 9 to 12V DC regulated
- Connector: 2.1mm DC jack, Center negative
- Current consumption: 150mA
- Recommended supply current: 200mA and up
- Input Impedance:
- Input: 1Meg Ohm
- L & R return: 1Meg Ohm
- Output impedance:
- Send: 1K Ohm
- Unbalanced Outputs: 4.7K Ohms
- Balanced Outputs: 100 Ohms
- Headphone amp specs:
- Power: 135mW into 32 Ohms
- Compatible with 16, 32, 64, and 96 Ohm headphones
- Loss of power can occur with higher impedance headphones

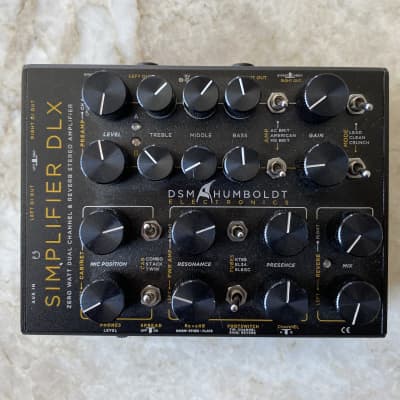

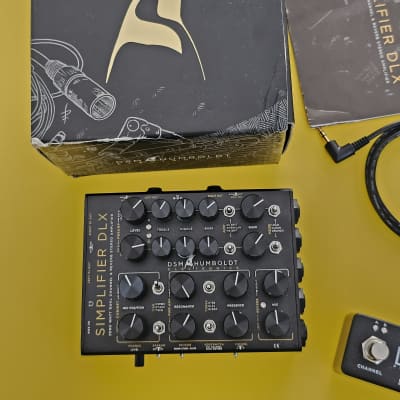

Simplifier DLX:
- Ultra connectivity platform for stereo 2-channel amplifier or 2-parallel amplifiers
- Two fully independent preamps capable of modeling iconic amplifier tones
- Multi-stage stereo reverb with mix control for each channel independently
- Other features include left and right power amp SIM, two independent CABSIMS, high-grade headphone amp with AUX input, heavy-duty self-designed anodized aluminum case, low power consumption, and compact size
- Weight: 580 grams (1 pound)
- Dimensions: 13.5 x 10 x 5.8 cm (5.1 x 3.9 x 2.5 inches)

These details provide a comprehensive overview of the technical specifications and features of the Simplifier by DSM & Humboldt Electronics.

Watch something on YouTube

Watch Simplifier Videos, Demos, and Reviews

Watch the latest video demos and reviews for the Simplifier from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

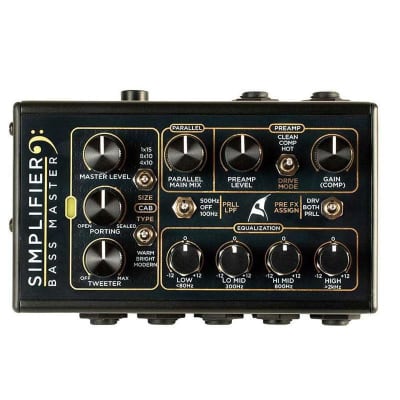

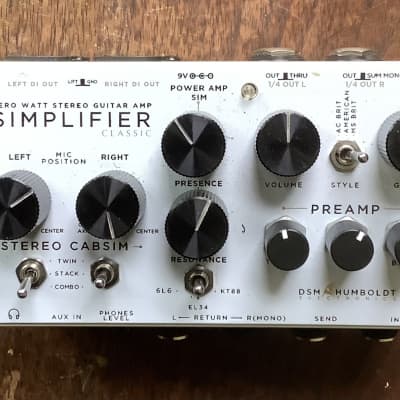

Find DSM & Humboldt Electronics Simplifier Listings on Reverb
