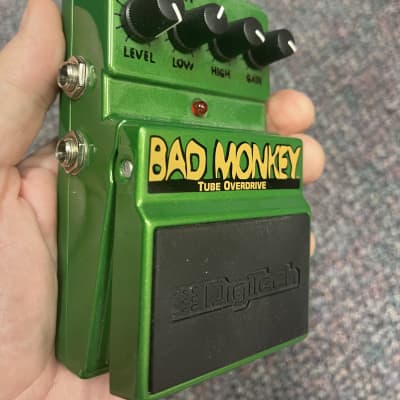

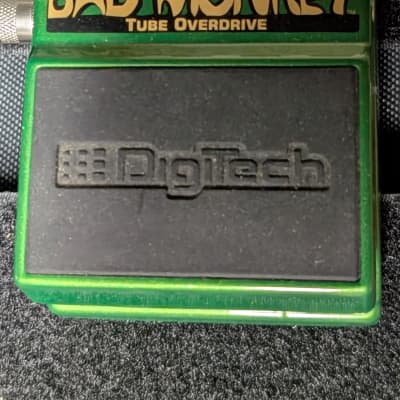

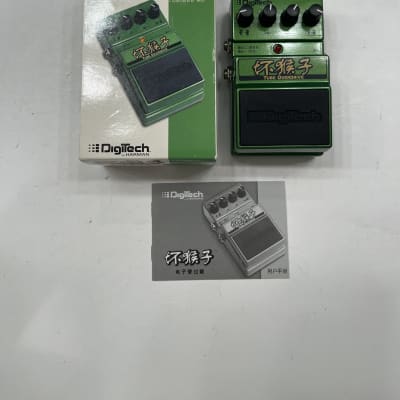

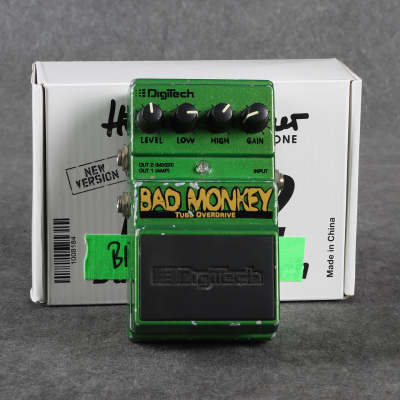

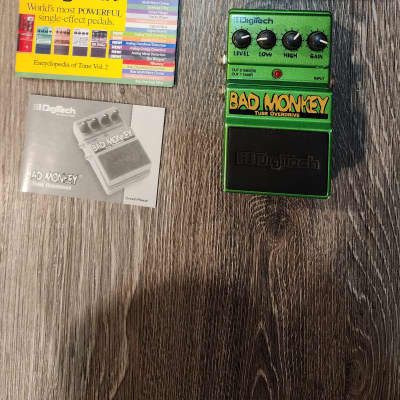

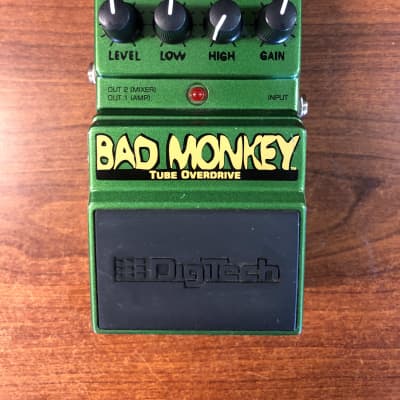

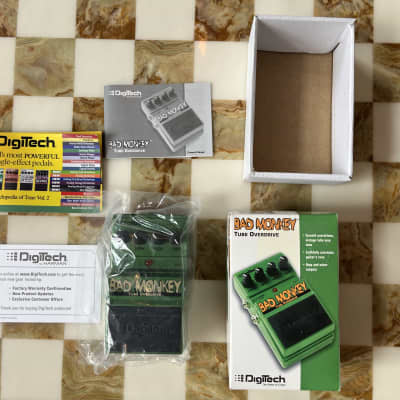

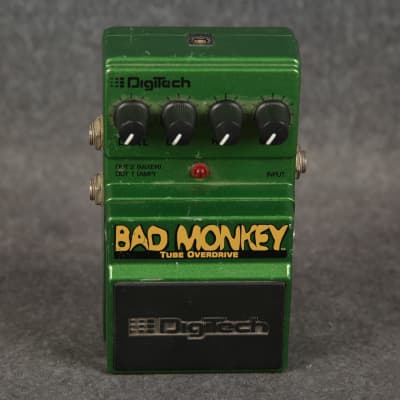

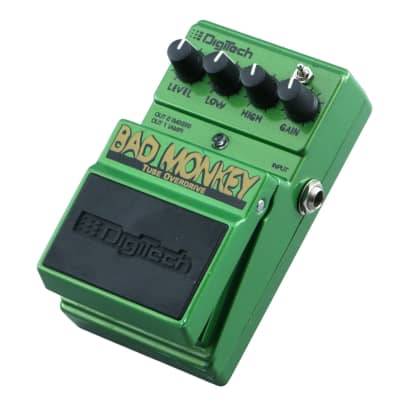

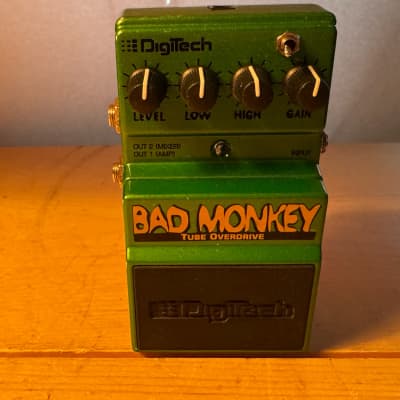

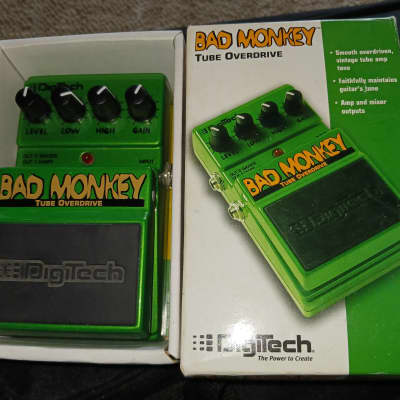

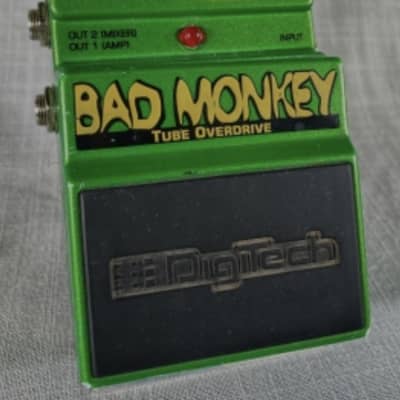

Bad Monkey

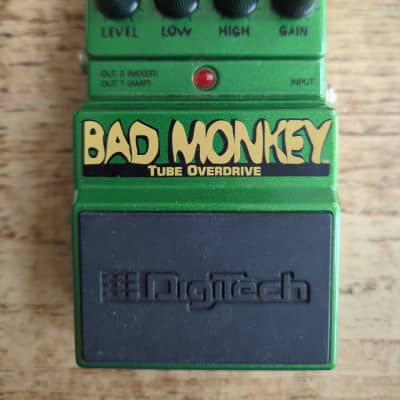

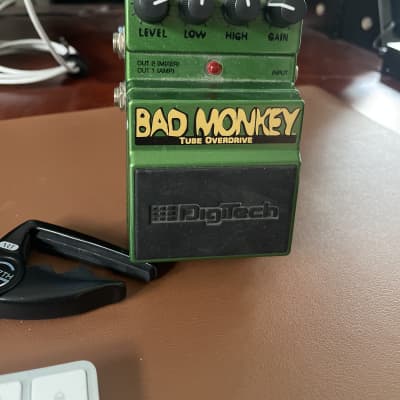

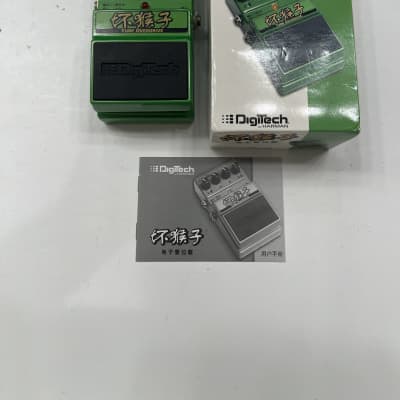

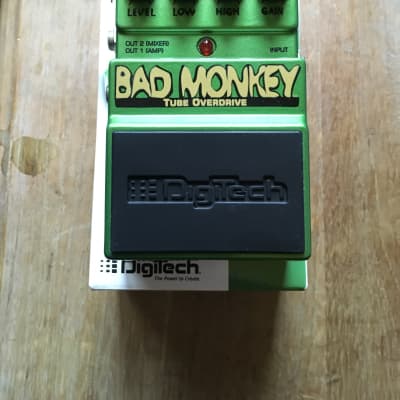

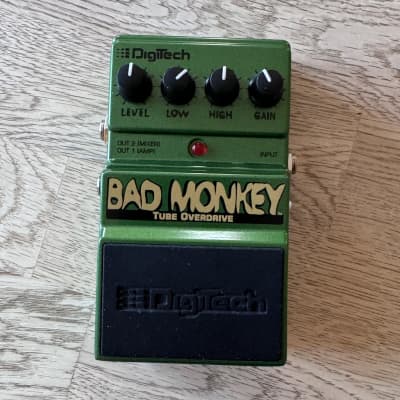

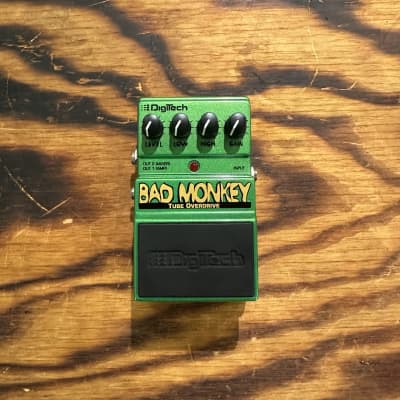

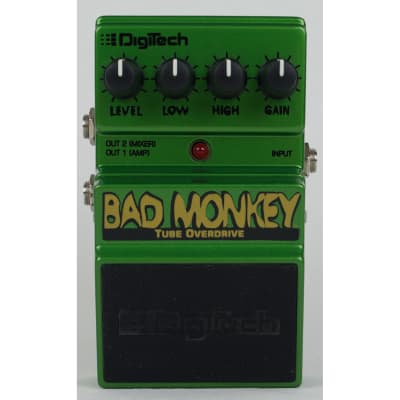

The DigiTech Bad Monkey Analog Tube Overdrive pedal features the following technical specifications and design elements:

- Controls: Level, Low, High, Gain, On/Off Pedal
- Jacks: Input, Amp Out, Mixer Out
- Input Impedance: 1 MOhms
- Max Output Impedance: 100 Ohms
- Power Supply: 9V Alkaline Dry Battery
- Power Consumption: 4.8 Watts (with optional PS200R power supply)
- Battery Life: Approximately 18 hours with continuous usage
- Dimensions: 4 15/16" (L) x 3 1/8" (W) x 2 1/8" (H)
- Unit Weight: 1.38 lbs

The pedal is designed to maintain the distinct tone of the guitar and offers separate mixer and amp outputs for an overdriven tube amp sound. It also includes a speaker cabinet emulation feature, allowing direct connection to a mixer or recorder input without the need for a guitar amplifier. The Bad Monkey provides a smooth, natural character of an overdriven tube amp while offering tonal flexibility with separate low and high EQ controls.
