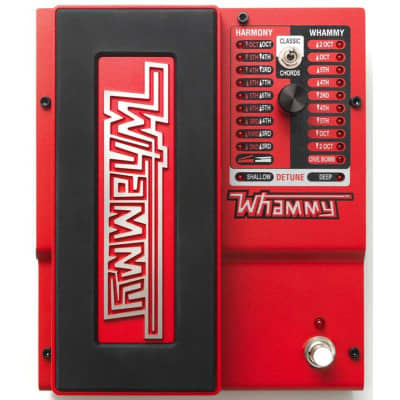

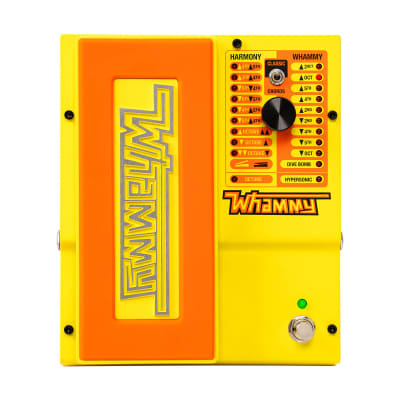

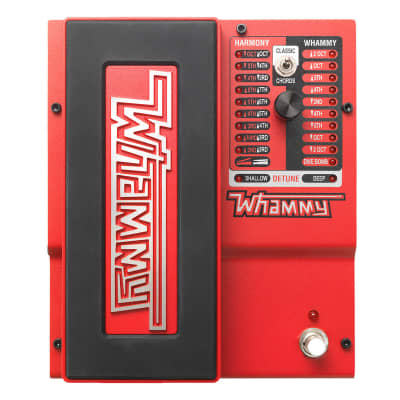

Whammy Pitch-Shifting Pedal

The DigiTech Whammy Pitch-Shifting Pedal features include:

- Classic Whammy sound with chordal pitch-shifting
- 10 Whammy, 9 Harmony, and 2 Detune settings
- Standard 9V DC power
- True polyphonic pitch-shifting and Whammy effects in a single pedal
- Ability to drop or raise tuning by 7 half steps or an entire octave
- Latching footswitch mode for maintaining a specific pitch
- LED ladder that shows the shift trajectory at all times
- Momentary footswitch for "hammer-on" and "pull-off" effects
- 7 pitch selections across a 4-octave range

Technical specifications:
- Sample rate: 44.1 kHz
- Frequency response: 20 Hz to 20 kHz
- Input impedance: 1 Mohm
- Maximum input level: +5 dBu
- Output type: 1/4” unbalanced TS
- Max output level: +10 dBu
- Control connections: MIDI, 5-pin DIN
- Footswitch input: 1/4" TRS for use with optional FS3X foot pedal

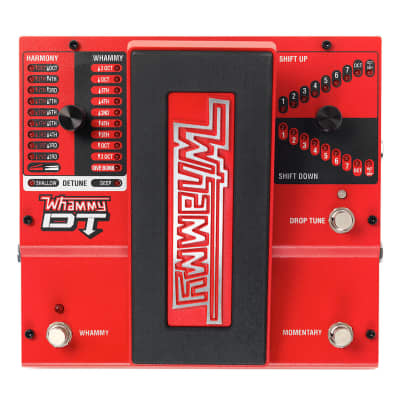

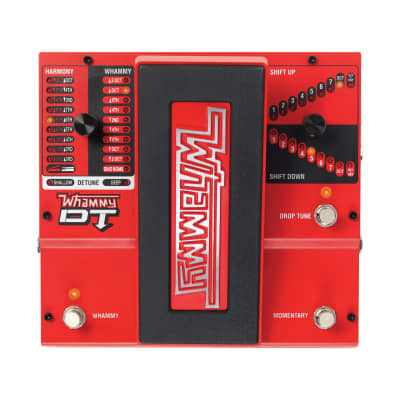

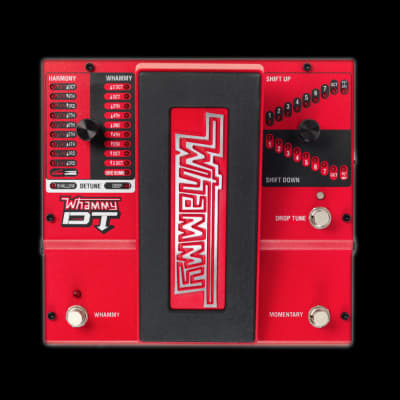

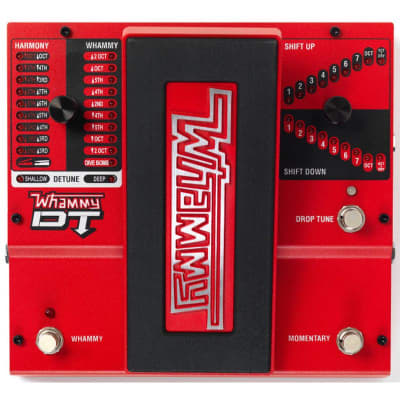

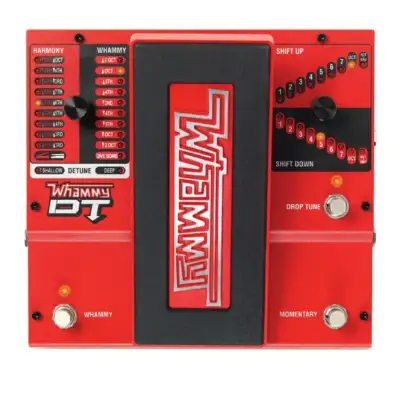

The Whammy Ricochet and Whammy DT are variations of the Whammy pedal, offering additional features such as trajectory LED ladder lights and the latest pitch- shifting technology for retuning guitars without touching the tuning pegs.
