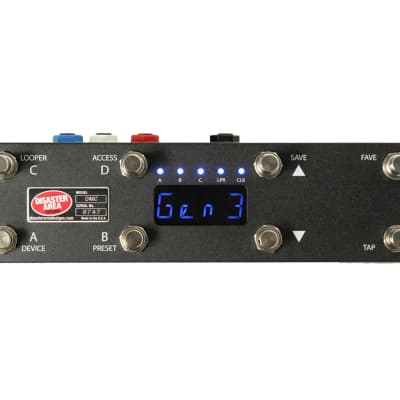

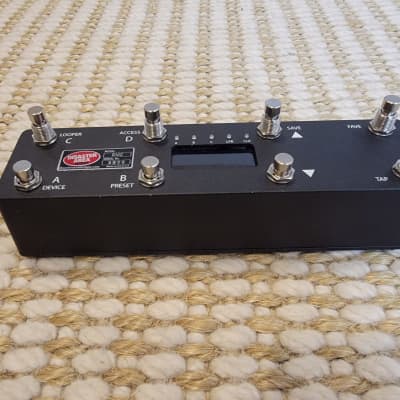

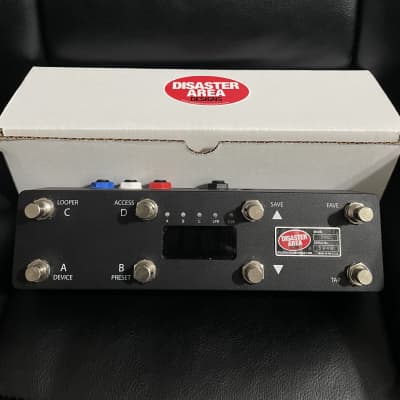

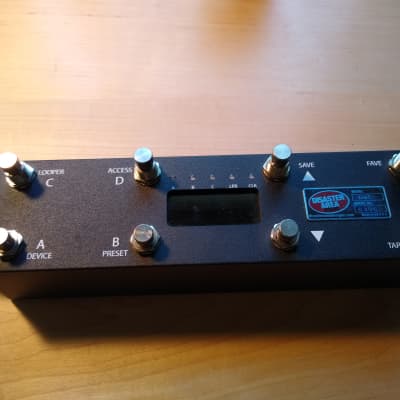

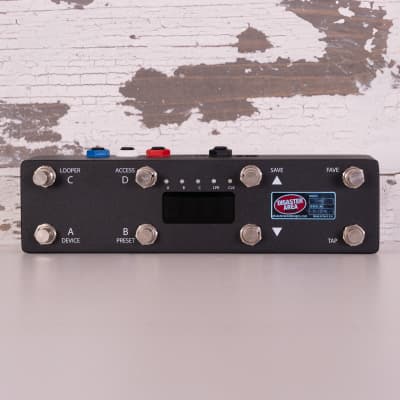

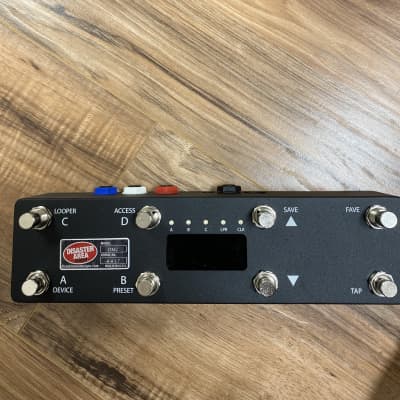

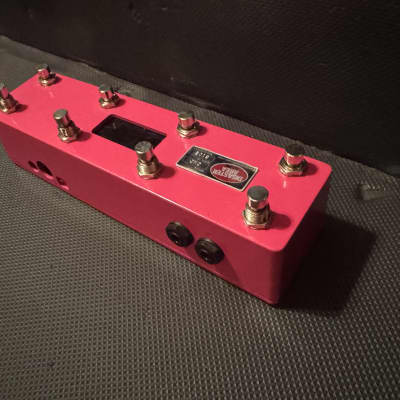

DMC-8 Gen3

The Disaster Area Designs DMC-8 Gen3 is a compact and powerful MIDI controller with expanded capabilities. Here are the technical specifications and features:

Technical Specifications:
- Power: 9V DC, 100mA or less

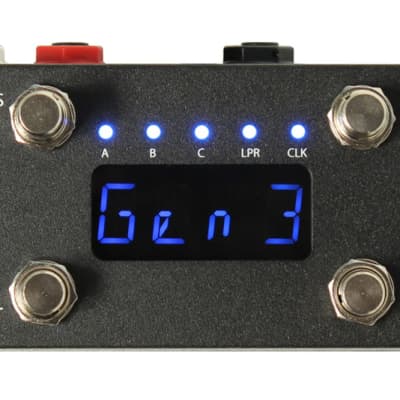

- LED display
- Five status LEDs
- Soft-touch footswitches
- 5-pin MIDI port (requires MIDI Y-Cable for MIDI input)
- Three MultiJack connectors
- Expression Pedal input
- Optional Side Roller for sending Expression data
- USB port (requires gHOST adapter for USB HOST)
- Controls up to six MIDI devices
- Dimensions: 10” x 2.6” x 2” (250mm x 66mm x 51mm)

Features:
- Program select and bypass for up to six devices
- Looper control for Strymon Timeline, Eventide H9 / Timefactor, or Line 6 HX Series/M9/M13
- Ability to send MIDI notes to control Ableton Live, Playback, Prime
- Preset and Bank naming capability
- Programmable MIDI clock and tap source to synchronize tempo on multiple pedals
- ACCESS mode to send MIDI notes to live playback applications
- User-definable Hot Switch for tap tempo, favorite preset, hold / freeze, and more
- Bright blue LED display with 10 brightness levels
- Up to 256 user-accessible presets

Additional Functionality:
- The DMC-8 Gen3 features three MultiJack connectors, which can perform several different functions to simplify your setup, such as connecting 1/4″ MIDI devices, an expression pedal, an external footswitch for tap tempo control, or sending tap tempo to an external device.

The DMC-8 Gen3 offers expanded MIDI control, preset naming capability, and a user-definable Hot Switch, making it a versatile and comprehensive MIDI controller for musicians and performers.
