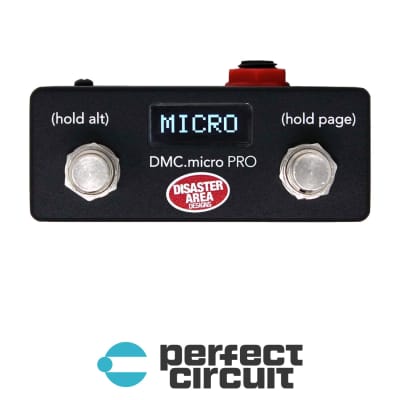

DMC.micro PRO MIDI Controller

The Disaster Area DMC.micro PRO MIDI Controller features advanced Gen3 technology in a compact package measuring 3.6″ x 1.5″ x 1.6″ (93 x 38 x 42mm). Its user interface is intuitive, allowing users to perform actions by tapping the left or right buttons, holding the left button for an alternate action, or holding the right button to advance to the next page.

Key features and specifications include:
- Graphical OLED display for showing preset names, device status, clock rate, and more
- One MultiJack connector with multiple functions such as Expression Pedal input, Tap Tempo Output, Function Switch Output, Footswitch Input, or MIDI Output
- Internal DIP switches to customize MultiJack functions
- Up to 99 user-accessible presets (if preset page is active)
- Controls up to four MIDI devices
- User-definable Utility Mode X and Utility Mode Y pages for customized actions and looper control
- USB MIDI or USB Host connection for advanced control possibilities
- Power: 9V DC, 40mA or greater, center negative
- 5-pin MIDI Port (supports MIDI input with MIDI-Y cable)
- USB port
- Runs on standard 9V power, 40mA or higher

The DMC.micro PRO also features the MultiJack connector, which can perform several different functions to simplify setup, including connecting MIDI devices, serving as a bi-directional MIDI port for supported devices, connecting an expression pedal, and more.

This MIDI controller is designed to provide comprehensive control in a compact form factor, making it suitable for a wide range of MIDI applications.
