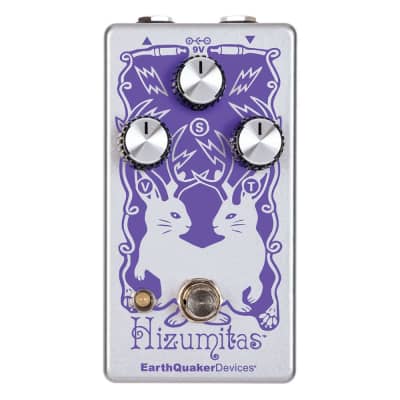

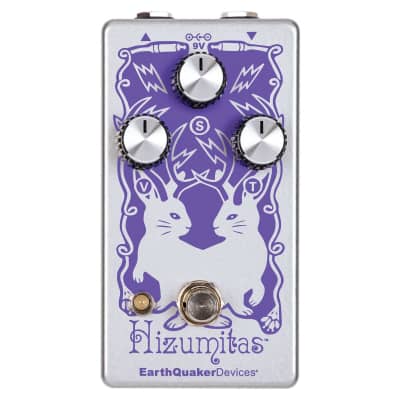

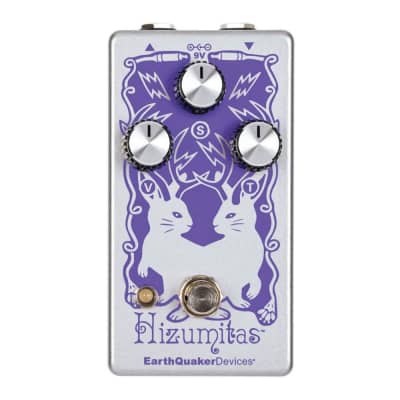

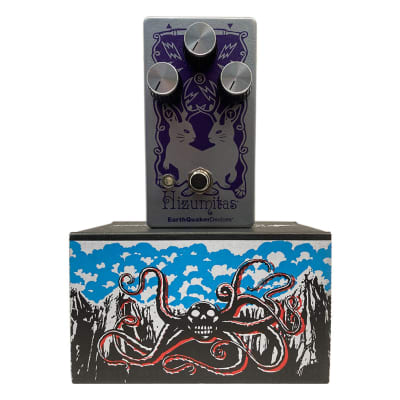

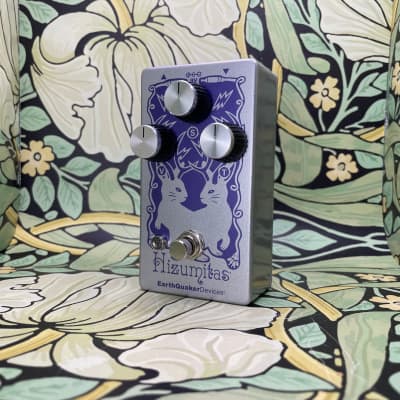

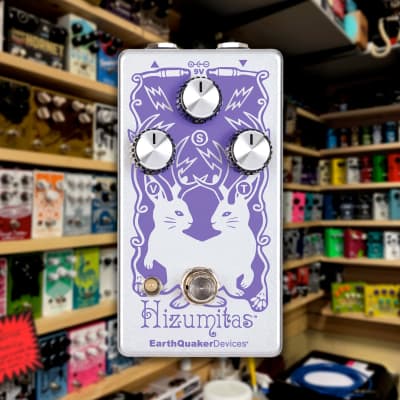

Hizumitas

The Hizumitas by EarthQuaker Devices is a faithful sonic recreation of Wata from Boris’ go-to fuzz pedal, the Elk BM Sustainar. It delivers heavy saturation with a gritty edge and a massive bottom while maintaining a clear and dynamic tone with enough mids and top end to cut through the sludge.

Technical Specifications:
- Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
- Current Draw: 10 mA
- Input Impedance: ≈150 kΩ
- Output Impedance: <10 kΩ
- Pedal Type: Fuzz
- Analog/Digital: Analog
- Inputs: 1 x 1/4" (instrument)
- Outputs: 1 x 1/4"
- True Bypass: Yes, Relay Switching
- EQ: Tone Control

Features:
- Volume: Adjusts the output volume. Unity is around 9-10 o’clock.
- Sustain: More distortion and sustain clockwise; less counterclockwise.
- Tone: Boosts bass frequencies clockwise and boosts highs counterclockwise. This control has a massive effect on the character of the Hizumitas.

Design Notes:
- The Elk Sustainar is a Japanese variant of the more well-known “Triangle” BMP.
- The Hizumitas has loads of heavy distortion and smooth sustain with an underlying grit.
- The Sustain control has a wide range of saturation, with excellent response to different pickup types and playing dynamics.
- The Tone control can drastically change the distortion’s character in conjunction with the Sustain setting.

The Hizumitas offers a huge amount of headroom and excellent response to different pickup types and playing dynamics. It is designed to deliver heavy distortion and smooth sustain with an underlying grit, while still maintaining clarity and dynamic tone.
