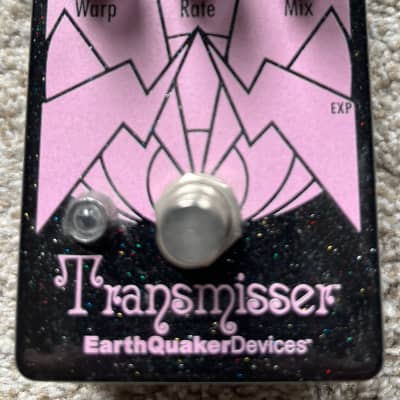

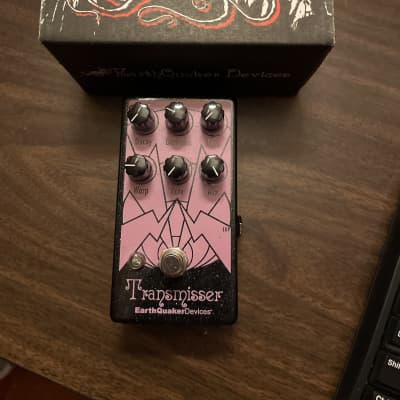

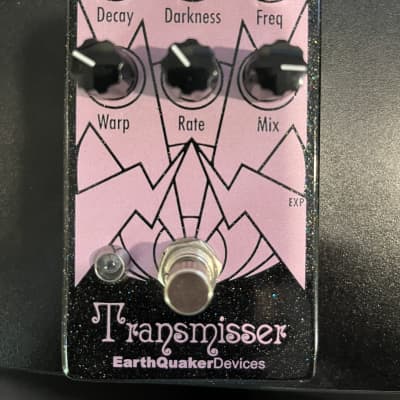

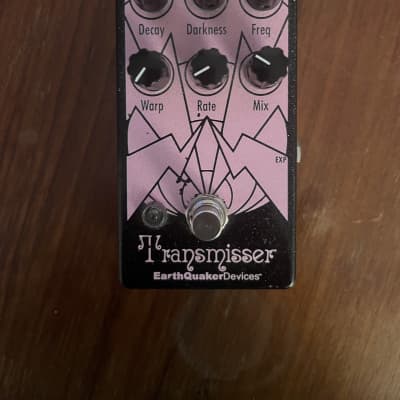

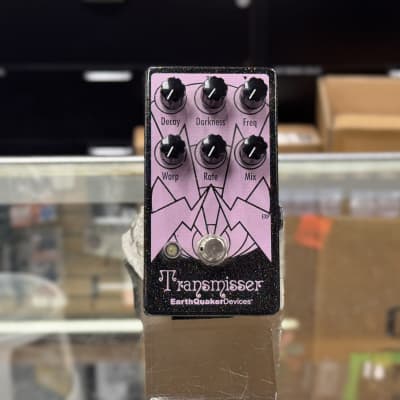

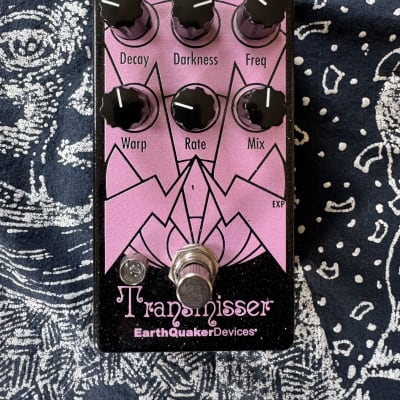

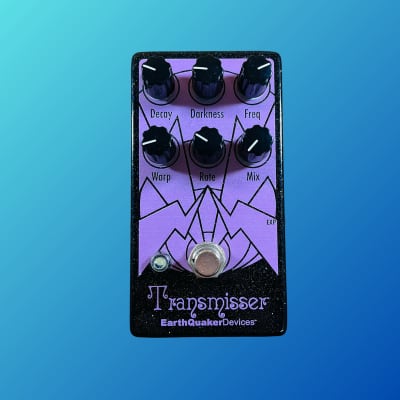

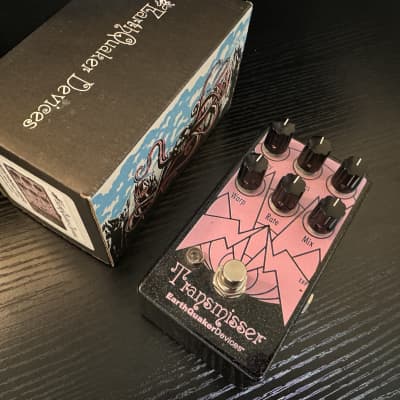

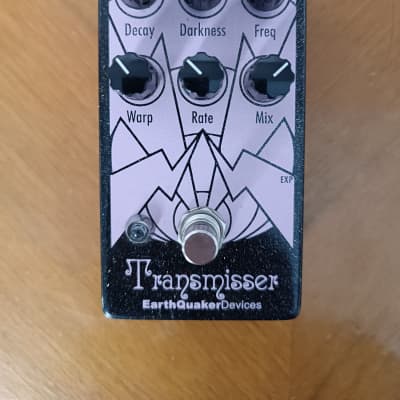

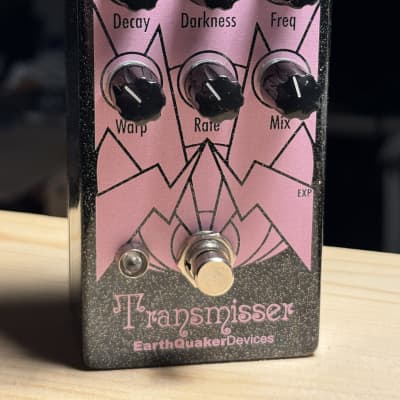

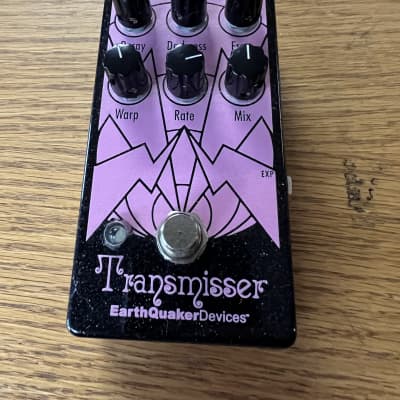

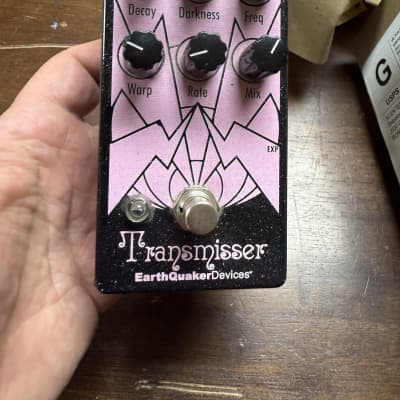

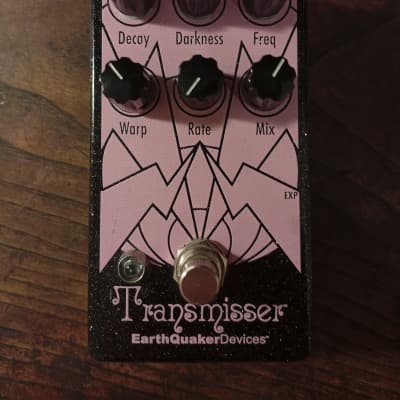

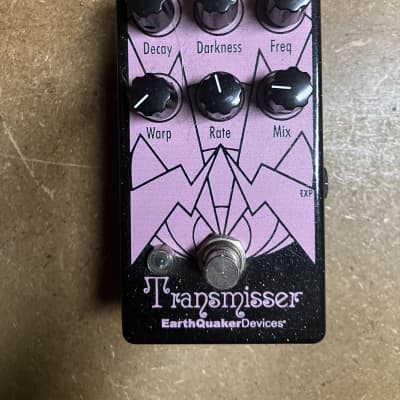

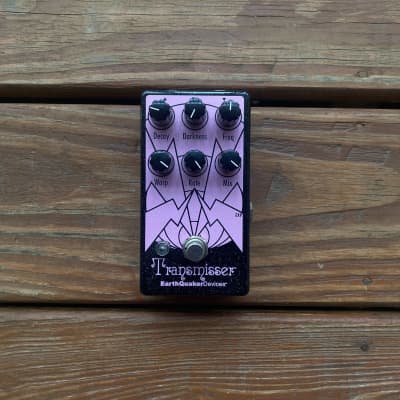

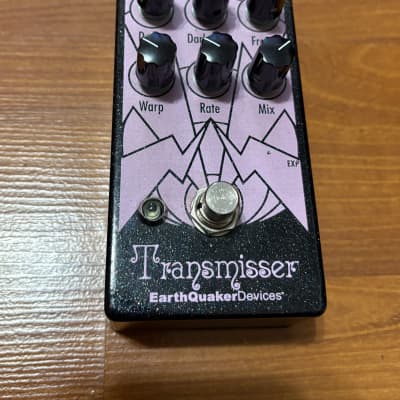

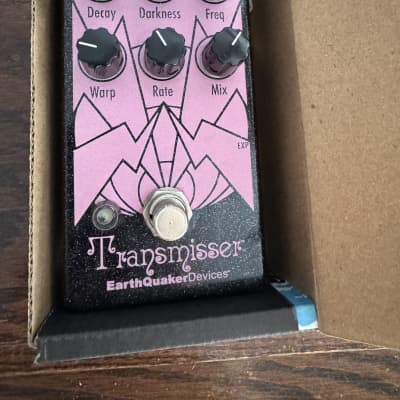

Transmisser

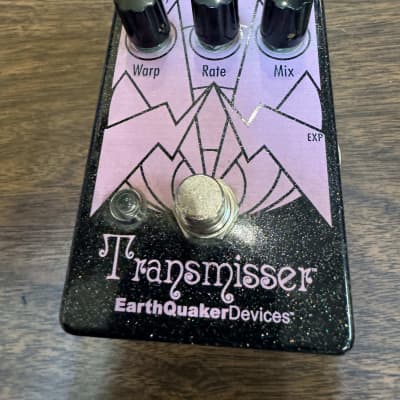

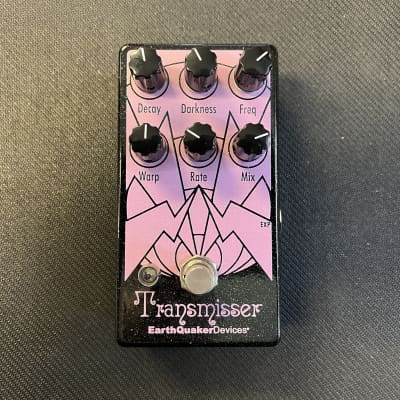

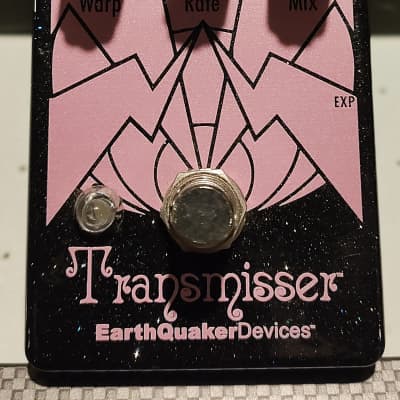

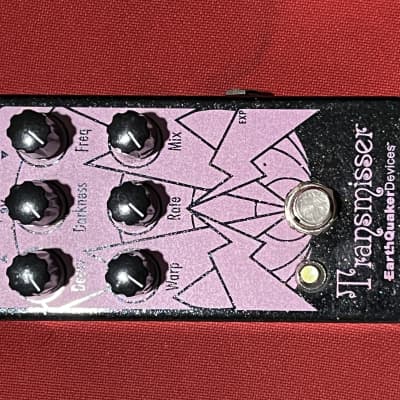

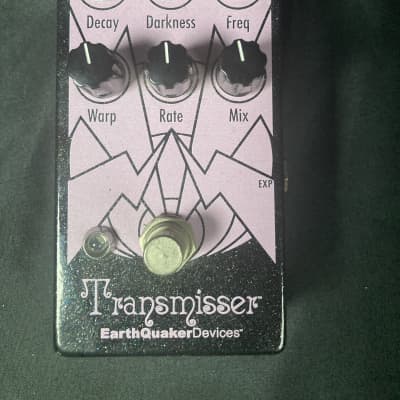

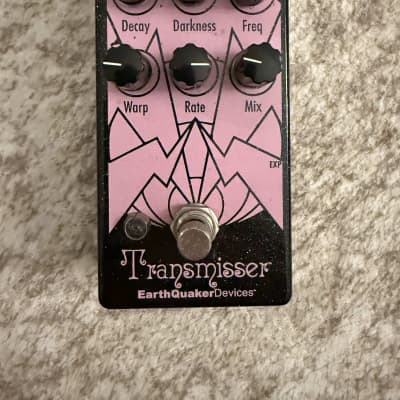

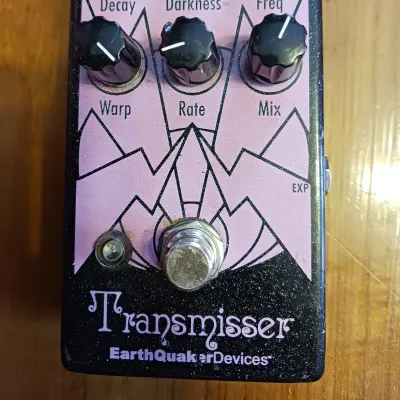

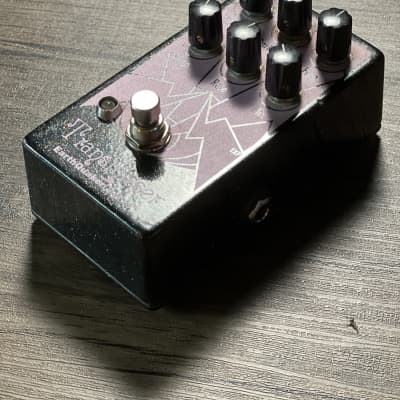

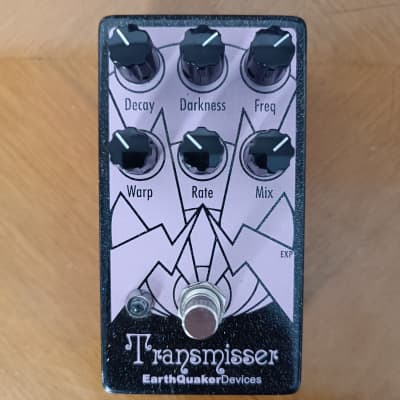

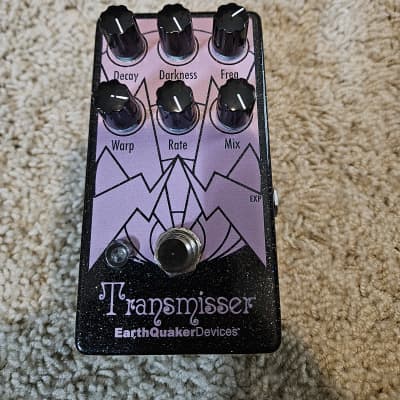

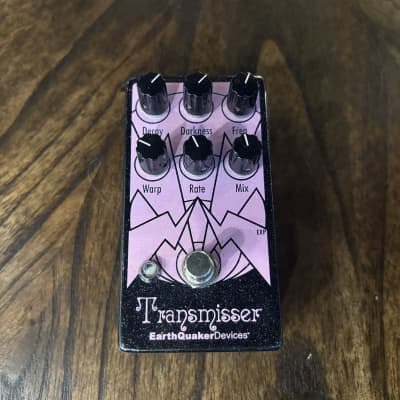

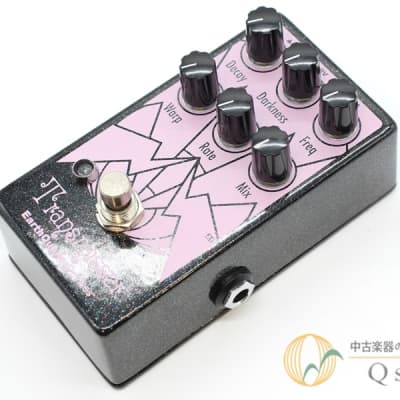

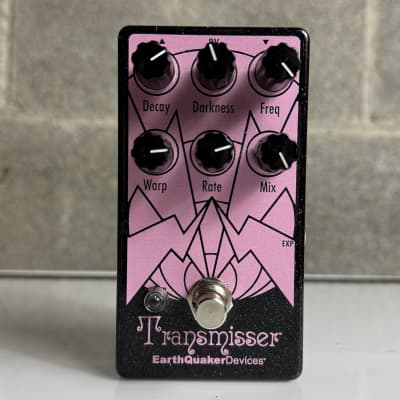

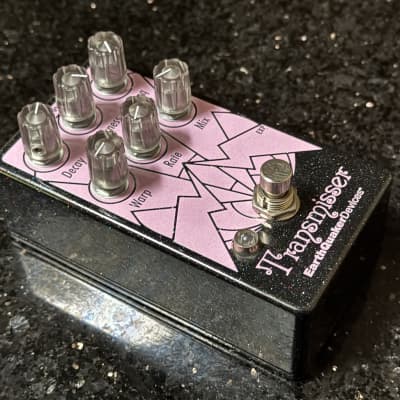

The Transmisser by EarthQuaker Devices is a modulated reverb pedal with extra- long decay fed to a highly resonant filter. It is designed to create an ultimate soundscape-y backdrop for guitar performances. The pedal features the following controls:

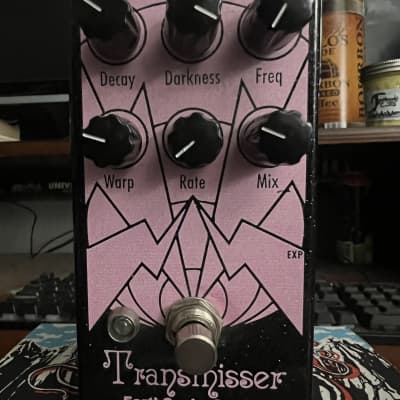

1. Decay: Controls the length of the reverb trails.
2. Darkness: Adjusts the tone of the reverberated signal.
3. Freq: Controls the frequency of the resonant filter that processes the reverberated signal. It can also be controlled by an expression pedal.
4. Warp: A system slew control that affects the depth, decay, modulation, and overall system characteristics.
5. Rate: Controls the speed of the system-wide modulation.
6. Mix: Adjusts the reverb blend, determining the amount of wet signal blended with the dry signal.

Technical Specifications:
- Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
- Current Draw: 76 mA
- Input Impedance: 1 MΩ
- Output Impedance: <1 kΩ
- Switching: True bypass with electronic relay-based switching. Audio will not pass without power.

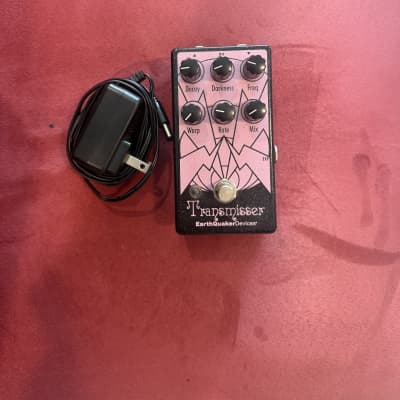

- Power: Standard 9 volt DC power supply with a 2.1mm negative center barrel. It is recommended to use pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies to minimize noise.
