Analog Heat

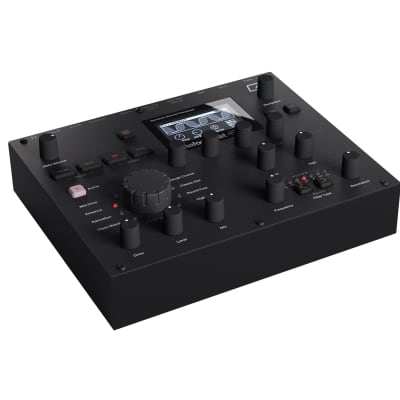

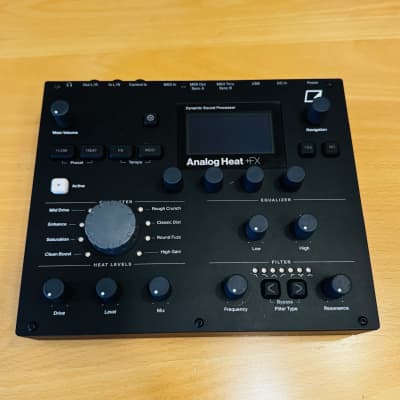

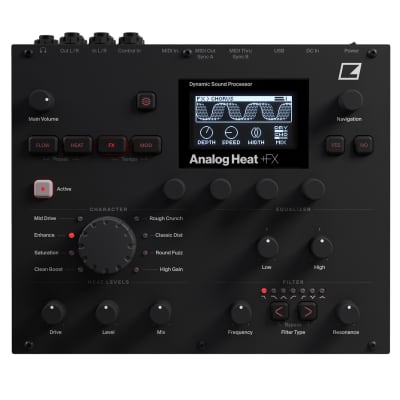

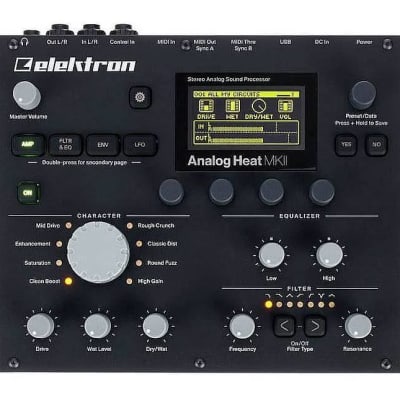

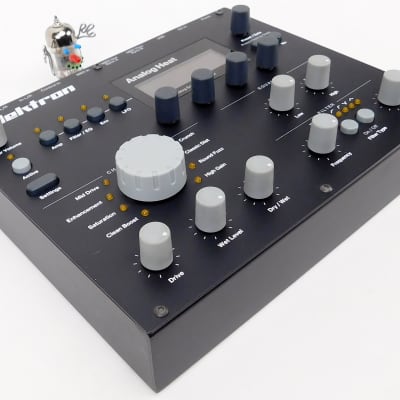

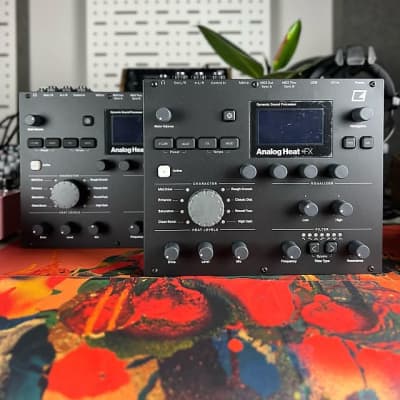

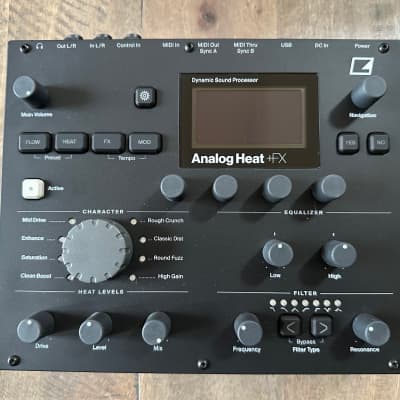

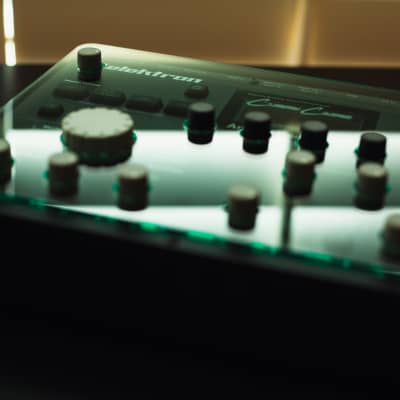

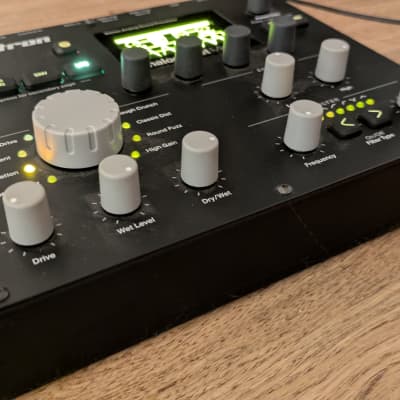

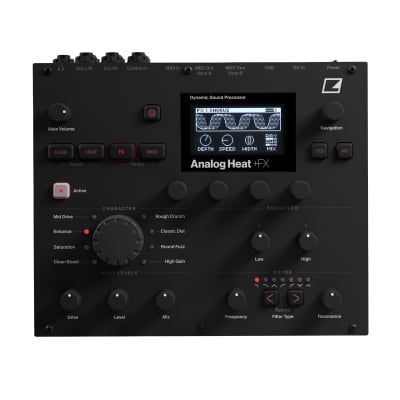

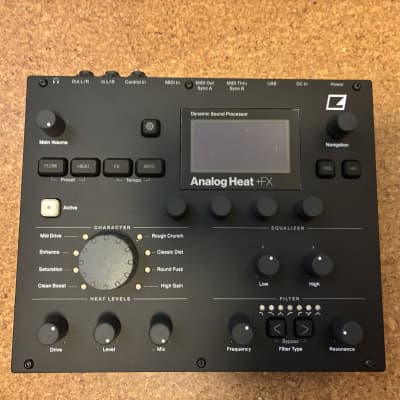

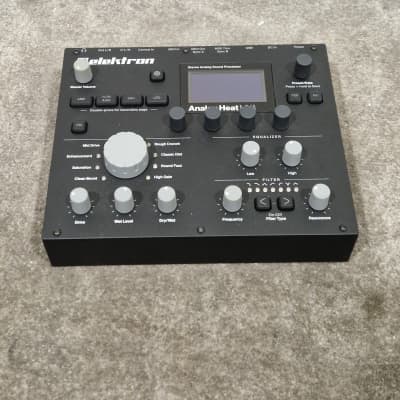

The Elektron Analog Heat MKII is a dynamic sound processor designed to add warmth, depth, and character to audio. It features eight fully analog stereo distortion circuits, offering a range of effects from subtle clean boost to complete annihilation. Additionally, it includes a stereo analog multi-mode filter with seven filter types, a 2-band adaptable stereo analog EQ, noise gate, reverb, delay, chorus, warble, bits, and compressor.

The device also incorporates an assignable envelope generator/envelope follower with two destinations, three assignable LFOs with two destinations per LFO, 512 user preset slots, a 128×64 pixel OLED screen, MIDI In/Out/Thru with DIN Sync out, 2 × ¼" balanced audio out jacks, 2 × ¼" balanced audio in jacks, 1 × ¼" stereo headphones jack, 2 × ¼" CV/Expression pedal input jacks, 48 kHz, 24-bit D/A and A/D converters, Hi-Speed USB 2.0 port, and Overbridge compatibility.

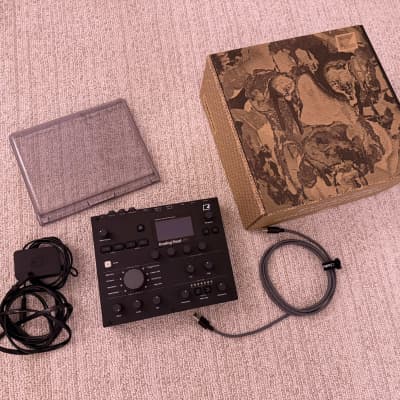

Physically, the Analog Heat MKII is housed in a sturdy steel casing, with dimensions of W215 x D184 x H63 mm (including audio outputs, knobs, and feet) and a weight of approximately 1.5 kg. It also features 100x100 mm VESA mounting holes and is equipped with a PSU-3c power supply and Elektron USB cable.

The device is designed for enhancing and manipulating audio signals, offering a wide range of processing possibilities and signal flow customization.
