Lift

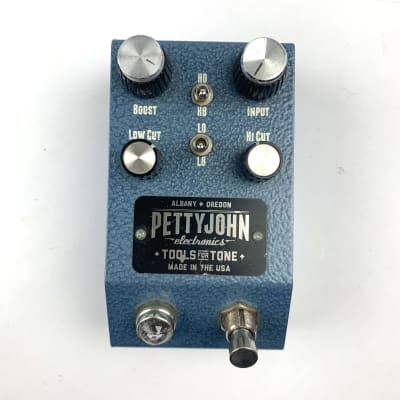

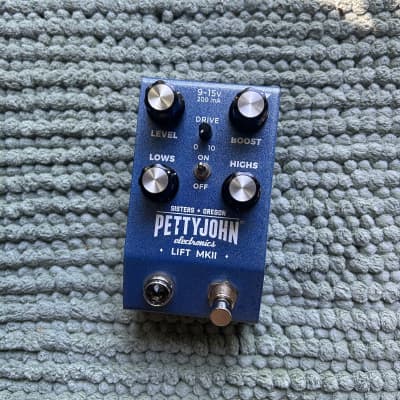

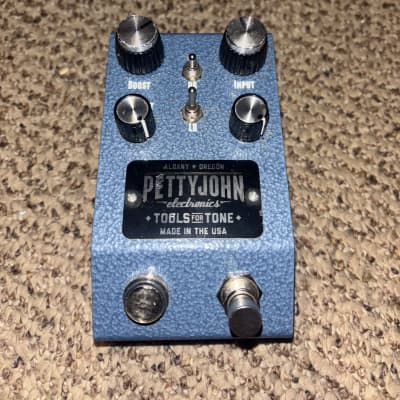

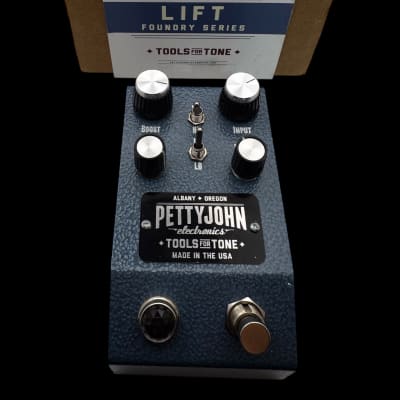

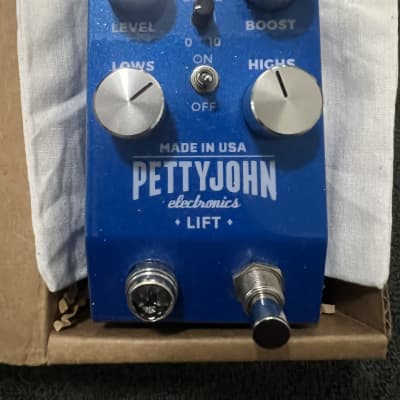

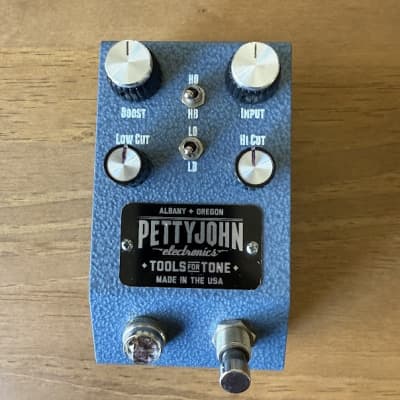

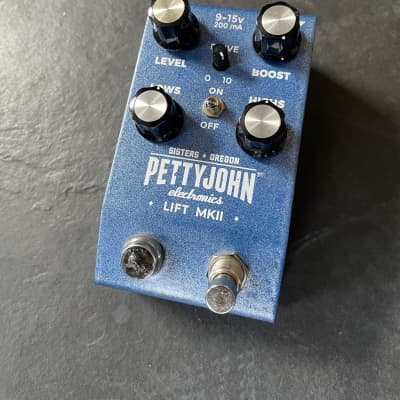

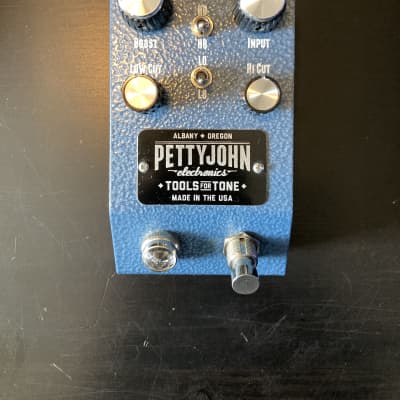

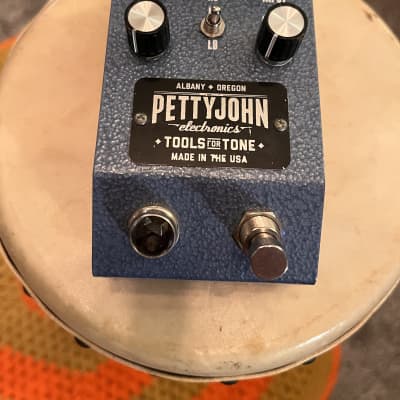

The Lift by Pettyjohn Electronics is a versatile studio-grade Buffer/Boost pedal designed to provide exceptional signal conditioning and tonal shaping capabilities. The following technical specifications and features are associated with the Lift pedal:

- Studio-grade three-band EQ with transparent, wide-range low cut and warm inductor mid bell, and sweet active/passive high bell/shelf.
- Harmonic Drive featuring a NOS D9B germanium diode, with MOSFET for more crunch.
- Extended full-range frequency response: 20Hz-25kHz (EQ off).
- Adjustable output level to allow for driving the harmonic drive circuit hard.
- High-performance proprietary dual-rail power section providing 36V of voltage swing for huge internal headroom off a 9v adapter while drawing 250mA (draws 150mA off of 15v adapter).
- Discrete Opamp Always-On Unity Gain Buffer.
- Discrete Opamp powered Boost with up to 30 dB of clean gain.
- Passive, studio-grade filters including high cut and low cut controls, with a gentle, musical 6 dB/octave slope for the LOWS control and a transparent WIMA cap from 22kHz to 1kHz for the HIGHS control.
- Harmonic Drive circuit with a unique combo of MOSFET and NOS D9E germanium diodes, providing a sweet, natural compression and harmonically rich, organic growl.
- Audiophile, studio-grade performance with a pure signal path, extremely low noise, and pedal board-friendly footprint.
- Made in the USA: Box and circuit handmade in Oregon, USA.
- Dimensions: 2.75”W x 4.75”L x 2.5” H.
- Weight: 2 lbs.
