Pentatone Preamp and Equalizer Pedal

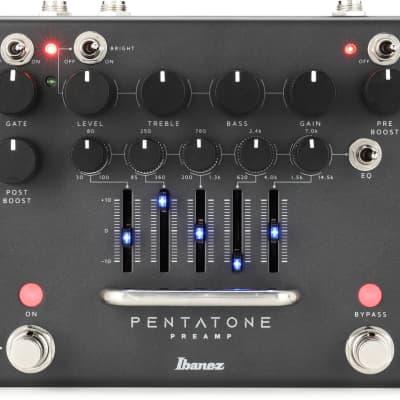

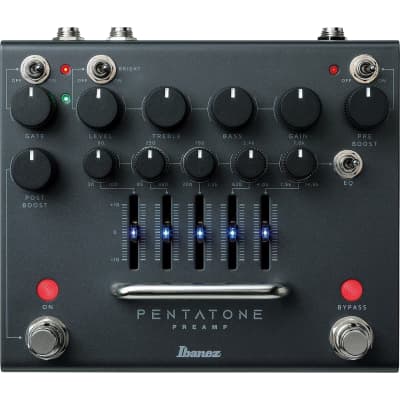

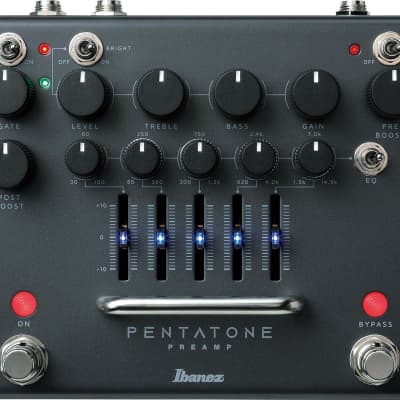

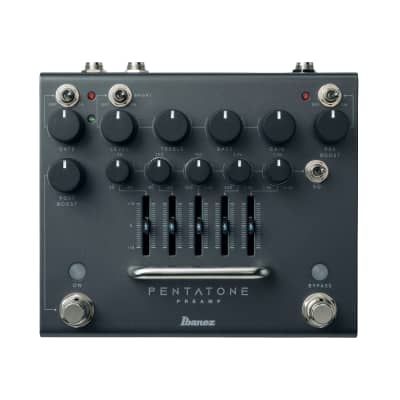

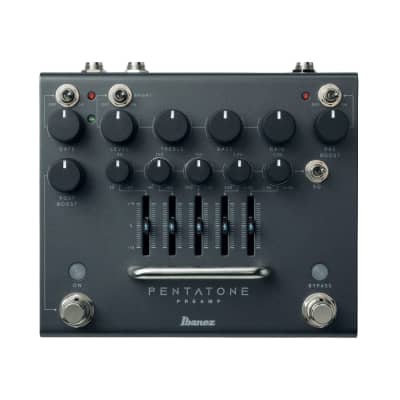

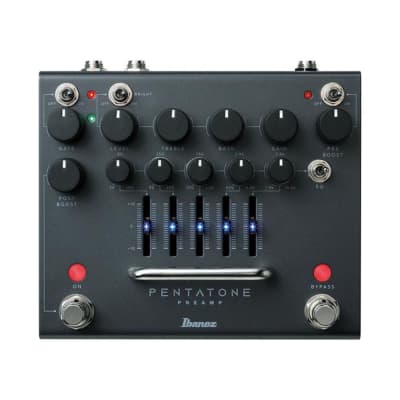

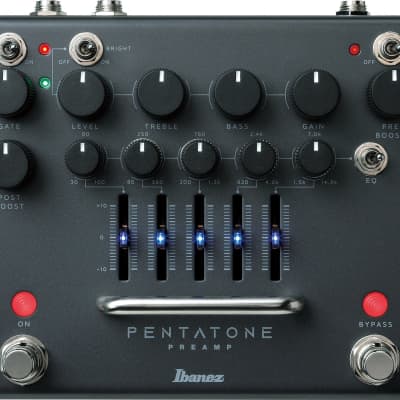

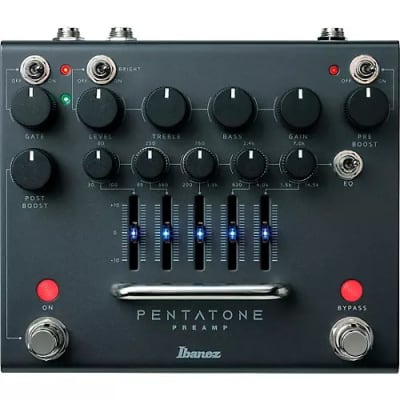

The Ibanez Pentatone Preamp and Equalizer Pedal is an all-analog platform that offers extraordinary tone shaping control, dynamic arrays of distortion, and exceptional amounts of EQ. It features five individual tone shaping sections, including a pre-boost, distortion with a two-band EQ, a noise gate, a 5-band parametric EQ, and a post boost. The pedal also includes a bright switch, which enhances treble response by boosting the high-frequency range. The integrated footswitches control the preamp bypass and post boost functions, and an Ibanez IFS2L external foot-switch can further enhance the player’s control by making the pre-boost and 5-band parametric EQ foot-switchable.

Key Specifications:
- Controls: PRE BOOST, GAIN, BASS, TREBLE, LEVEL, 5-band parametric EQ frequencies, 5-band parametric EQ levels, POST BOOST, Noise GATE
- Switches: PRE BOOST on/off, BRIGHT on/off, 5-band parametric EQ on/off, Noise GATE on/off, BYPASS foot-switch, POST BOOST on/off foot-switch
- I/O’s: INPUT, REMOTE, OUTPUT
- Size: 146(W) x 128(D) x 59(H) (mm) / 5.8(W) x 5.0 (D) x 2.3 (H) (inch)
- Weight: 1.0kg, 2.2lb
- Required Current: 110mA@9V
- Power Supply: One 9V battery (006P) or external AC adapter

The pedal is designed to cover a wide range of use-cases, from simple tone shaping to crunchy overdrive and even the most crushing distortion. It offers deep functionality and is versatile, making it suitable for heavy-minded guitarists and a useful tool for anyone needing to achieve specific tonal characteristics.
