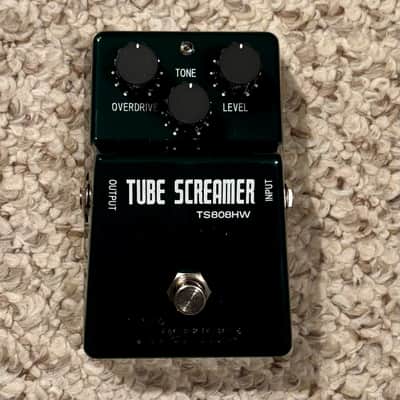

TS808HW Hand-Wired Tube Screamer Guitar Pedal By Ibanez

TS808HW Hand-Wired Tube Screamer

Pedal Manufacturer

Ibanez

Description

The Ibanez TS808HW Hand-Wired Tube Screamer is a limited production overdrive pedal designed with the professional musician in mind. Encased in a heavy-duty metal box, the TS808HW is hand-wired with select JRC4558D chips, the same as the revered and often imitated TS808, and uses high-end Japanese MOGAMI OFC cable (AWG21). It is equipped with True Bypass, providing the shortest, most direct signal path and ensuring no tonal loss when sending the pure guitar excitement to the amplifier.

Specifications:
- Completely Hand-Wired
- Select 4558D IC Chip
- Japanese MOGAMI OEC Cable
- True Bypass
- Special Collectors metal box
- Input Impedance: 500K ohms
- Output Impedance: 10K ohms
- Maximum Output Level: 0 dBm
- Maximum Gain: +30 dB
- Equivalent Input Noise: -100 dBm (IHF-A)
- Power Supply: One 9 Volt Battery or external AC adaptor (AC-109)
- Size: 125 mm (D) x 70mm (W) x 52mm (H)
- Weight: 500g (1.2 lbs)

Controls:
- Overdrive
- Tone
- Level

The TS808HW is designed to provide warm overdrive, making it a versatile addition to pedal boards for players of all levels, from advanced to beginner. Its high-quality components and hand-wired construction contribute to its exceptional build quality and performance.

Watch something on YouTube

Watch TS808HW Hand-Wired Tube Screamer Videos, Demos, and Reviews

Watch the latest video demos and reviews for the TS808HW Hand-Wired Tube Screamer from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

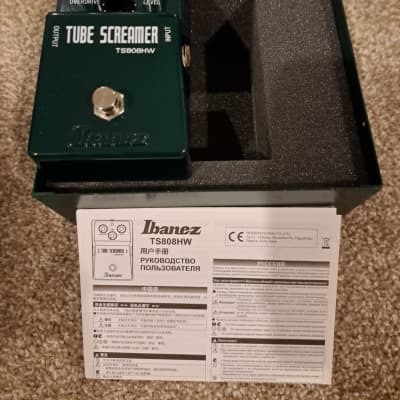

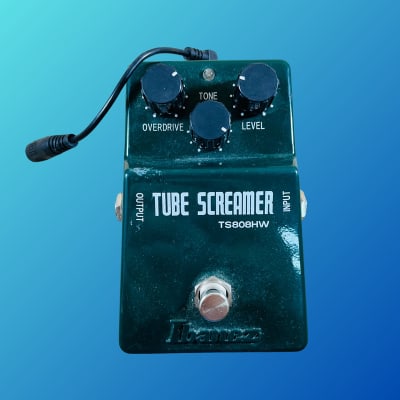

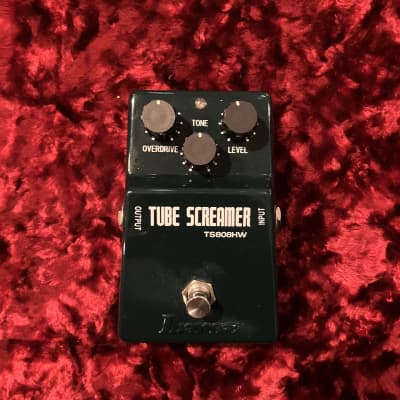

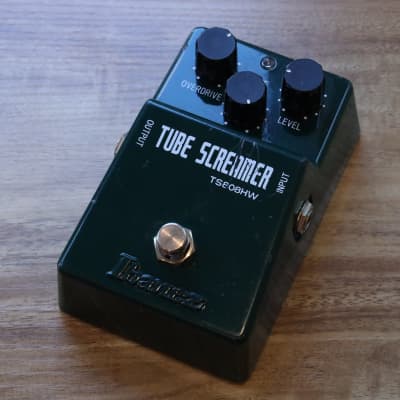

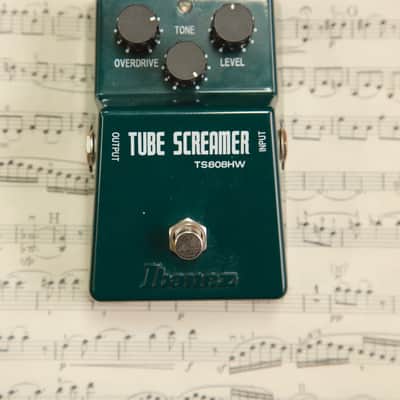

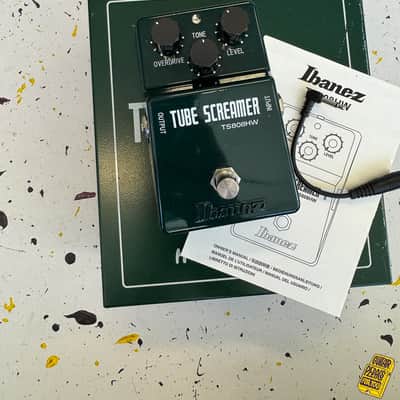

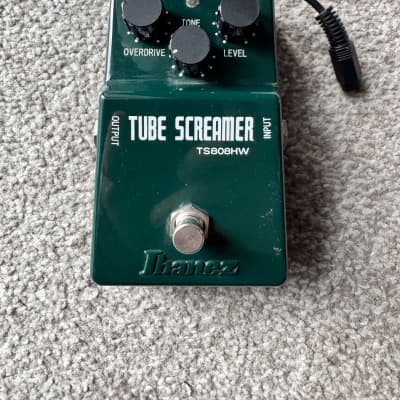

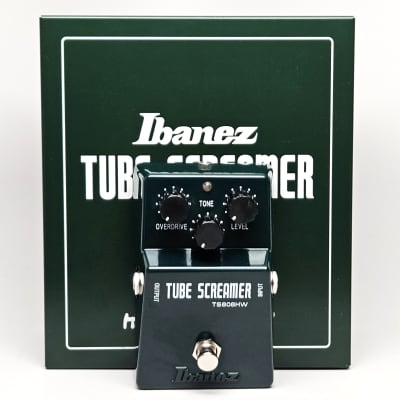

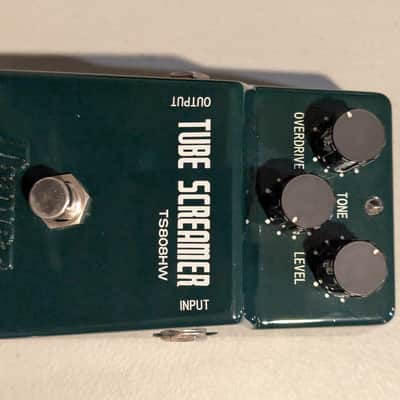

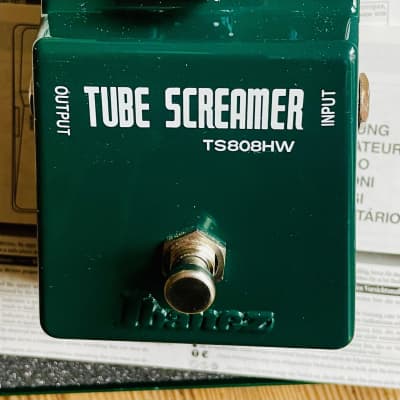

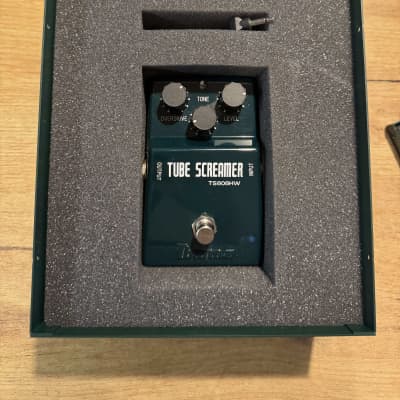

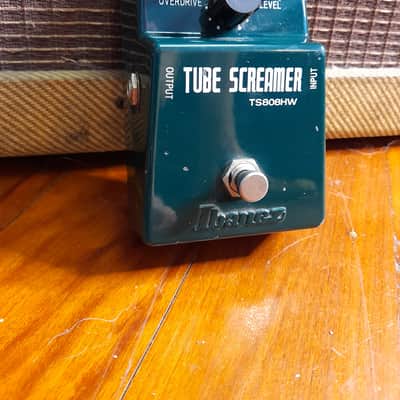

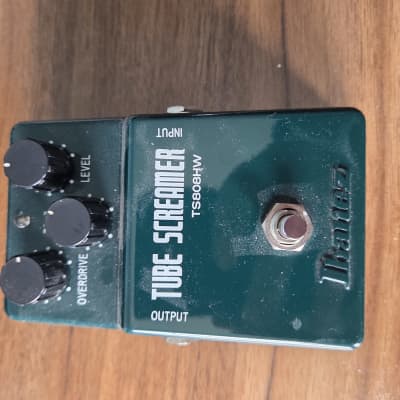

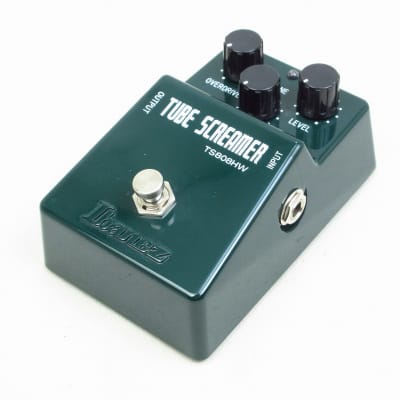

Find Ibanez TS808HW Hand-Wired Tube Screamer Listings on Reverb
