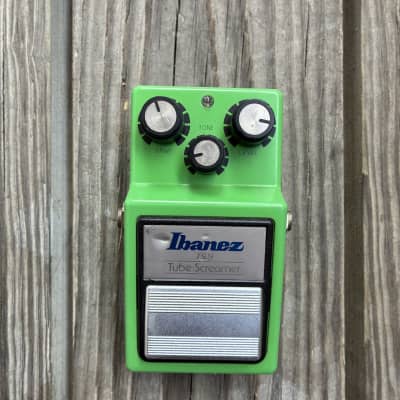

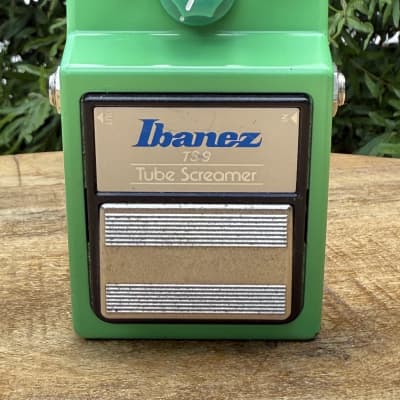

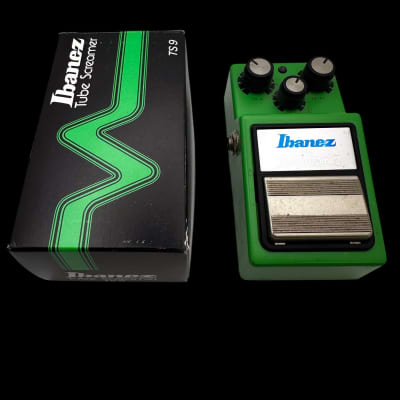

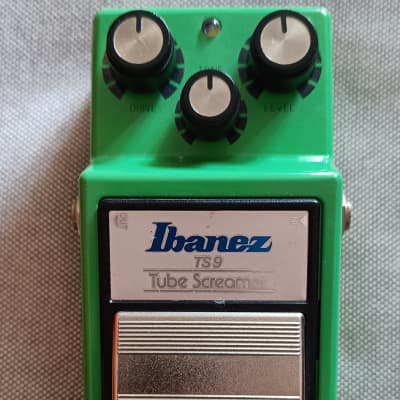

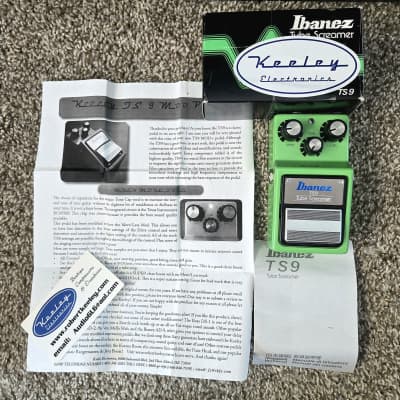

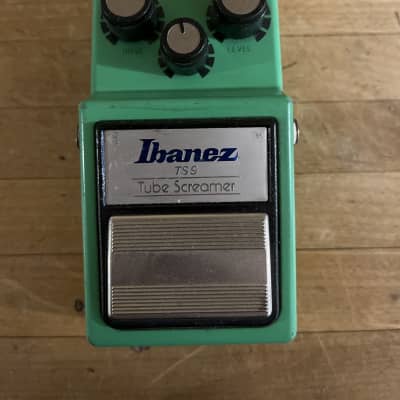

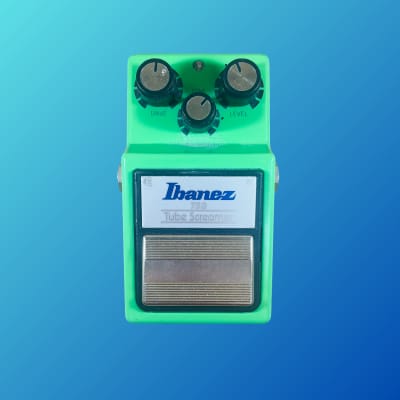

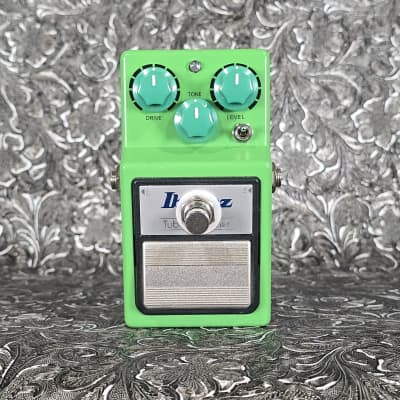

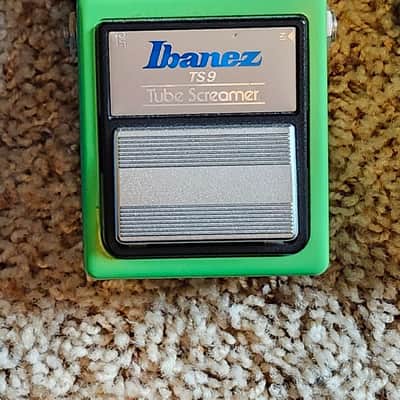

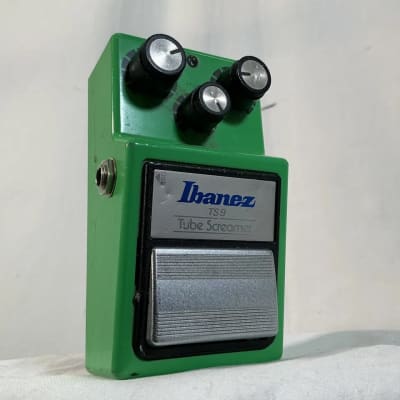

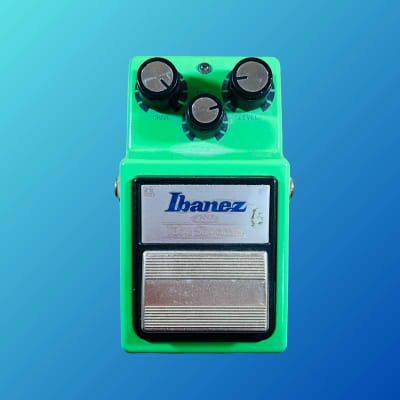

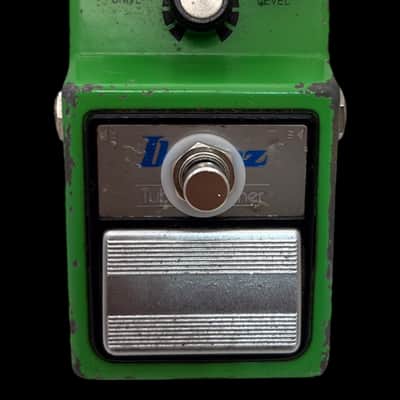

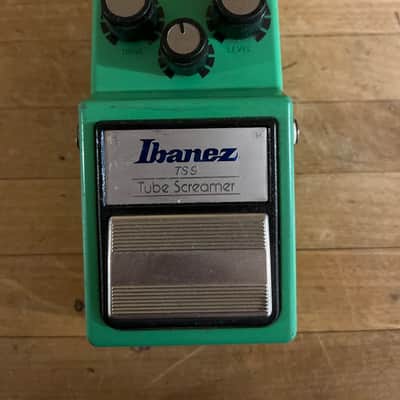

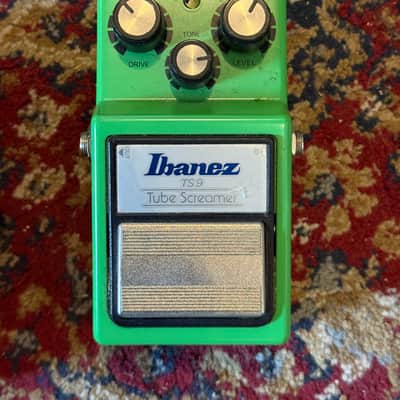

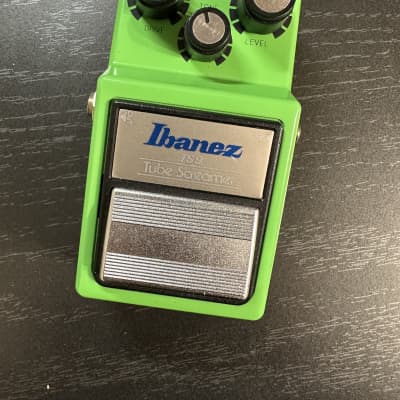

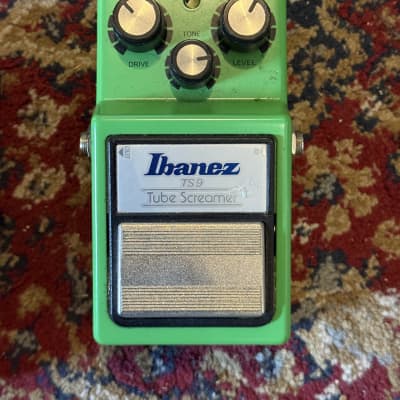

TS9 Tube Screamer

The Ibanez TS9 Tube Screamer is a reissue of the original pedal, maintaining the same housing, instantly identifiable green paint, and classic overdrive sound. The pedal features Drive, Tone, and Level controls, allowing for precise adjustment of the overdrive effect. The input impedance is 500K ohms, while the output impedance is 10K ohms. The maximum output level is 0 dBm, and the maximum gain is +30 dB. The pedal operates on a 9-volt battery (006P) or an external AC adapter (DC 9V, center-negative), with a required current of 8mA at 9V. The dimensions of the pedal are 124mm (D) x 74mm (W) x 53mm (H) or approximately 4.9 inches (D) x 3 inches (W) x 2 inches (H), and it weighs 570g or 1.3 lbs.
