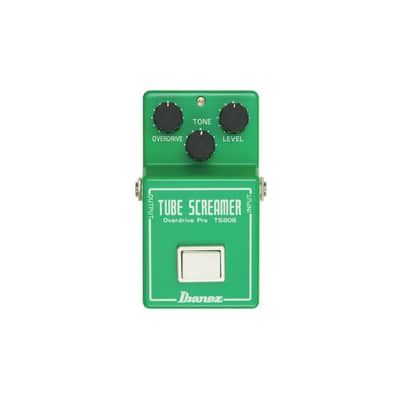

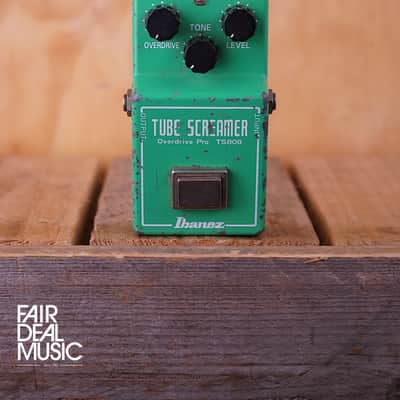

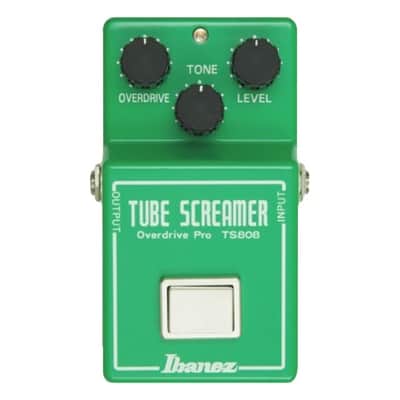

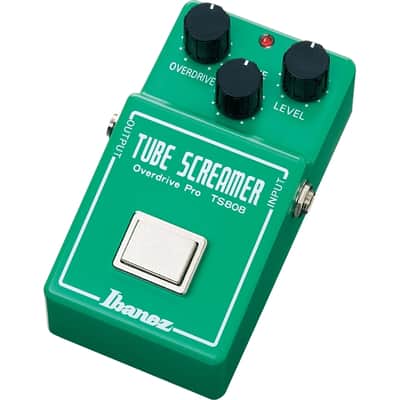

Tube Screamer TS808

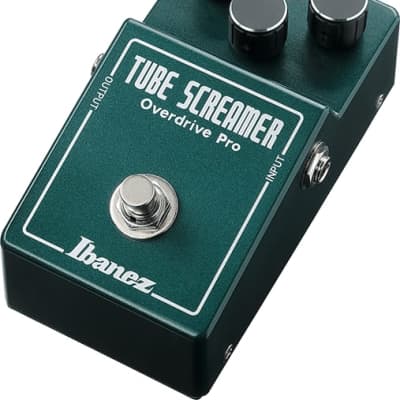

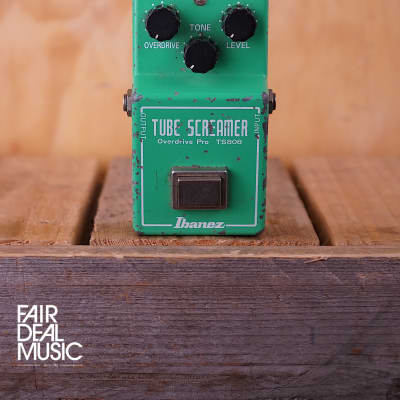

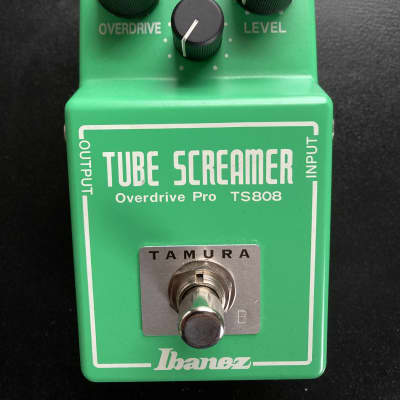

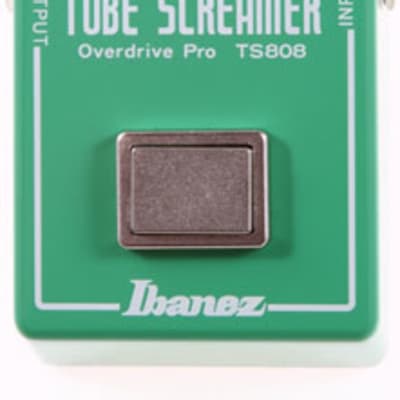

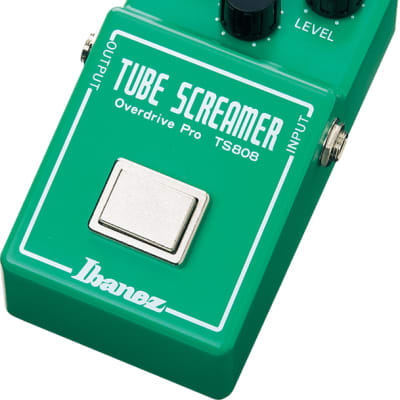

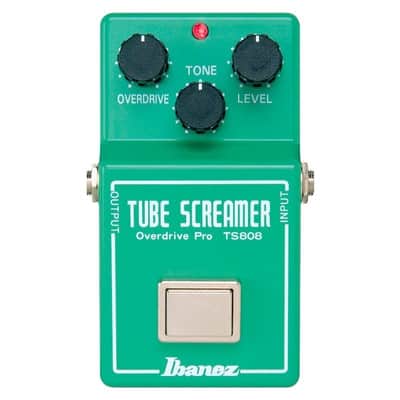

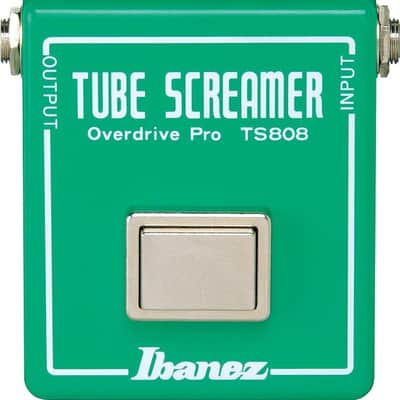

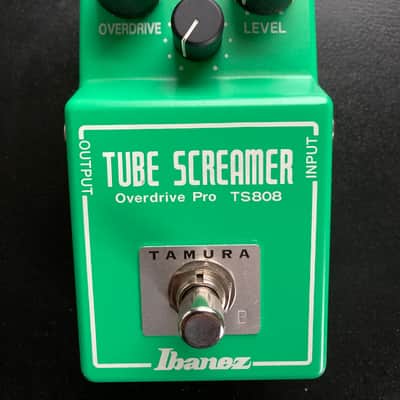

The Ibanez TS808 Tube Screamer is a legendary overdrive pedal known for its characteristic midrange presence and interaction with tube amp preamps. The reissue includes the same JRC4558D IC chip and analog circuitry as the original, featuring traditional overdrive, tone, and level controls. The pedal has an input impedance of 500 kOhms, output impedance of 10 kOhms, and a maximum output level of 0 dBm. It operates on a 9-volt battery (006P) or an external AC adapter (DC 9V, center-negative), with a required current of 8mA at 9V. The pedal's dimensions are 70 x 52 x 125 mm, and it has a power consumption of 7.5 mA. The TS808 Tube Screamer is designed to add sustain, edge, harmonic liveliness, and tighten up the bottom end while preserving the characteristics of the guitar and amp.
