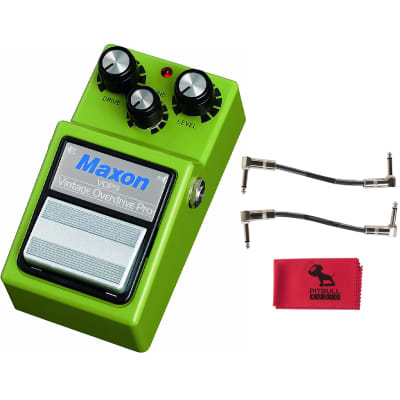

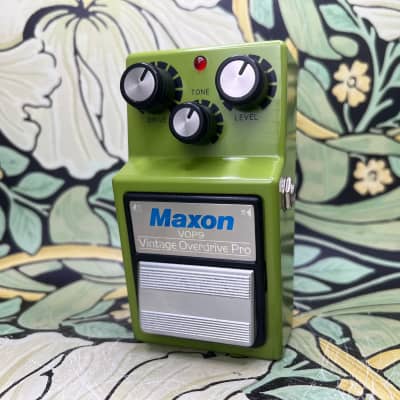

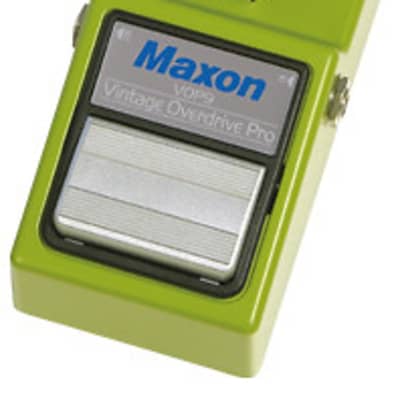

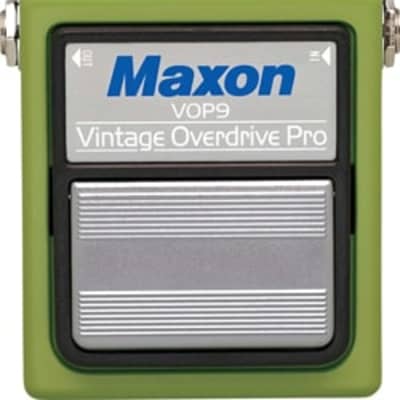

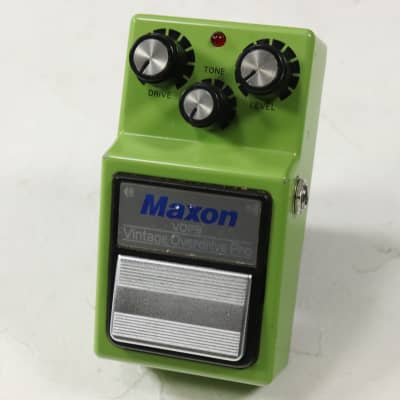

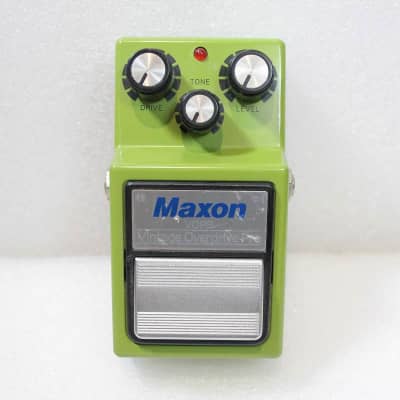

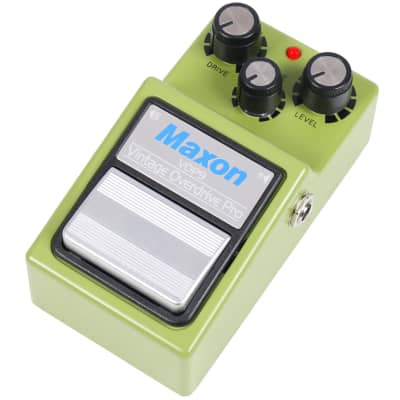

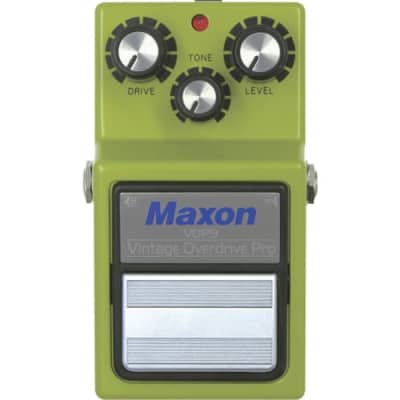

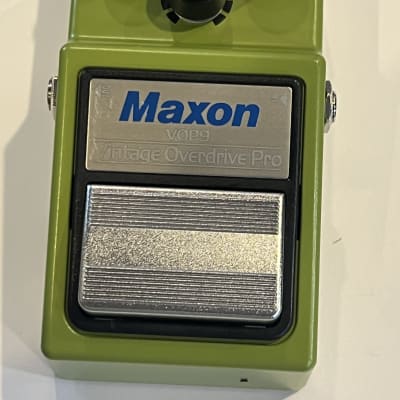

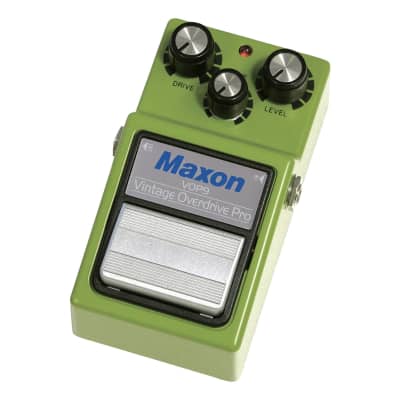

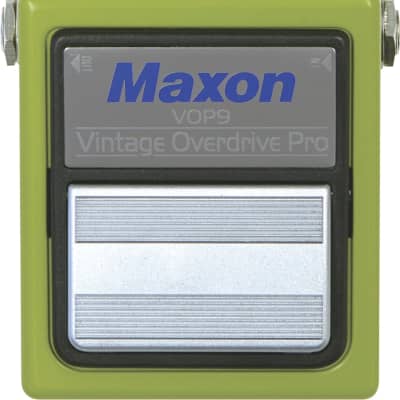

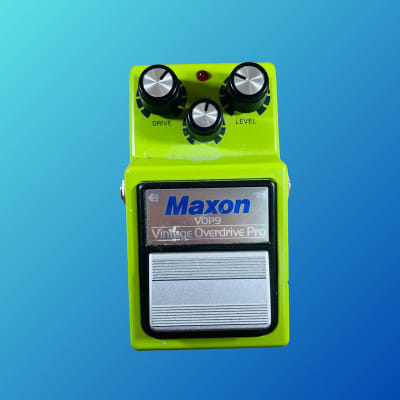

VOP-9 Vintage Overdrive Pro

The VOP-9 Vintage Overdrive Pro by Maxon is a versatile pedal designed for guitarists seeking warm, smooth overdrive tones without compromising the natural characteristics of their guitar and amp setup. The pedal features an internal charge pump that allows for switchable 9 or 18-volt operation, providing increased headroom and a fuller frequency response at the higher voltage setting.

Key Technical Specifications:
- Input Impedance: 500K Ohms
- Output Impedance: 10K Ohms or less
- Maximum Gain: 46dB at 1.5kHz
- Equivalent Input Noise: 112dB or less (IHF-A)
- Controls: DRIVE, TONE, LEVEL
- Mechanical True Bypass switching via a Fujisoku 4PDT switch
- Operating Voltage: 18V (+-9V)/ 9V (+-4.5V) switch
- Power Consumption: 30mA/9V, 28mA/10V at operating voltage 18V (+-9V); 23mA/9V, 24mA/10V at operating voltage 9V (+-4.5V)
- Dimensions: 74 (W) x 124 (D) x 54 (H) mm
- Weight: 580g (including battery)
- Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
- Battery life: Manganese dry battery +-9V 3.5 hours, Alkaline dry battery +-9V 10 hours, Manganese dry battery +-4.5V 8 hours, Alkaline dry battery +-4.5V 20 hours (all at 25°C / 77°F)

The pedal's design is based on Maxon's legendary "808" circuit, with a dual- ganged Drive pot that controls the amount of Gain as well as the mix between clean and distorted signals. Additionally, the VOP-9 features a standard 808-style tone control and operates at 18 volts via an internal voltage doubler, providing greater output and a fuller frequency response without the midrange spike typically associated with the 808 circuit.

The VOP-9 Vintage Overdrive Pro is suitable for a wide range of use-cases, from achieving the ultimate blues tone to providing an added push for solos. It has been favored by exceptional guitarists including Scott Henderson, Dave Weiner, Jeff Loomis, Doug Rappoport, and Stuart Ziff.
