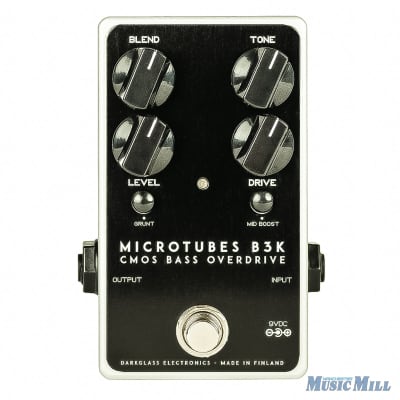

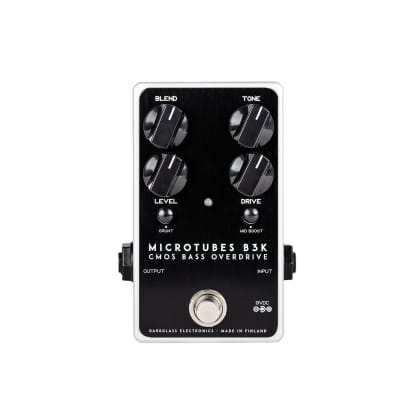

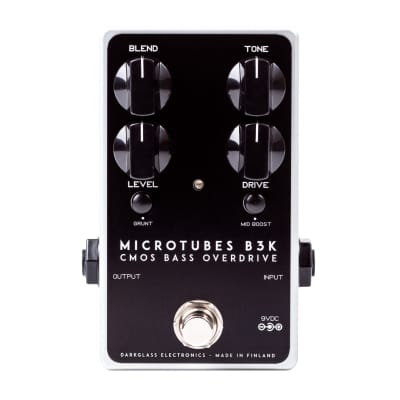

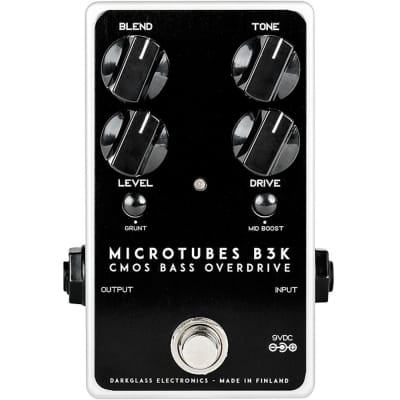

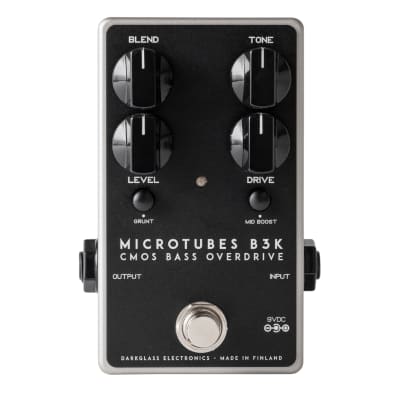

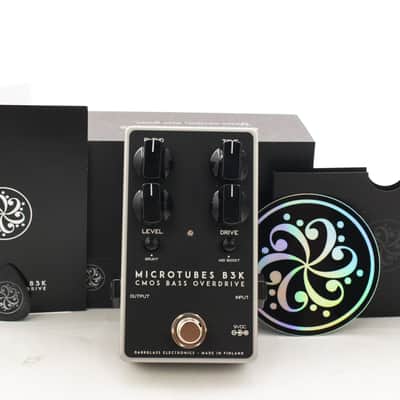

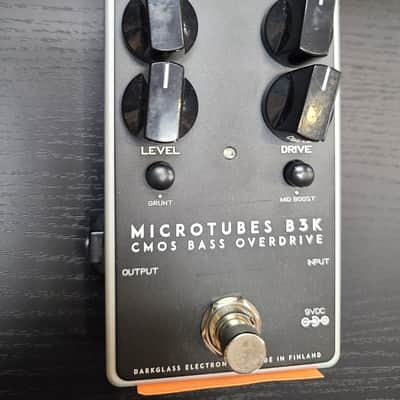

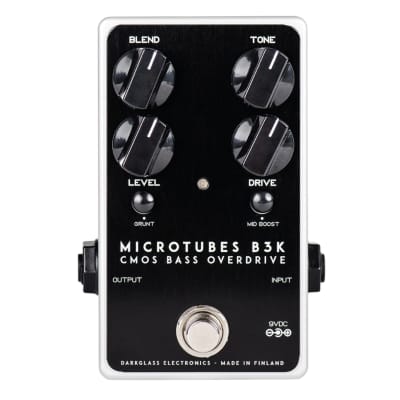

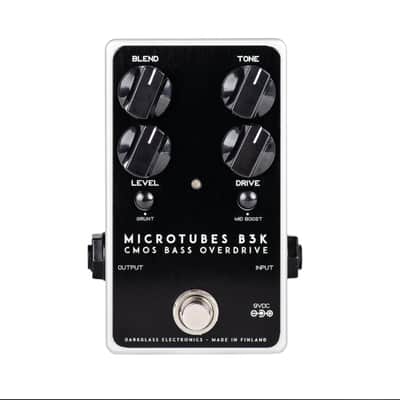

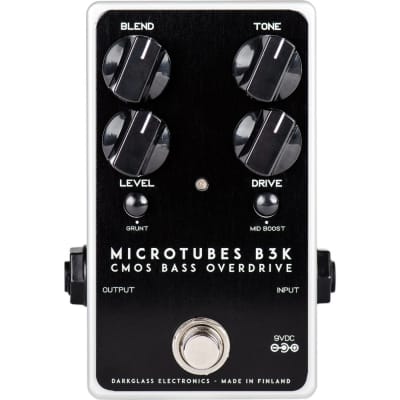

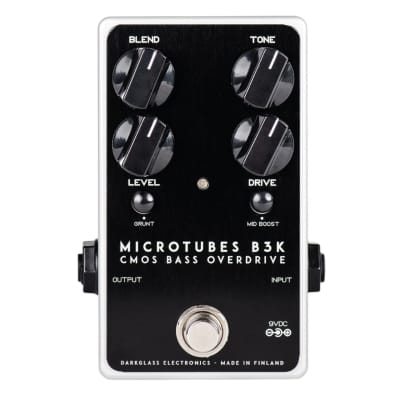

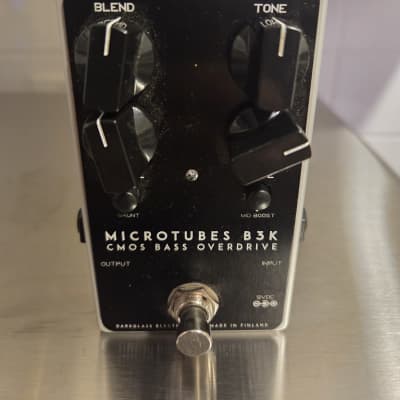

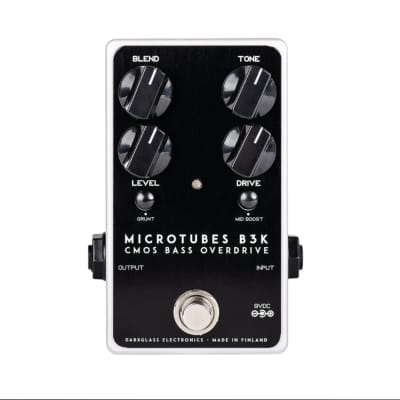

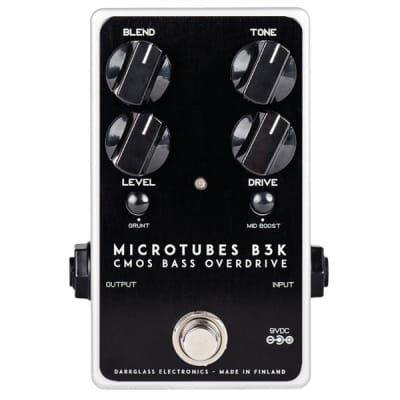

Microtubes B3K V2

The Darkglass Microtubes B3K V2 is a bass overdrive pedal with the following technical specifications and features:

- Controls:
- Blend: Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.
- Tone: Controls the high frequency content of the sound. A variable low pass filter from 3kHz (ccw) to 8kHz (cw).
- Level: Sets the volume of the overdriven signal.
- Drive: Sets the amount of saturation in the overdriven signal.
- Grunt: When engaged, provides a massive low-end boost to thicken the sound.
- Mid Boost: Gives a subtle 6dB boost from 300 Hz to 1kHz to help cut through a bit more.

- Technical Specifications:
- Input Impedance: 500kΩ
- Output Impedance: 1kΩ
- Current Consumption: ~17mA
- Voltage: 9V DC (Center Negative)
- Dimensions: Width 75 mm / 2.95″, Length 111 mm / 4.37″, Height 43 mm / 1.69″, Weight 250 g / 0.55 lb

- Power:
- Requires a regulated 9V DC adapter with a center-negative plug. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage the unit, voiding the warranty.

The Microtubes B3K V2 offers an intuitive format that delivers both brutality and clarity, providing a defined and powerful overdrive with a simple layout.
