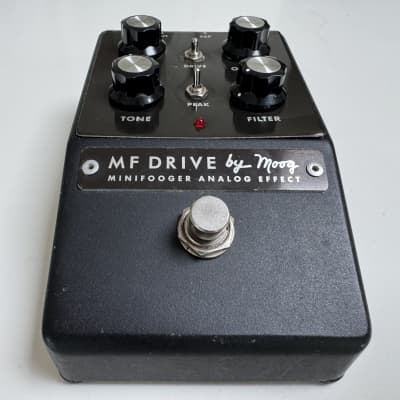

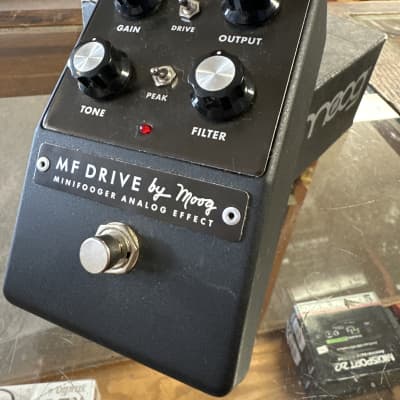

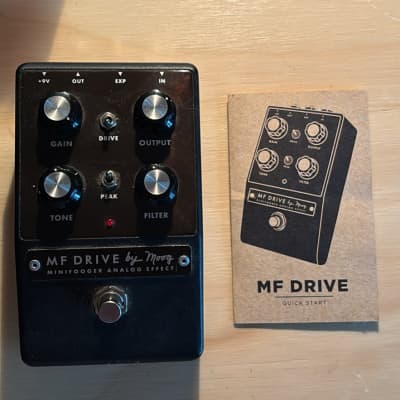

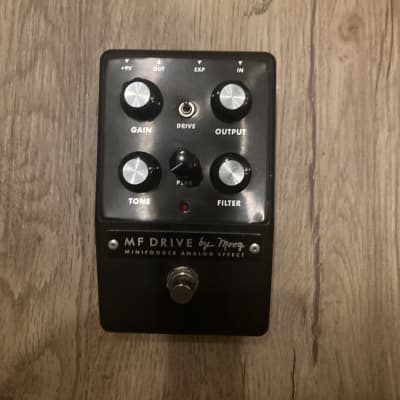

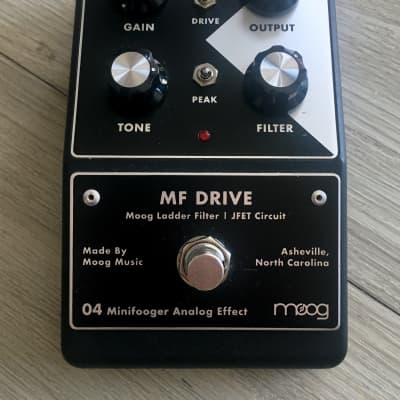

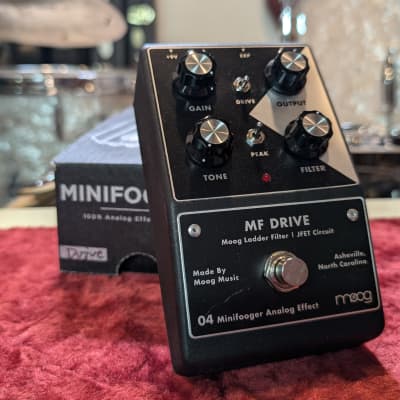

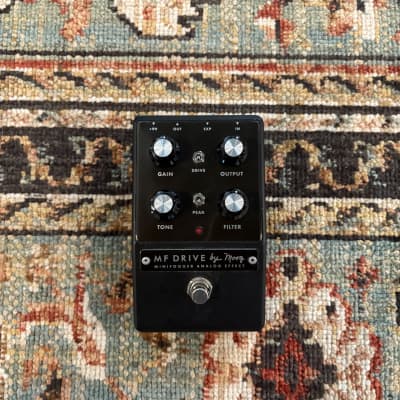

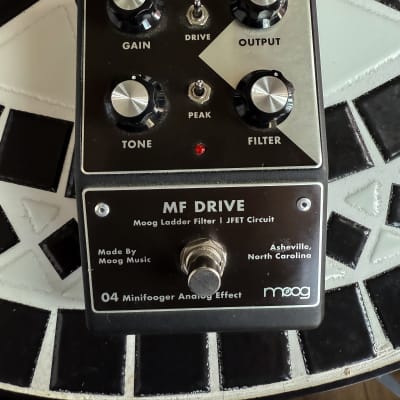

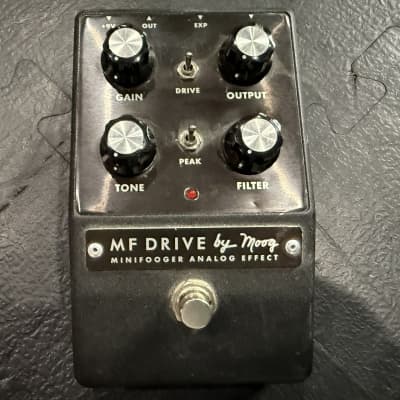

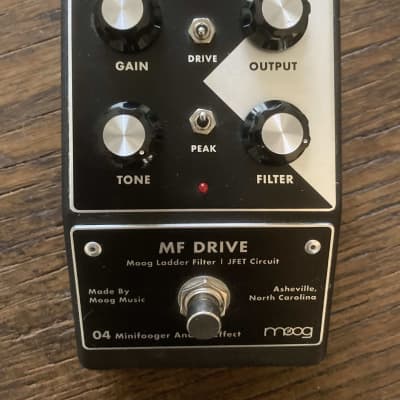

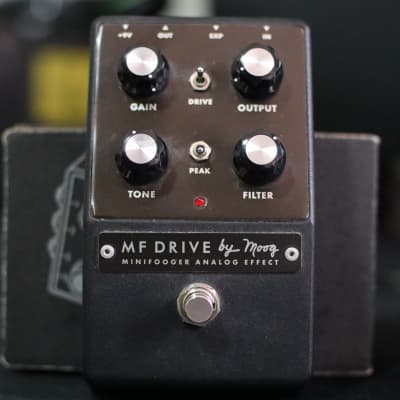

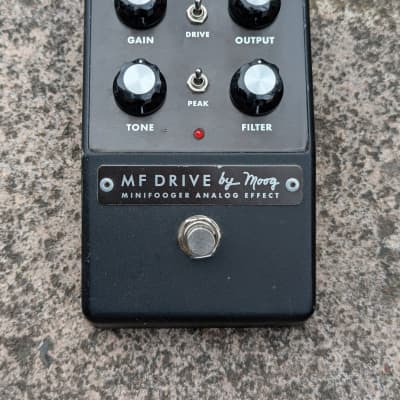

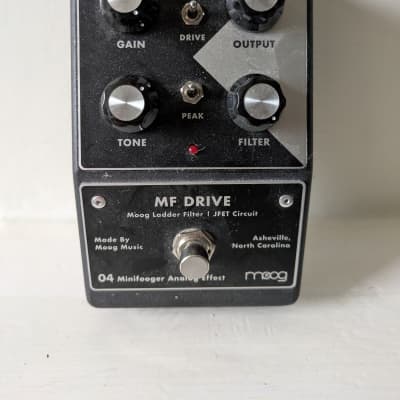

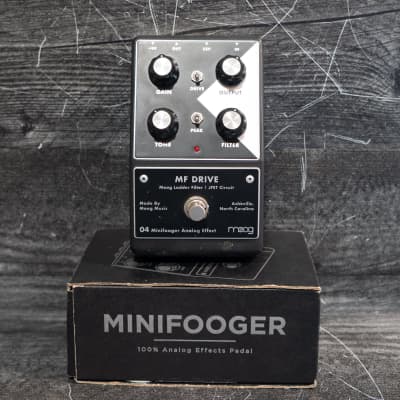

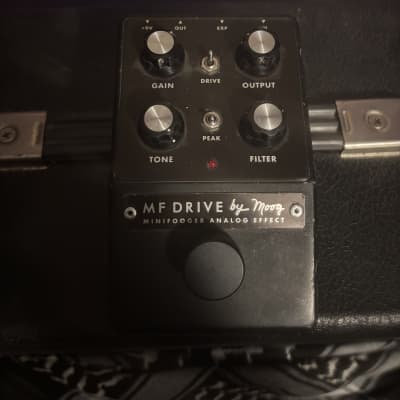

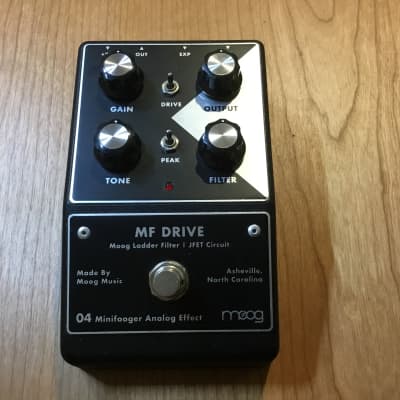

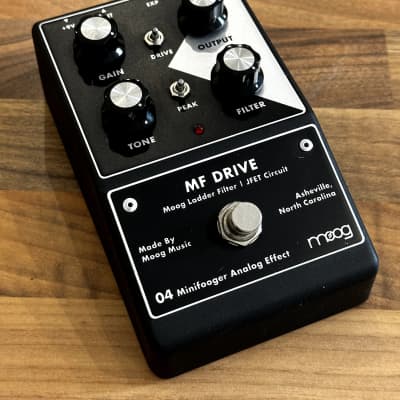

MF Drive

The Moog MF Drive is a filter-based overdrive pedal designed to provide a wide range of tones, from creamy British overdrive to cranked American-style tube amp sounds, and even fuzz tones. It features a 4-pole Moog Ladder filter, boutique FET amplifiers, and classic-sounding OTAs in its drive section, making it highly reactive to input gain and picking dynamics.

Specifications:
- Signal Path: 100% Analog
- Bypass Type: True bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast aluminum
- Dimensions: D=5.75” (14.4 cm) W=3.25” (8.3 cm) H=2.25” (5.8 cm)
- Drive Switch: Down+6.8dB to +48dB gain / Up +16dB to +57dB gain

Controls:
- GAIN: Sets the input level sent through the OTA before passing through the 4-pole Moog Ladder filter.
- DRIVE: Offers extended control over gain-staging the input of the MF Drive.
- FILTER: Interacts heavily with the Tone knob and filter Peak switch.
- PEAK: When engaged, creates a +15 dB boost at the Filter cutoff.
- TONE: A variable Low-pass/Mid-Scoop/High-pass voicing section sent through a boutique FET for color.
- OUTPUT: The output level of the MF Drive is extremely hot to offer a wide range of tones from clean to dirty.
- EXPRESSION PEDAL INPUT: Assigned to Filter cutoff, allowing for massive swells or tunable dirty wah effects.

Features:
- True Bypass
- Designed to sound and feel like a cranked tube amplifier without the noise
- Extremely reactive to input volume and picking dynamics
- American and British amplifier versatility
- Expression pedal control of the filter creates a tunable, dirty wah
- Designed to perform with any guitar, amp, or bass guitar configuration
