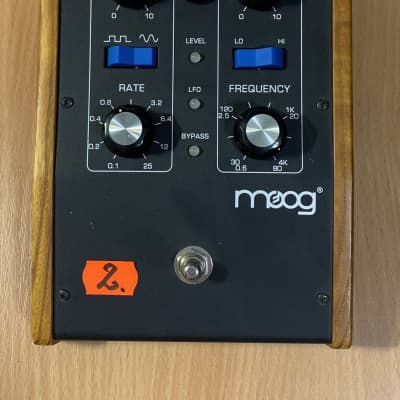

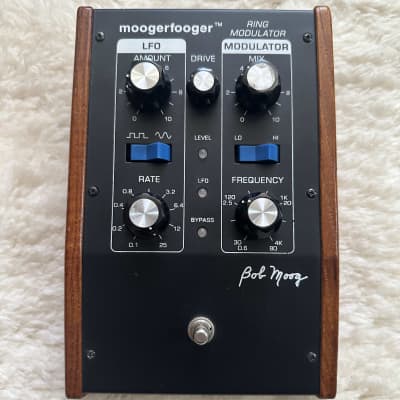

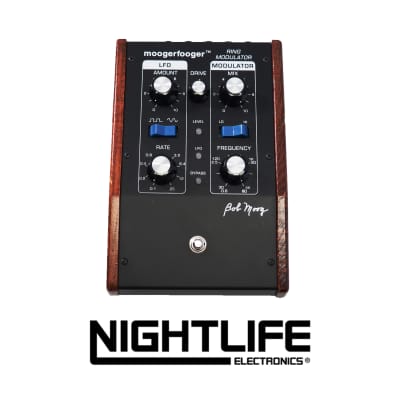

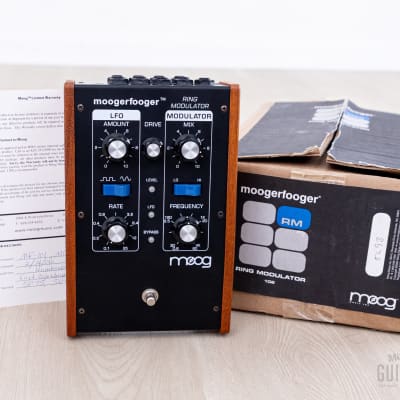

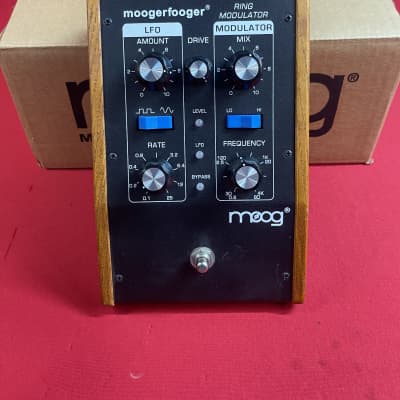

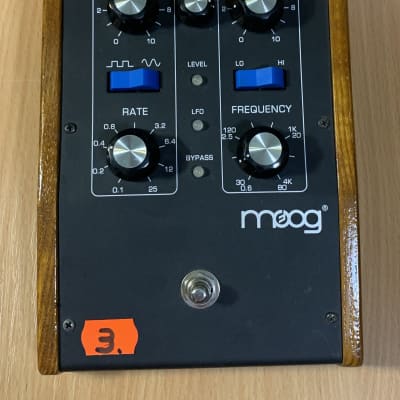

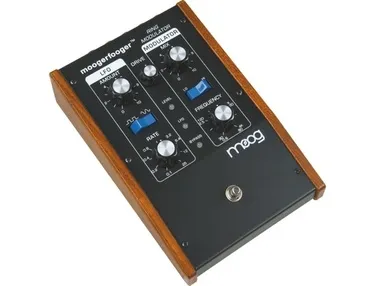

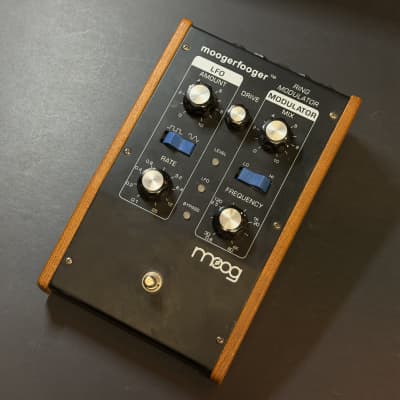

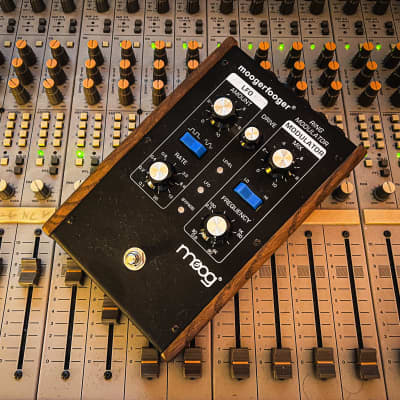

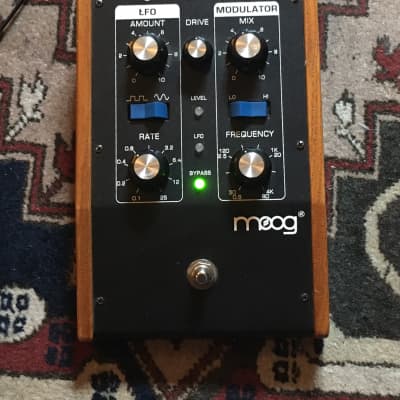

Moogerfooger MF-102 Ring Modulator

The Moogerfooger MF-102 Ring Modulator by Moog is an analog effects module that integrates three functions: a ring modulator, a voltage-controlled carrier oscillator, and a voltage-controlled dual-waveform Low Frequency Oscillator (LFO). The MF-102 is designed to work with any sound source and offers a wide range of sonic manipulations, from organic tremolo effects to chaotic and transformative resonations.

Key Specifications:
- DRIVE: Adjusts audio input gain with a three-color level LED indicator
- MIX: Crossfades continuously from unmodulated to modulated audio
- BYPASS: On/Bypass switch with a two-color LED indicator
- FREQUENCY: Varies the carrier oscillator frequency from 2Hz to 4kHz
- LO / HI: Selects between the low frequency carrier range (2Hz to 130Hz) and the high frequency carrier range (60Hz to 4,000Hz)
- LFO RATE: Variable from 0.1Hz to 25Hz with indicator LED
- LFO AMOUNT: Determines how much the LFO modulates the carrier oscillator

The MF-102 also features multiple CV/Expression Pedal inputs and outputs, allowing simultaneous manipulation and control of each parameter while providing modular interconnectivity with other Moogerfooger analog effects.

The pedal is designed to be a versatile and powerful tool for musicians and sound designers, offering a broad spectrum of creative possibilities and sonic exploration. It is a direct descendant of Moog modular synthesizers and is built with state-of-the-art all-analog circuitry, designed and built under Bob Moog's personal direction.
