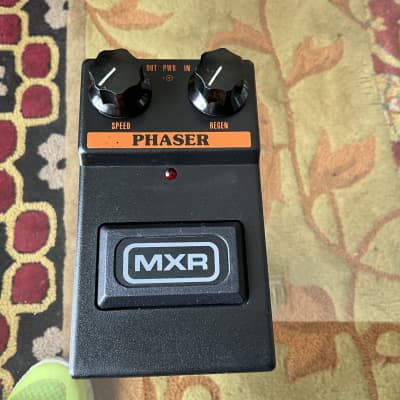

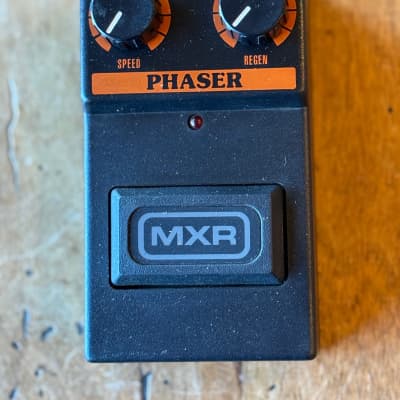

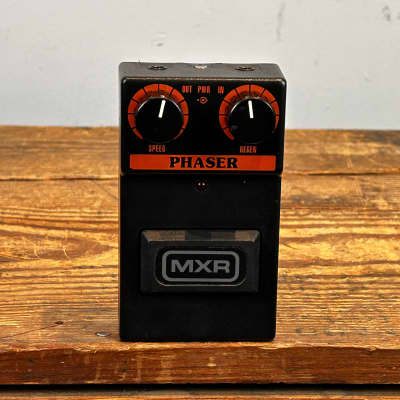

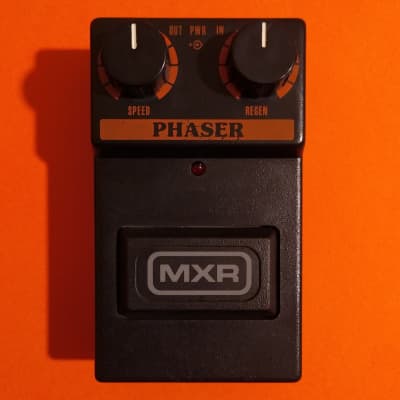

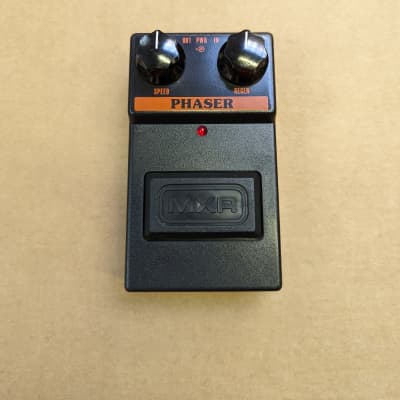

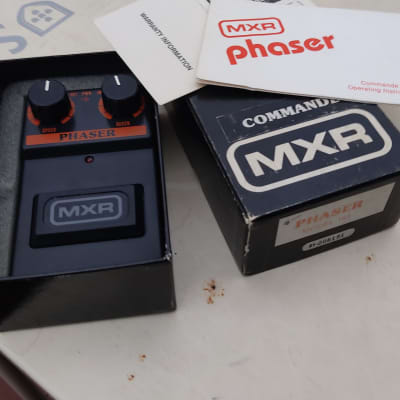

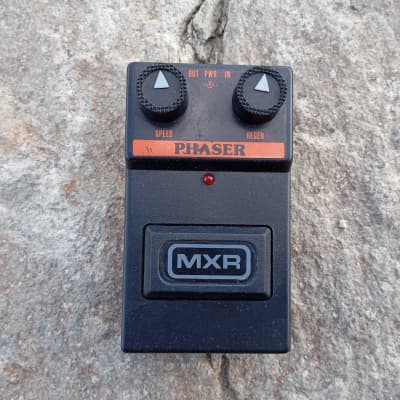

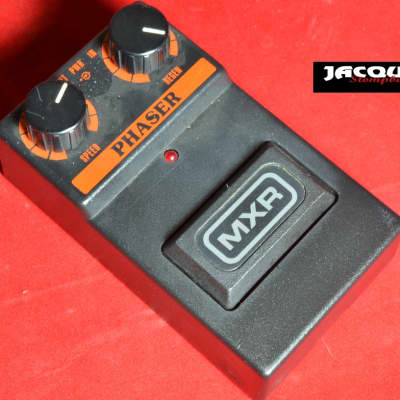

M-161 Commande Phaser

The MXR M-161 Commande Phaser is a phase shifter pedal designed to deliver versatile modulation effects for guitarists. Here are the technical specifications and details for this pedal:

- Model: M-161 Commande Phaser
- Series: Commande
- Type: Phaser pedal
- Controls:
- Speed: Controls the speed/rate of the LFO wave that controls the effect
- Regen: Sets the amount of affected signal fed back into the effect for a stronger effect
- Maximum Input Level: +8 dBV
- Maximum Output Level: +8 dBV
- Input Impedance: 800 k ohms
- Output Impedance: 470 ohms
- Equivalent Input Noise: -118 dBV
- Bandwidth: Greater than 20 kHz
- Sweep Rate: 0.1 - 9 Hz
- Power Requirements: 9 volts battery, 4 mA typ.

The MXR M-161 Commande Phaser is known for its ability to produce a wide range of phase shifting effects, offering guitarists the flexibility to create unique sounds for various musical styles and genres. With its intuitive controls and solid construction, this pedal is suitable for both studio recording and live performances.
