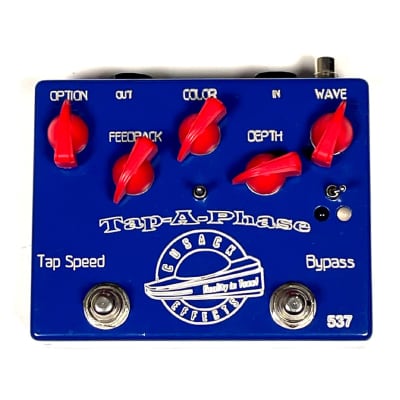

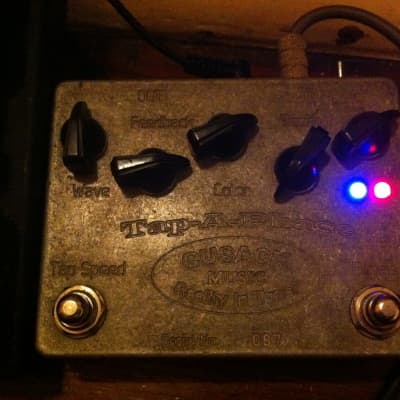

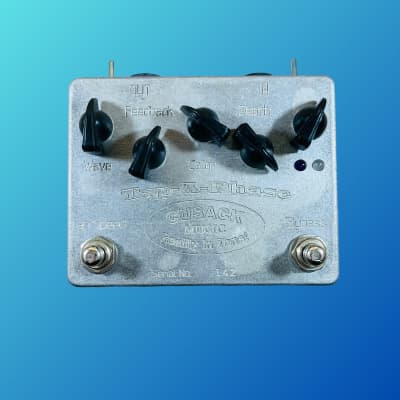

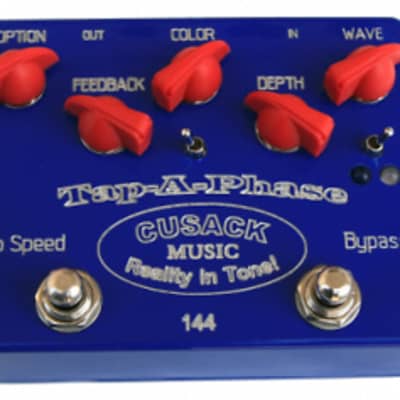

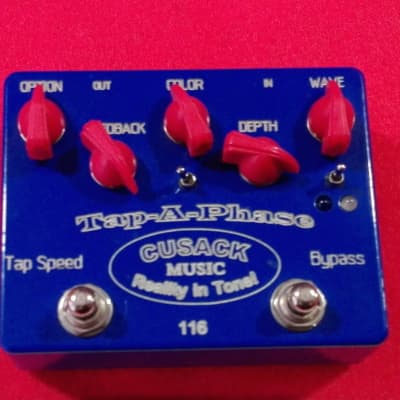

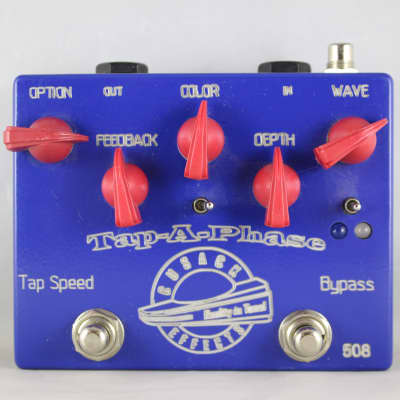

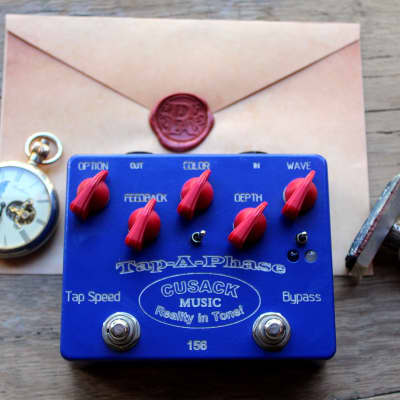

Tap-A-Phase

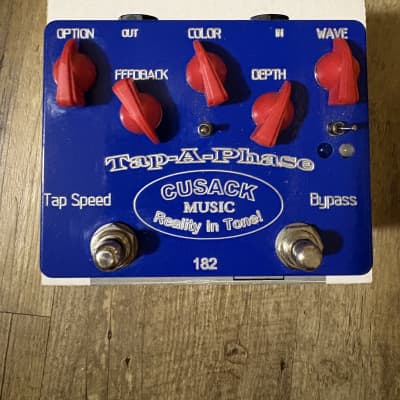

The Tap-A-Phase by Cusack Music is an analog phaser with built-in tap tempo. It features the following technical specifications and functionality:

- Dimensions: 4.7" wide x 3.1" deep x 1.9" height
- Option Knob: Controls tap divide, fade-in, and brake speed
- Feedback: Controls the amount of feedback
- Color: Controls the center frequency of the phasing
- Depth: Controls the depth of the effect
- Wave: Selects one of 8 waveforms in the current bank, with a total of 24 waveforms across 3 banks
- Bank Switch: Selects between banks A, B, and C
- Feedback-Vibe-Norm Switch: Selects the function of the pedal
- Mode Jumper (Internal): Preset and Live modes
- Tap Speed: Tap twice to set the tempo, also functions as a modified "brake" control
- Bypass: Switch to change from bypass to engaged
- IN/OUT: Input and output jacks
- DC Power Jack: Standard center negative 9V DC supply
- Power Consumption: ~15mA
- Status LED (Red/Green): Indicates the status of the effect
- Tempo LED (Blue): Provides a visual view of the tempo and waveform
- External Tap: RCA jack for external tap input or output
- Operation: Adjustable settings, saving settings, depth setting, and internal volume control

The Tap-A-Phase offers programmable features for each waveform independently and is designed to provide a versatile and customizable phasing experience.
