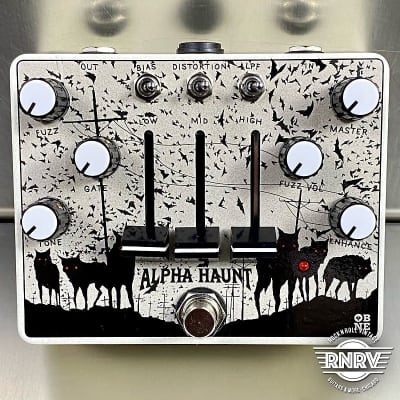

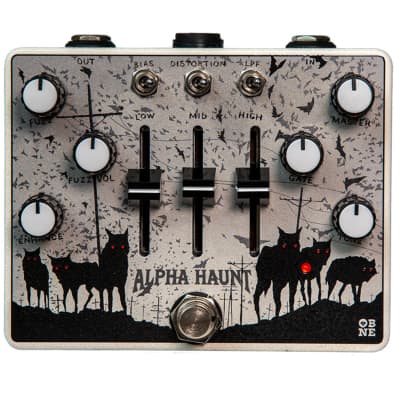

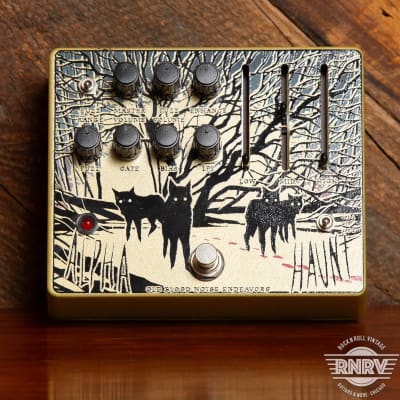

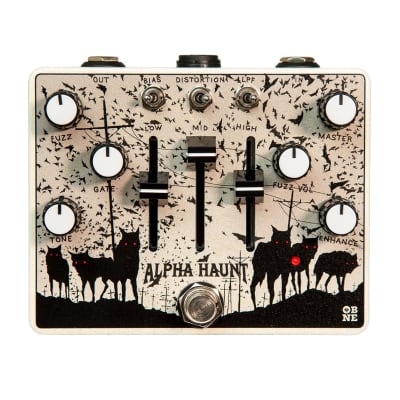

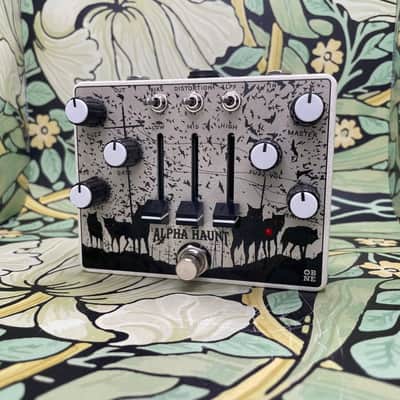

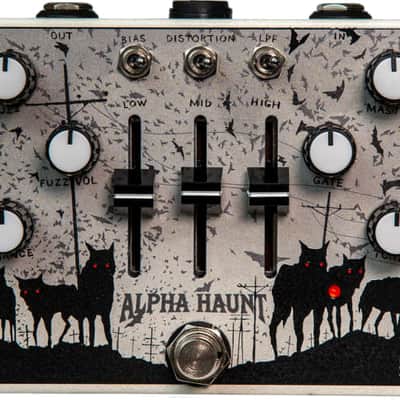

Alpha Haunt

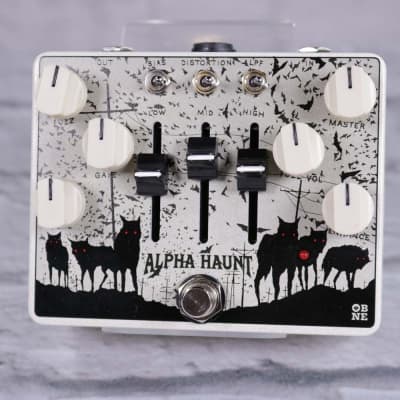

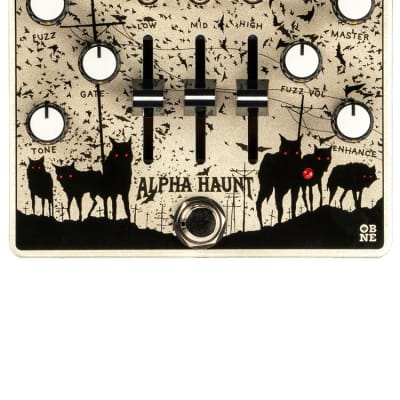

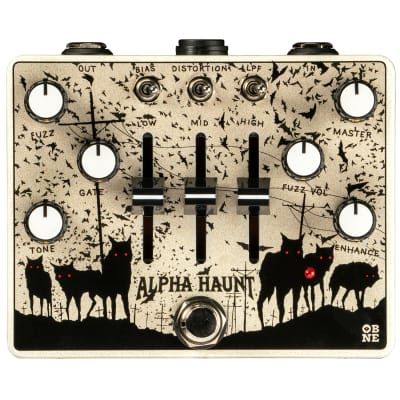

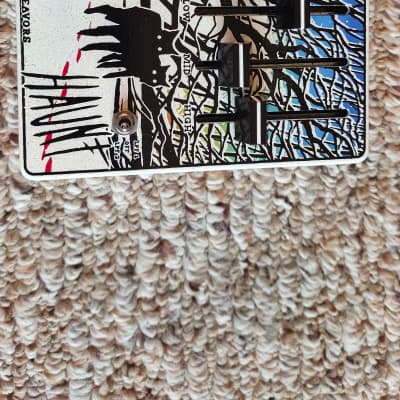

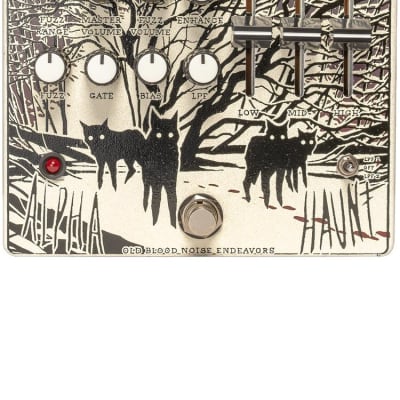

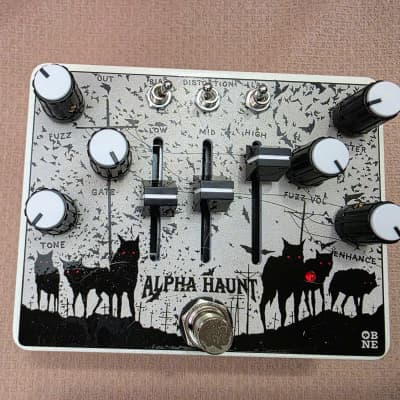

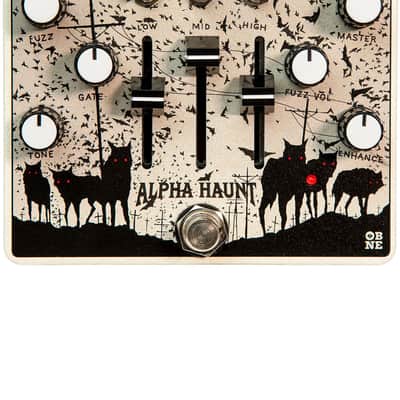

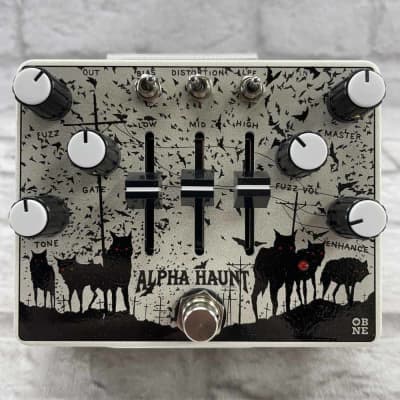

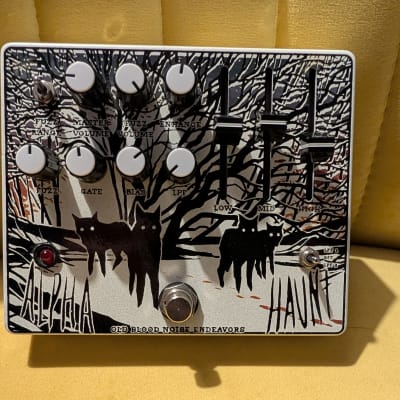

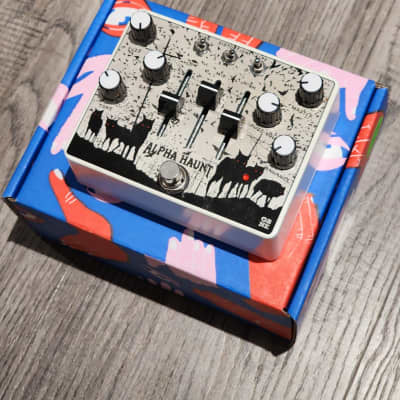

The Alpha Haunt by Old Blood Noise Endeavors is a highly versatile and feature-rich fuzz pedal designed for guitarists seeking a wide range of fuzz tones. The pedal offers extensive control and flexibility, allowing users to achieve both softer overdrive and aggressive fuzz sounds. The following technical specifications and features are available:

- Controls:
- Fuzz: Sets the gain of the fuzz
- Distortion toggle: Sets the fuzz range
- Gate: Sets the compression of the fuzz, also increasing the amount of fuzz as it's turned up
- Bias toggle: Further controls the fuzz's gating character
- Tone: Sets the main voice of the fuzz
- LPF toggle: Sets the range of tone
- Fuzz Vol: Sets the output volume of the fuzz
- Enhance: Sets the volume of an additional boost circuit to blend in full- frequency un-fuzzed sound alongside the fuzz
- Master: Sets the overall volume
- Low, Mid, and High: Sets the overall EQ
- Soft-touch bypass footswitch for true bypass and minimal switch noise

- Additional Features:
- Switchable fuzz range, bias, and tone control voices for further options
- 3-band active master EQ sliders for precise tonal control over lows, mids, and highs
- Clean blend via Enhance control to retain string clarity and low-end response
- Switchable Low-Pass Filter
- Requires 9V DC center negative 2.1mm jack power supply capable of 40mA (not included)

- Dimensions and Weight:
- Weight: 0.453 kg
- Dimensions: 14.4 × 8.2 × 7.8 cm

The Alpha Haunt is designed to provide guitarists with a wide array of fuzz tones, from sustaining and gated to mid-scooped or boosted, bright, dark, warm, chimey, and more. Its interactive controls and extensive feature set make it a versatile tool for crafting unique and diverse fuzz sounds suitable for various musical styles and use-cases.
