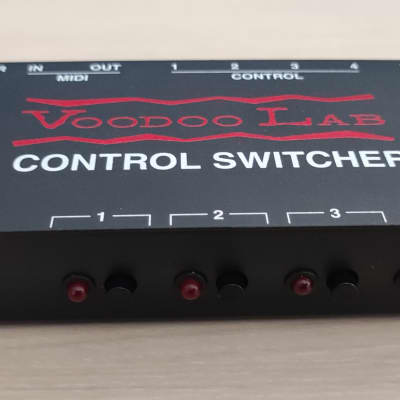

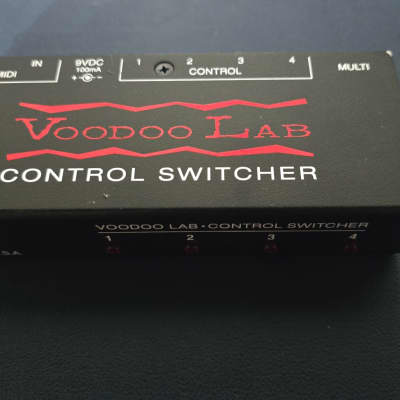

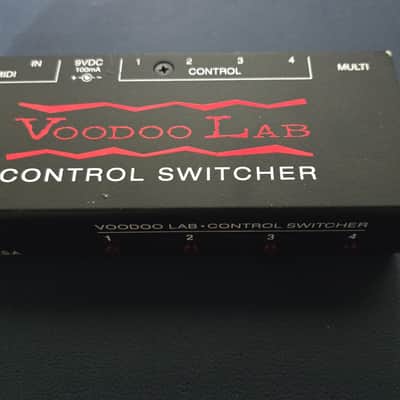

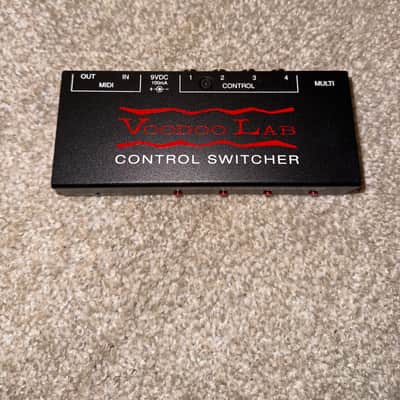

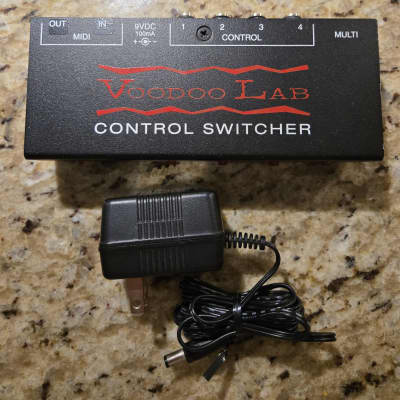

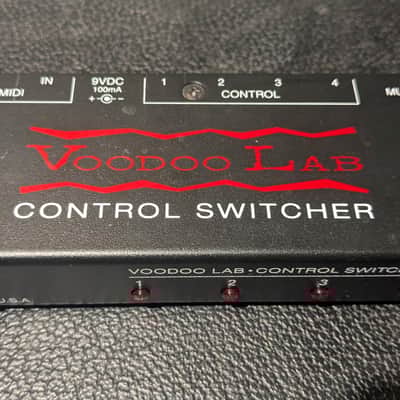

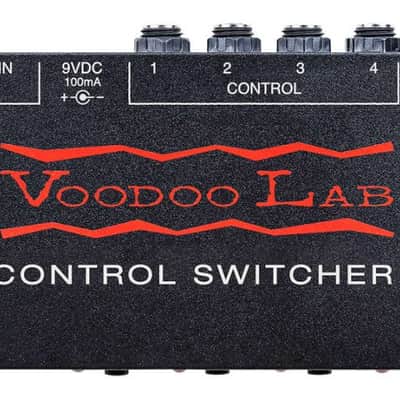

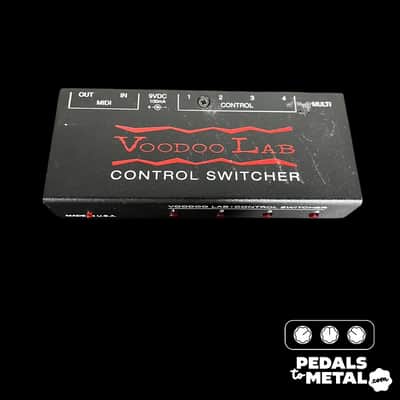

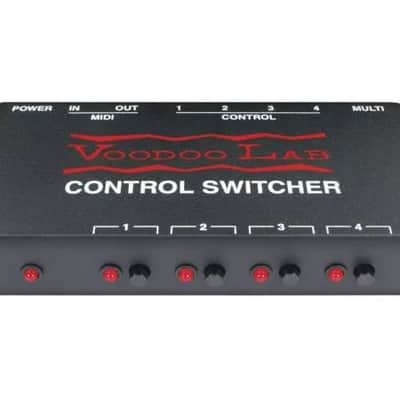

Control Switcher

The Voodoo Lab Control Switcher is a versatile MIDI amp function controller designed to provide instant MIDI programmability for controlling all footswitchable amp functions, including channel switching, reverb, boost, EQ, and more. Here are the technical specifications and features:

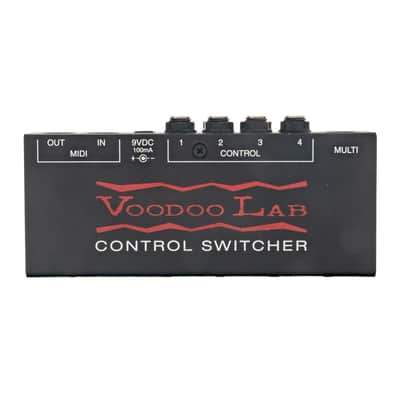

- Inputs/Outputs:
- 1/4” control jacks (4): Accesses amp switch functions
- 5-Pin MULTI DIN connector: For amps with multi-pin cable control jacks
- MIDI In: Accepts MIDI commands and provides phantom power
- MIDI Out: Passes MIDI commands to other MIDI devices

- Controls/Switches:

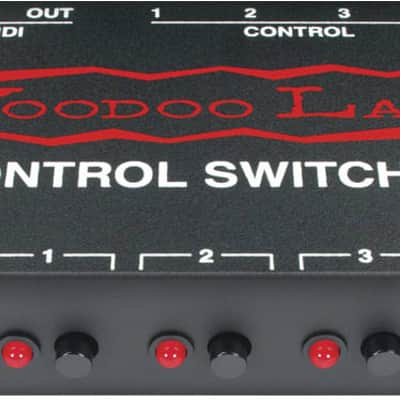

- LED function buttons (4): Switches functions on/off, saves programs

- Power Requirements:
- 9-12VDC or 9VAC at 100mA
- 5.5mm x 2.1mm barrel connector, center negative polarity

- Physical:
- Dimensions: 6.2" x 3.1" x 1.2" (157 x 79 x 30 mm)
- Weight: 9.6 oz. (272g)

- Warranty:
- 5-year warranty in North America. Other regions contact your country's distributor for warranty details.

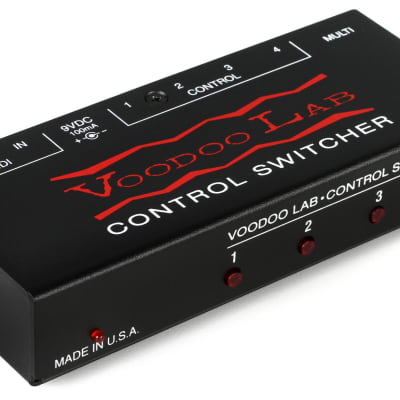

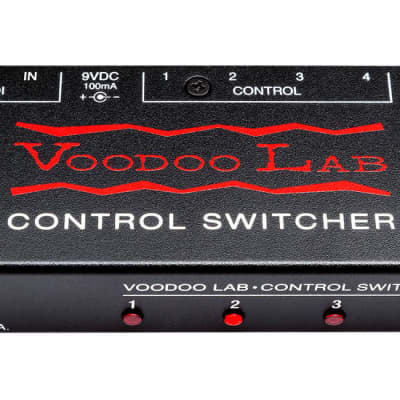

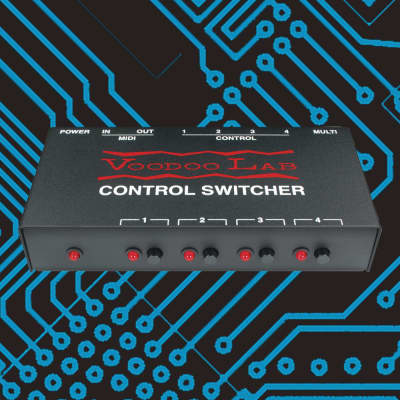

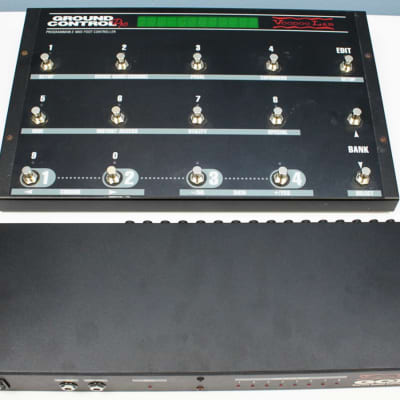

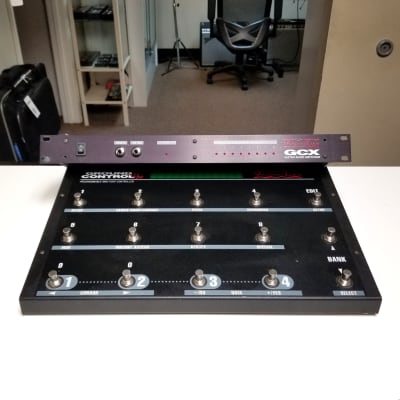

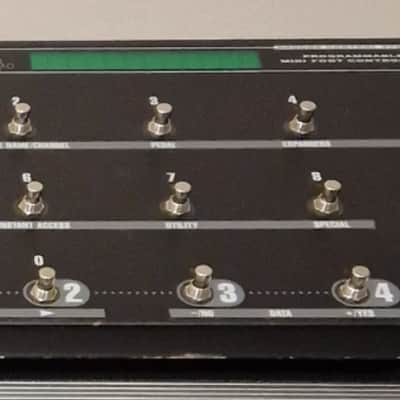

The Control Switcher features 4 completely isolated relays with front panel instant access buttons, separate 1/4” mono outputs, and a multi-DIN connector. It is compatible with the Ground Control Pro or any MIDI controller and can be conveniently powered from any Pedal Power 9VDC output. Additionally, it is phantom powered by GCX or Pedal Switcher via MIDI cable.

The device is hand-built in the U.S.A. and is compact enough to mount behind an amp, inside a rack, or on a pedalboard.
