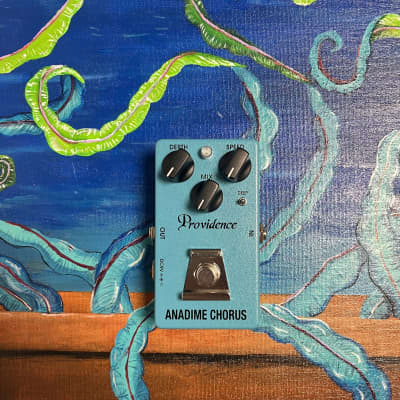

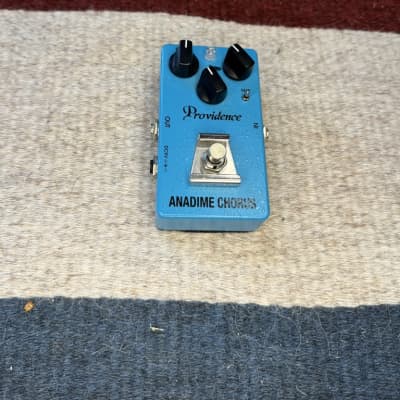

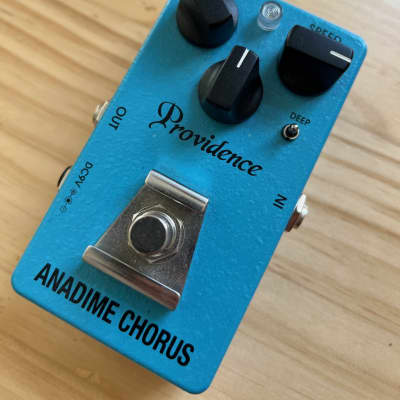

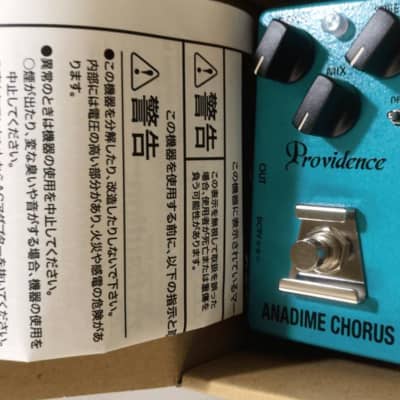

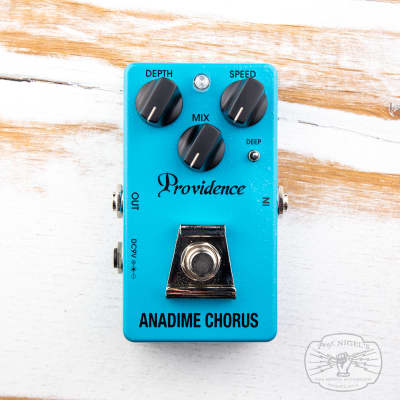

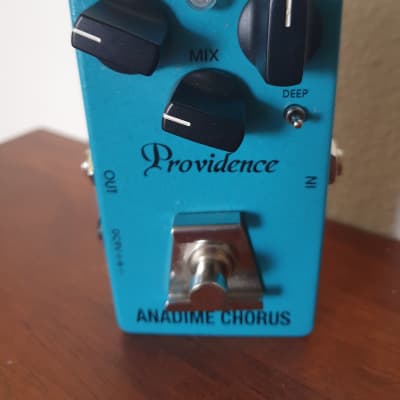

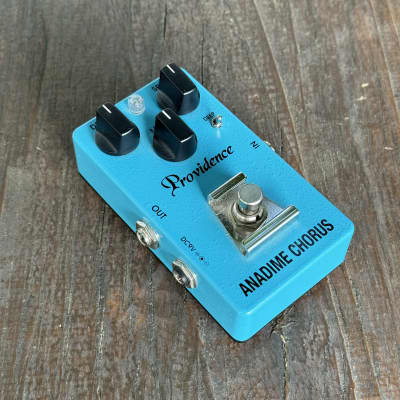

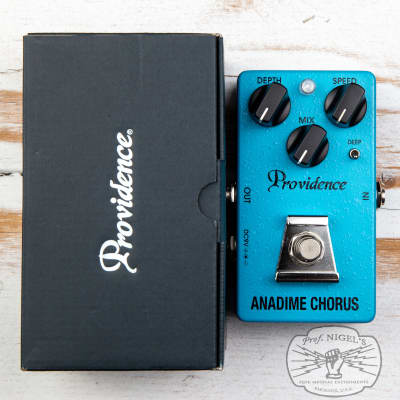

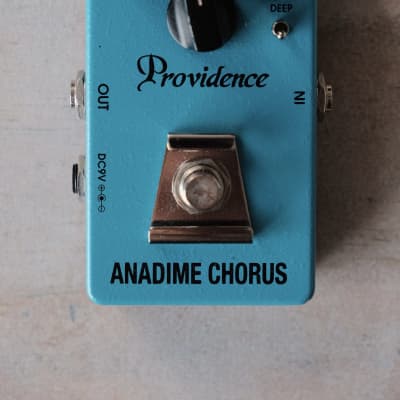

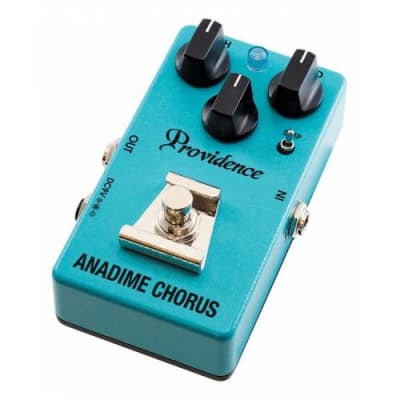

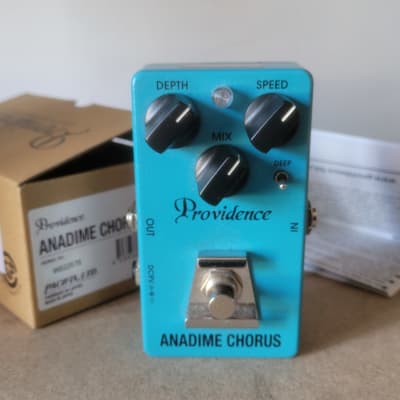

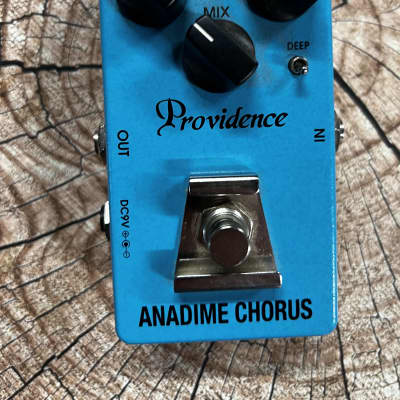

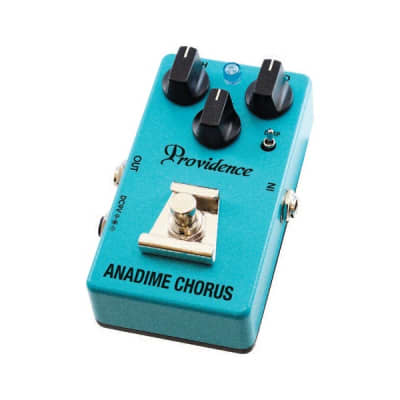

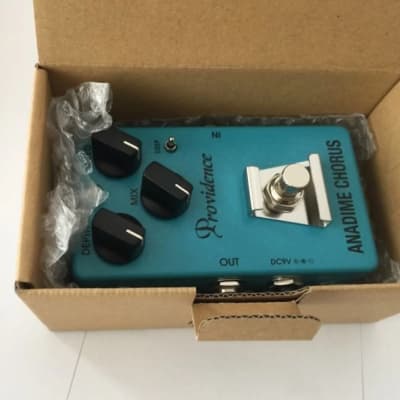

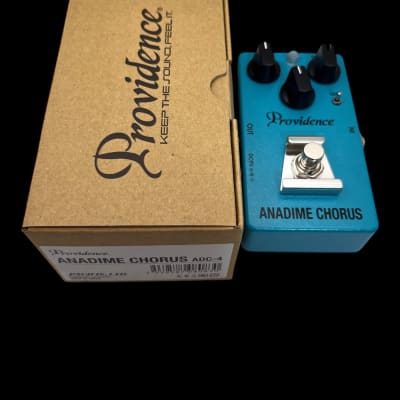

Anadime Chorus ADC-4

The Anadime Chorus ADC-4 by Providence is a versatile analog chorus effect pedal designed to deliver a rich and warm sound. It utilizes a BBD (Bucket Brigade Delay) device to achieve a traditional, warm, and full analog chorus effect. Despite producing a mono output, the pedal creates a spacious sense of width and depth, as well as warmth and thickness characteristic of analog choruses.

Key Features:
- Multi-function LED: Indicates the pedal's on/off status and provides visual battery power monitoring. When the battery voltage drops below 7 volts, the LED dims, signaling the need for battery replacement.
- S.C.T Circuit: Incorporates a Single Contact True Bypass circuit, ensuring unprecedented signal quality and reliability by minimizing the instrument signal's passage through switch contacts when bypassed.
- D.C.G. Circuit: Features a Double Contact Grounding Circuit to maximize sonic quality by grounding the plug inserted into the output jack at two contact points, reducing the possibility of intermittent contact.

Specifications:

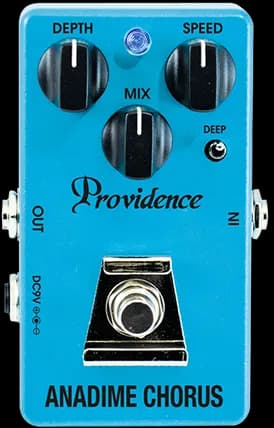

- Controls: Depth, Speed, Mix, Deep (3-way mode switch)
- Jacks: Standard 1/4-inch phone jacks (Input/Output), DC9V Input jack (AC adaptor jack)
- Power: 9V battery (1), AC adaptor
- Power Consumption: DC9V approx. 26mA (with effect turned ON)
- Size: 115(D) X 73(W) X 50(H)mm
- Weight: Approx. 250g (without battery)

The pedal's 3-way mode switch allows for the creation of a variety of sounds, providing variations in the perceived dimensional depth. The Anadime Chorus ADC-4 is suitable for a wide range of applications, from moody arpeggios to powerful riffs and solos, making it an ideal choice for guitarists seeking a classic analog chorus effect.
