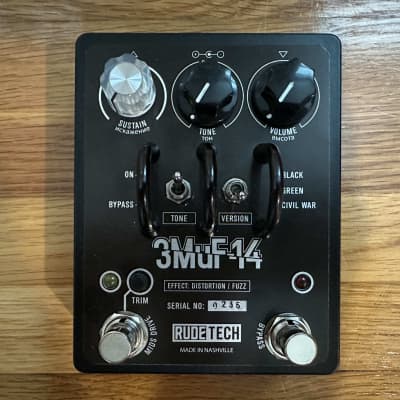

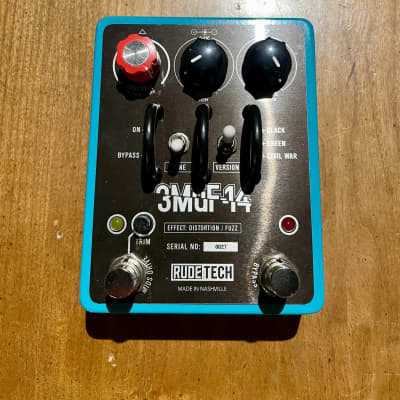

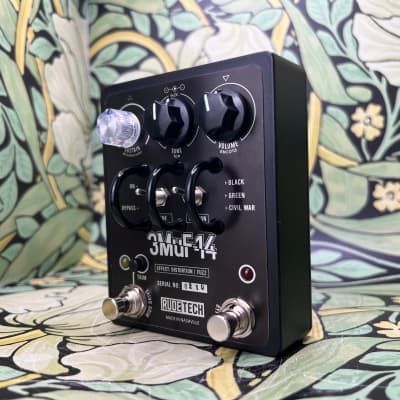

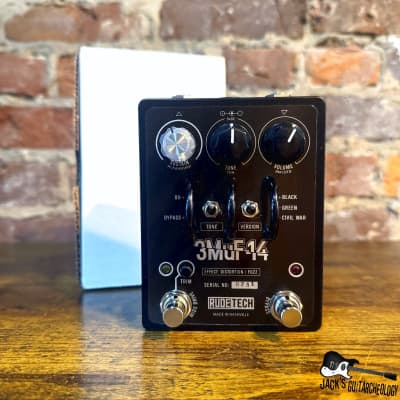

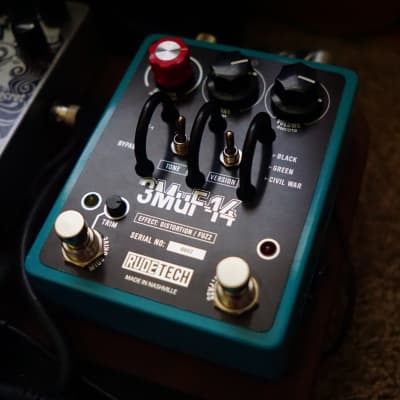

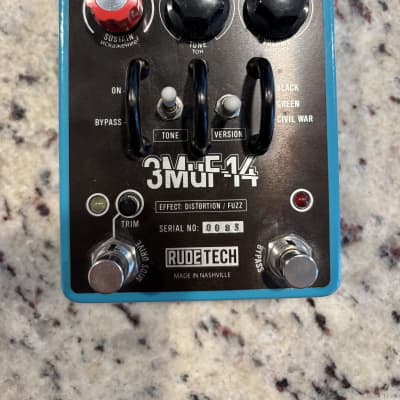

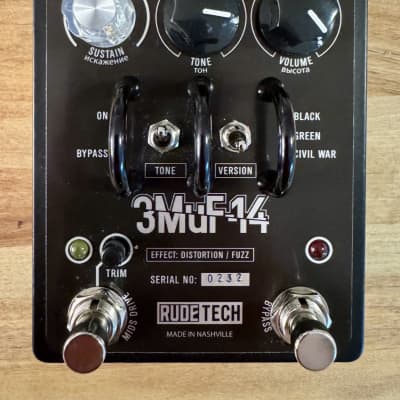

3MuF-14

The 3MuF-14 by Rude Tech is a versatile distortion/fuzz pedal designed for guitar effects. It features a 3-way selectable muff circuit, allowing users to choose from Black, Green, and Civil War circuits. Additionally, it includes a tone bypass toggle and a built-in mids overdrive, providing flexibility in shaping the desired sound. The pedal also incorporates internal trim pots to tweak the mids drive voice, allowing for further customization.

Furthermore, the 3MuF-14 is constructed with heavy-duty materials, including a metal faceplate, aluminum toggle guards, and individually numbered and signed units. It also features socketed op amps and transistors, enabling users to experiment with different components to customize the pedal to their preferences.

The internal features of the pedal include socketed components, allowing users to swap clipping-stage transistors and experiment with various options such as 5889 for slightly more gain, 2N222 for a choked-out overdrive sound, and BC547 for a more vintage sounding distortion. The pedal also includes a socketed Mids Drive op-amp and offers flexibility in choosing the drive level and tone control for the Mids Drive.

Overall, the 3MuF-14 by Rude Tech is a high-quality, customizable distortion/fuzz pedal suitable for a wide range of guitar applications, providing users with the ability to achieve diverse and customizable tones.
