Eclipse

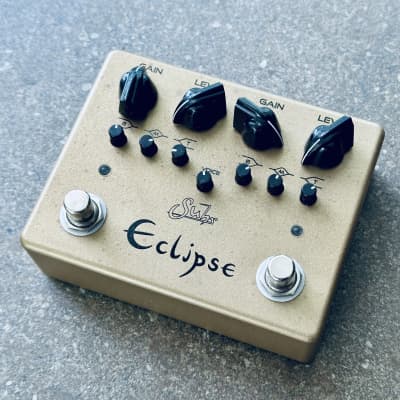

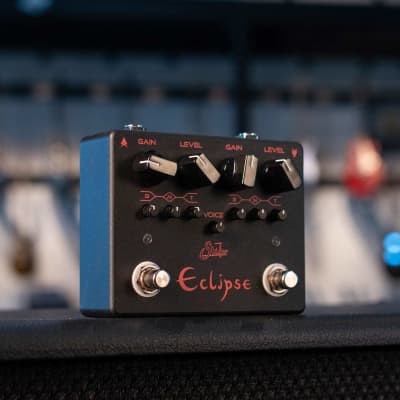

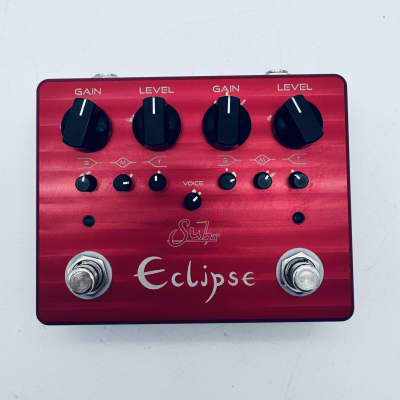

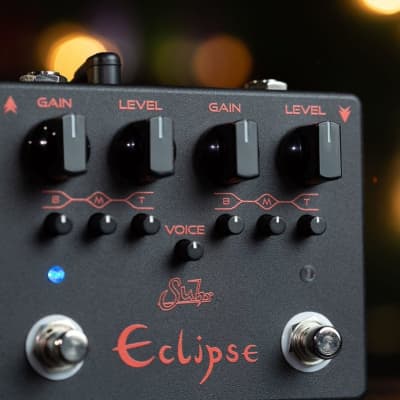

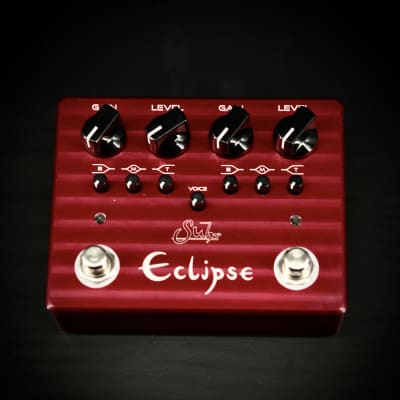

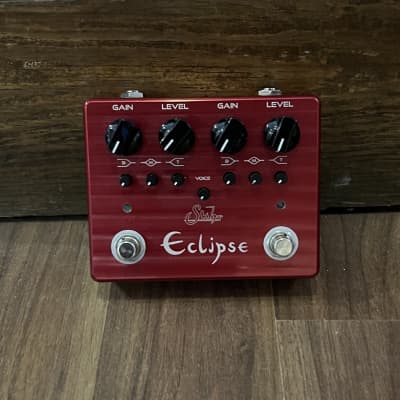

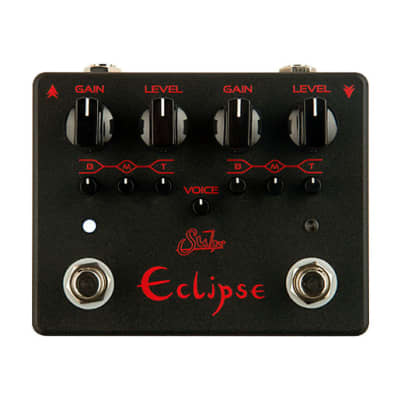

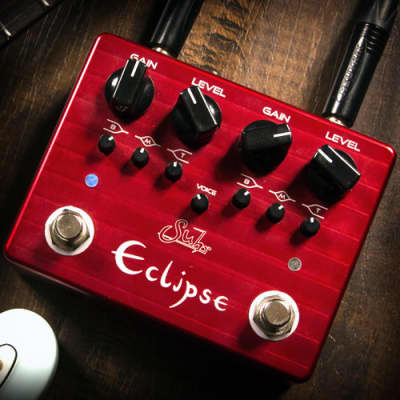

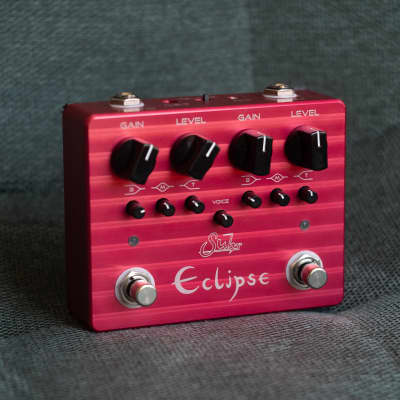

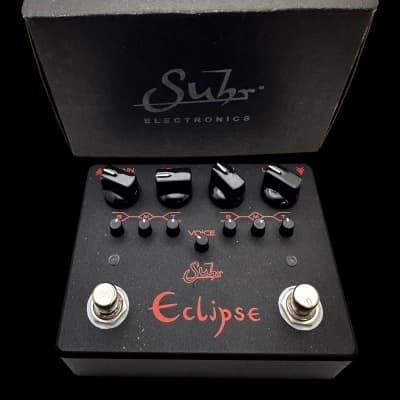

The Suhr Eclipse is a versatile, no-compromise, dual-channel overdrive/distortion pedal that offers a wealth of warm, organic amp-like tones in a compact form factor. Its powerful and intuitive two-channel circuit design allows each channel to be completely independent, featuring its own Gain, Level, and 3-Band passive EQ, similar to a channel-switching amplifier. Both channels can be voiced independently to accommodate various playing needs.

The pedal's features include:
- Dual Channel Overdrive/Distortion
- Independent Gain, Level, and 3-Band passive EQ controls
- Global voice control
- True Bypass
- Billet aluminum enclosure

Technical Specifications:
- Input Impedance: 1M Ohm
- Output Impedance: 100 Ohm
- Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
- Operating voltage: 4V to 18V (nominal 9V)
- Maximum Voltage: 20Vdc
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: 12mA min, 15.5mA max
- Estimated Battery Life: 25 - 32 hours continuous use
- Dimensions: 4.875”(W) x 3.875”(D) x 1.375”(H)
- Weight: 1.13lb
- FX Link Connector: ⅛” TRS jack
- FX Link Max Voltage: 3.3Vdc
- Shield -> Tip: Activate Channel 2 (Red LED)
- Shield -> Ring: Activate Channel 1 (Blue LED)
- ROHS Compliant: Yes

The Suhr Eclipse is designed and assembled in the USA and is available at a street price of $250.00.
